Description

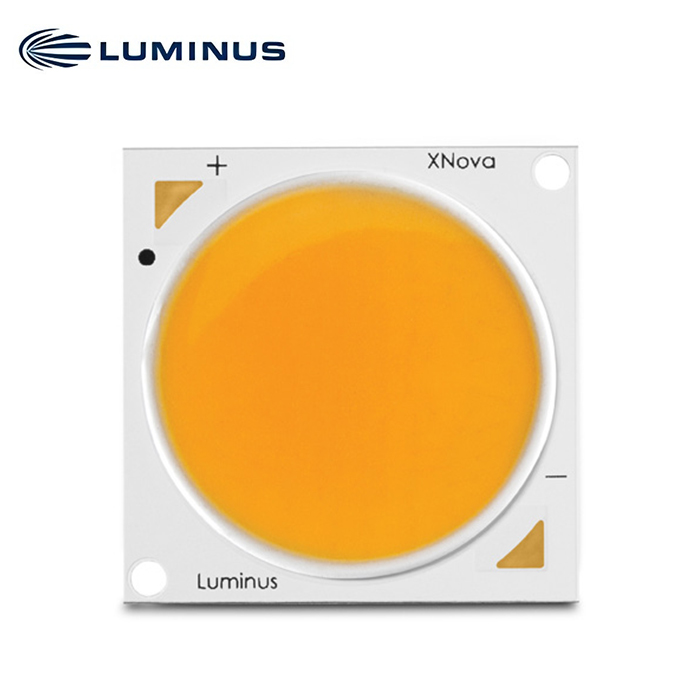

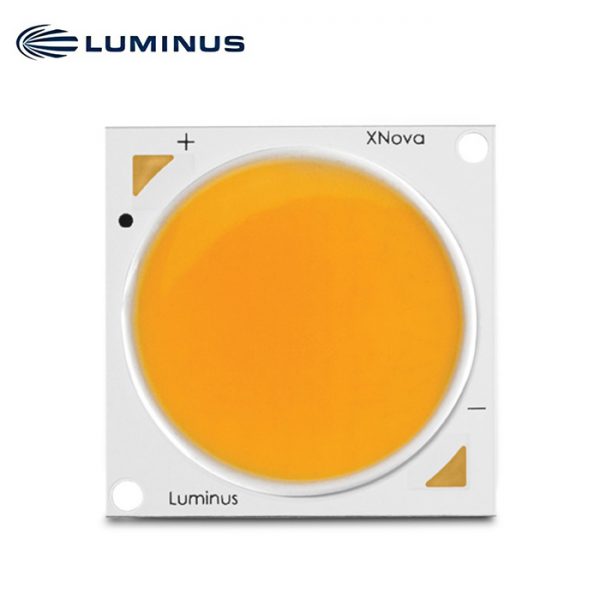

Generation 2 CXM-22 COB Arrays White LED
Luminus Chip-on-Board (COB) LED series offers a complete lighting class solution designed for high performance illumination applications. The selection covers a wide lumen range from less than 400lm to over 25,000lm, all major color temperatures and can deliver color rendering greater than 95 at 2700K and 3000K and R9 greater than 90. These breakthroughs allow illumination engineers and designers to develop beautifully lit spaces without sacrificing efficacy, brightness and overall quality.
Features
• High lumen output and efficacy typical
• Over 5,900 lm, 132 LPW @ 3000K, 85ºC
• Over 6,500 lm, 150 LPW @ 5000K, 85ºC
• CCT 2700K, 3000K, 3500K, 4000K, 5000K and 6500K
• CRI Ra 80 or 90 min. in all colors (except 6500K)
• R9 up to 90 min. CRI 98 typical in 2700K, 3000K, 3500K and 4000K
• 3 SDCM color binning accuracy
• Excellent optical emission uniformity and color over angle consistency
• Exceptional long term color stability
• Package thermal conductivity more than the industry average
• Environmentally friendly: RoHS and REACH compliant
Applications
• Architectural and Specialty
• Street Lighting
• Parking Lot and Area Lighting
• Tunnel Lighting
Color Temperature, CRI and R9 Values
| Color Temperatures | XX Value | CRI | R9 |
| 3000K, 3500K, 4000K, 5000K, 6500K | 70 | >70 | – |
| 2700K, 3000K, 3500K, 4000K, 5000K, 6500K | 80 | >80 | >0 |
| 2700K, 3000K, 3500K, 4000K | 90 | >90 | >50 |
| 2700K, 3000K | 95 | >95 | >85 |
CXM-22 Part Numbers (Typical Flux)
The following tables describe products with typical flux and minimum flux measured at 1,280mA and specified at Tj = 85ºC. The values at 25ºC are calculated and shown for reference only.
| Output Flux (lm) | Reference | Color
Rendering Index |
Ordering Part Number | ||
| CCT | Typ.
(85ºC) |
Min.
(85ºC) |
Typ.
(calculated) (25ºC) |
CRI (min.) | 3-step MacAdam Ellipse |
| 2700K | 5,620 | 5,225 | 6,185 | 80 | CXM-22-27-80-36-AC10-F3-3 |
| 4,390 | 4,085 | 4,830 | 90 | CXM-22-27-90-36-AC10-F3-3 | |
| 4,130 | 3,840 | 4,545 | 95 | CXM-22-27-95-36-AC10-F3-3 | |
| 3000K | 6,040 | 5,620 | 6,645 | 70 | CXM-22-30-70-36-AC10-F3-3 |
| 5,940 | 5,645 | 6,535 | 80 | CXM-22-30-80-36-AC10-F3-3 | |
| 5,050 | 4,695 | 5,555 | 90 | CXM-22-30-90-36-AC10-F3-3 | |
| 4,665 | 4,340 | 5,130 | 95 | CXM-22-30-95-36-AC10-F3-3 | |
| 3500K | 6,240 | 5,800 | 6,865 | 70 | CXM-22-35-70-36-AC10-F3-3 |
| 6,140 | 5,710 | 6,755 | 80 | CXM-22-35-80-36-AC10-F3-3 | |
| 5,285 | 4,915 | 5,815 | 90 | CXM-22-35-90-36-AC10-F3-3 | |
| 4000K | 6,665 | 6,200 | 7,330 | 70 | CXM-22-40-70-36-AC10-F3-3 |
| 6,345 | 5,900 | 6,980 | 80 | CXM-22-40-80-36-AC10-F3-3 | |
| 5,465 | 5,180 | 6,010 | 90 | CXM-22-40-90-36-AC10-F3-3 | |
| Output Flux (lm) | Reference | Color
Rendering Index |
Part Number | |||
| CCT | Typ.
(85ºC) |
Min.
(85ºC) |
Typ.
(calculated) (25ºC) |
CRI (min.) | 5-step MacAdam Ellipse | 3-step MacAdam Ellipse |
| 5000K | 6,825 | 6,345 | 7,510 | 70 | CXM-22-50-70-36-AC10-F3-5 | CXM-22-50-70-36-AC10-F3-3 |
| 6,495 | 6,040 | 7,145 | 80 | CXM-22-50-80-36-AC10-F3-5 | CXM-22-50-80-36-AC10-F3-3 | |
| 6500K | 6,800 | 6,325 | 7,480 | 70 | CXM-22-65-70-36-AC10-F3-5 | CXM-22-65-70-36-AC10-F3-3 |
| 6,475 | 6,020 | 7,125 | 80 | CXM-22-65-80-36-AC10-F3-5 | CXM-22-65-80-36-AC10-F3-3 | |
CXM-22 Operating Characteristics1
Optical and Electrical Characteristics
| Parameter | Symbol | Minimum | Typical | Maximum | Unit |
| Forward Current2 | If | 1,280 | 2,560 | mA | |
| Forward Voltage3 | Vf | 32 | 34 | 37.5 | V |
| Power | 43 | 90 | W | ||
| Operating Case Temperature | T c | 105 | ºC | ||
| Light Emitting Surface Diameter | LES | 22 | mm | ||
| Thermal Resistance (junction-to-case) | Θjc | 0.37 | ºC/W | ||
| Junction Temperature | Tj | 140 | ºC | ||
| Viewing Angle | 120 | Degree |
