Description

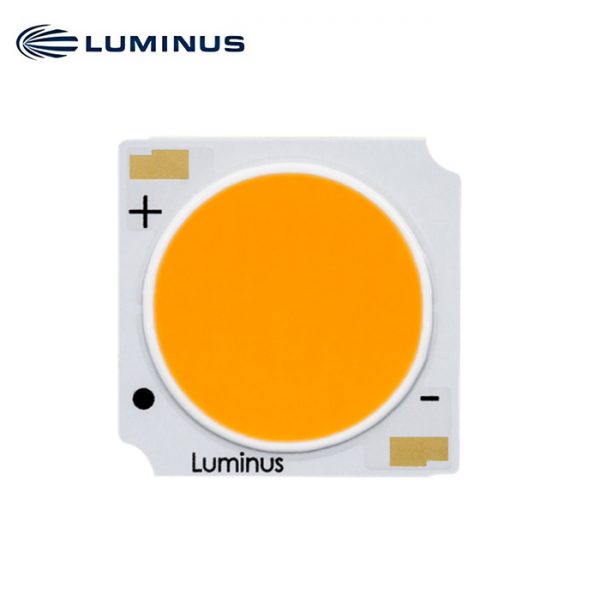

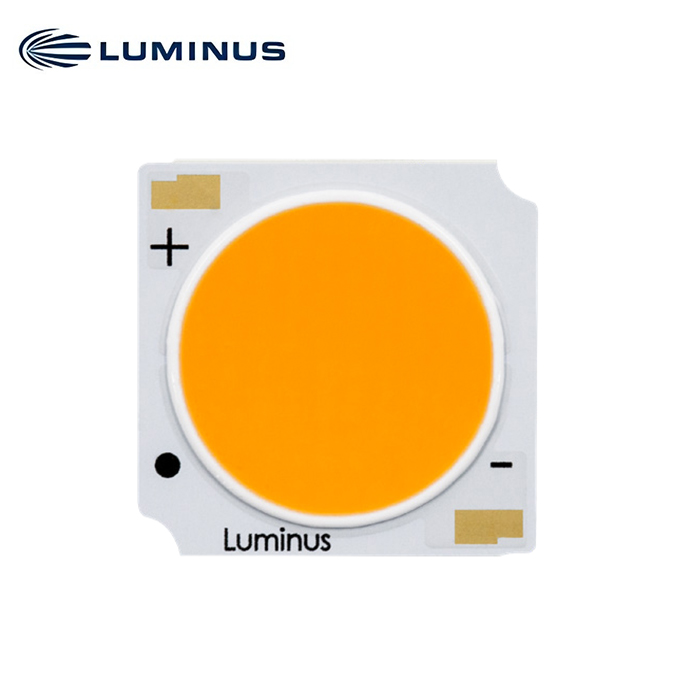

Generation 3 CIM-14 COB Arrays White LED

Luminus Chip-on-Board (COB) LED series offers a complete lighting class solution designed for high performance illumination applications. The selection covers a wide lumen range from less than 400lm to over 20,000lm, all major color temperatures and can deliver color rendering greater than 97 at 2700K and 3000K and R9 equal to 95. These breakthroughs allow illumination engineers and designers to develop lighting solutions with maximum efficacy, brightness and overall quality.

Features
• High lumen output and efficacy typical
• Over 2,300 lm, 155 LPW @ 3000K, 80 CRI, Tj = 85ºC
• Over 4,095 lm, 177 LPW @ 5000K, 70 CRI, Tj = 85ºC
• Complete CCT range 2700K, 3000K, 3500K, 4000K, 5000K and 6500K
• 70 or 80 CRI min. up to 95 min. with high R9 in warm white
• 3 SDCM color binning accuracy
• Excellent optical emission uniformity and color over angle consistency
• Exceptional long term color stability
• Superior thermal conductivity for uniform heat spreading
• Environmentally friendly: RoHS and REACH compliant
• UL recognized, file # E 465703

Applications
• Spotlights/Track Lights
• Downlights
• Shop Lighting
• Hospitality Lighting
• Architectural and Specialty
• Street Lighting
• Parking Lot and Area Lighting
• Tunnel Lighting



Color Temperature, CRI and R9 Values



CIM-14 Part Numbers (AC30)

The following tables describe products with typical flux and minimum flux measured at 450mA and specified at 85ºC. The values at 25ºC are calculated and shown for reference only. All product is measured and specified at 85ºCjunction temperature





CIM-14 Operating Characteristics1

Optical and Electrical Characteristics
