Description

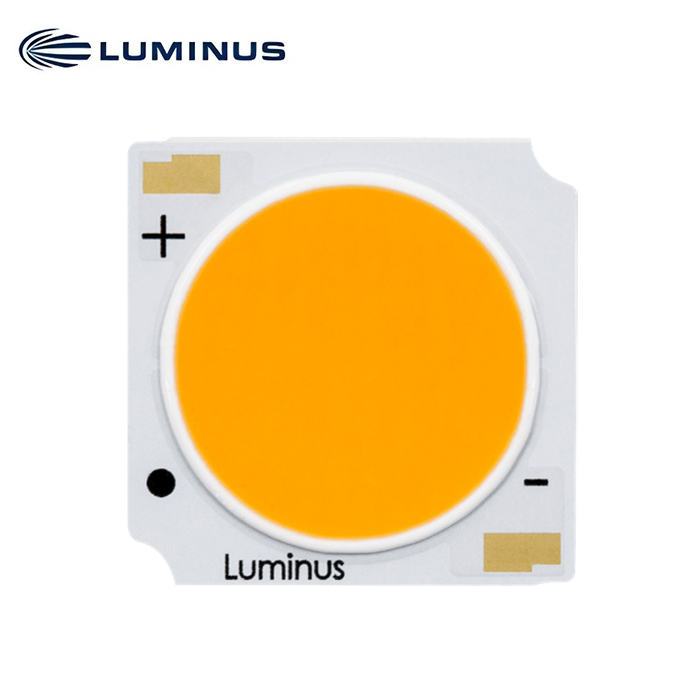

Generation 4 CLM-14 COB Arrays White LED
Features
• High lumen output and efficacy typical
• Over 2,300 lm, 139 LPW @ 3000K, 90CRI, Tj = 85ºC
• Over 2,945 lm, 177 LPW @ 5000K, 70CRI, Tj = 85ºC
• CCT range 2400K, 2700K, 3000K, 3500K, 4000K, 5000K, 5700K and 6500K
• AccuWhite High Color Rendering, 97CRI Typ. Most CCTs
• 3 SDCM color binning standard, 2 SDCM binning available
• Excellent optical emission uniformity and color over angle consistency
• Exceptional long term color stability
• Superior thermal conductivity for uniform heat spreading
• Environmentally friendly: RoHS and REACH compliant
• UL recognized, file # E465703
Applications
• Spotlights/Track Lights
• Downlights
• Shop Lighting
• Hospitality Lighting
• Architectural and Specialty
• Street Lighting
• Parking Lot and Area Lighting
• Tunnel Lighting
CCT, CRI and R9 Values
| Correlated Color Temperatures | XX Value | CRI | *R9 |
| 4000K, 5000K, 5700K, 6500K | 70 | >70 | – |
| 2700K, 3000K, 3500K, 4000K, 5000K, 5700K, 6500K | 80 | >80 | >0 |
| 2400K, 2700K, 3000K, 3500K, 4000K, 5000K | 90 | >90 | >50 |
| 2700K, 3000K | 95 | >95 | >85 |
| 3500K, 4000K, 5000K | >75 |
Ordering Part Numbers (AC40)
The following tables describe products with typical flux and minimum flux measured at 500mA and specified at Tj = 85ºC. The values at 25ºC are calculated and shown for reference only.
| CCT | Output Flux (lm) | Color
Rendering Index (min.) |
Ordering Part Number | |||
| Typ. (85ºC) | Min. (85ºC) | Calculated
Typ. (25ºC) |
3-step MacAdam Ellipse | 2-step MacAdam Ellipse | ||
| 2400K | 1,730 | 1,610 | 1,905 | 90 | CLM-14-24-90-36-AC40-F5-3 | CLM-14-24-90-36-AC40-F5-2 |
| 2700K | 2,670 | 2,485 | 2,935 | 80 | CLM-14-27-80-36-AC40-F5-3 | CLM-14-27-80-36-AC40-F5-2 |
| 2,200 | 2,045 | 2,420 | 90 | CLM-14-27-90-36-AC40-F5-3 | CLM-14-27-90-36-AC40-F5-2 | |
| 1,905 | 1,770 | 2,095 | 95 | CLM-14-27-95-36-AC40-F5-3 | CLM-14-27-95-36-AC40-F5-2 | |
| 3000K | 2,715 | 2,525 | 2,985 | 80 | CLM-14-30-80-36-AC40-F5-3 | CLM-14-30-80-36-AC40-F5-2 |
| 2,300 | 2,140 | 2,530 | 90 | CLM-14-30-90-36-AC40-F5-3 | CLM-14-30-90-36-AC40-F5-2 | |
| 1,980 | 1,840 | 2,175 | 95 | CLM-14-30-95-36-AC40-F5-3 | CLM-14-30-95-36-AC40-F5-2 | |
| 3500K | 2,760 | 2,565 | 3,035 | 80 | CLM-14-35-80-36-AC40-F5-3 | CLM-14-35-80-36-AC40-F5-2 |
| 2,345 | 2,180 | 2,580 | 90 | CLM-14-35-90-36-AC40-F5-3 | CLM-14-35-90-36-AC40-F5-2 | |
| 2,095 | 1,950 | 2,305 | 95 | CLM-14-35-95-36-AC40-F5-3 | CLM-14-35-95-36-AC40-F5-2 | |
| 4000K | 2,875 | 2,675 | 3,165 | 70 | CLM-14-40-70-36-AC40-F5-3 | CLM-14-40-70-36-AC40-F5-2 |
| 2,780 | 2,585 | 3,060 | 80 | CLM-14-40-80-36-AC40-F5-3 | CLM-14-40-80-36-AC40-F5-2 | |
| 2,415 | 2,245 | 2,655 | 90 | CLM-14-40-90-36-AC40-F5-3 | CLM-14-40-90-36-AC40-F5-2 | |
| 2,190 | 2,035 | 2,410 | 95 | CLM-14-40-95-36-AC40-F5-3 | CLM-14-40-95-36-AC40-F5-2 | |
| 5000K | 2,945 | 2,740 | 3,240 | 70 | CLM-14-50-70-36-AC40-F5-3 | |
| 2,795 | 2,600 | 3,075 | 80 | CLM-14-50-80-36-AC40-F5-3 | ||
| 2,530 | 2,350 | 2,785 | 90 | CLM-14-50-90-36-AC40-F5-3 | ||
| 2,180 | 2,030 | 2,400 | 95 | CLM-14-50-95-36-AC40-F5-3 | ||
| 5700K | 2,920 | 2,715 | 3,210 | 70 | CLM-14-57-70-36-AC40-F5-3 | |
| 2,760 | 2,570 | 3,035 | 80 | CLM-14-57-80-36-AC40-F5-3 | ||
| 6500K | 2,735 | 2,545 | 3,010 | 70 | CLM-14-65-70-36-AC40-F5-3 | |
| 2,670 | 2,485 | 2,935 | 80 | CLM-14-65-80-36-AC40-F5-3 | ||
Ordering Part Numbers (AA40)
The following tables describe products with typical flux and minimum flux measured at 500mA and specified at Tj = 85ºC. The values at 25ºC are calculated and shown for reference only.
| CCT | Output Flux (lm) | Color
Rendering Index (min.) |
Ordering Part Number | |||
| Typ. (85ºC) | Min. (85ºC) | Calculated
Typ. (25ºC) |
3-step MacAdam Ellipse | 2-step MacAdam Ellipse | ||
| 2400K | 1,730 | 1,610 | 1,905 | 90 | CLM-14-24-90-36-AA40-F5-3 | CLM-14-24-90-36-AA40-F5-2 |
| 2700K | 2,670 | 2,485 | 2,935 | 80 | CLM-14-27-80-36-AA40-F5-3 | CLM-14-27-80-36-AA40-F5-2 |
| 2,200 | 2,045 | 2,420 | 90 | CLM-14-27-90-36-AA40-F5-3 | CLM-14-27-90-36-AA40-F5-2 | |
| 1,905 | 1,770 | 2,095 | 95 | CLM-14-27-95-36-AA40-F5-3 | CLM-14-27-95-36-AA40-F5-2 | |
| 3000K | 2,715 | 2,525 | 2,985 | 80 | CLM-14-30-80-36-AA40-F5-3 | CLM-14-30-80-36-AA40-F5-2 |
| 2,300 | 2,140 | 2,530 | 90 | CLM-14-30-90-36-AA40-F5-3 | CLM-14-30-90-36-AA40-F5-2 | |
| 1,980 | 1,840 | 2,175 | 95 | CLM-14-30-95-36-AA40-F5-3 | CLM-14-30-95-36-AA40-F5-2 | |
| 3500K | 2,760 | 2,565 | 3,035 | 80 | CLM-14-35-80-36-AA40-F5-3 | CLM-14-35-80-36-AA40-F5-2 |
| 2,345 | 2,180 | 2,580 | 90 | CLM-14-35-90-36-AA40-F5-3 | CLM-14-35-90-36-AA40-F5-2 | |
| 2,095 | 1,950 | 2,305 | 95 | CLM-14-35-95-36-AA40-F5-3 | CLM-14-35-95-36-AA40-F5-2 | |
| 4000K | 2,875 | 2,675 | 3,165 | 70 | CLM-14-40-70-36-AA40-F5-3 | CLM-14-40-70-36-AA40-F5-2 |
| 2,780 | 2,585 | 3,060 | 80 | CLM-14-40-80-36-AA40-F5-3 | CLM-14-40-80-36-AA40-F5-2 | |
| 2,415 | 2,245 | 2,655 | 90 | CLM-14-40-90-36-AA40-F5-3 | CLM-14-40-90-36-AA40-F5-2 | |
| 2,190 | 2,035 | 2,410 | 95 | CLM-14-40-95-36-AA40-F5-3 | CLM-14-40-95-36-AA40-F5-2 | |
| 5000K | 2,945 | 2,740 | 3,240 | 70 | CLM-14-50-70-36-AA40-F5-3 | |
| 2,795 | 2,600 | 3,075 | 80 | CLM-14-50-80-36-AA40-F5-3 | ||
| 2,530 | 2,350 | 2,785 | 90 | CLM-14-50-90-36-AA40-F5-3 | ||
| 2,180 | 2,030 | 2,400 | 95 | CLM-14-50-95-36-AA40-F5-3 | ||
| 5700K | 2,920 | 2,715 | 3,210 | 70 | CLM-14-57-70-36-AA40-F5-3 | |
| 2,760 | 2,570 | 3,035 | 80 | CLM-14-57-80-36-AA40-F5-3 | ||
| 6500K | 2,735 | 2,545 | 3,010 | 70 | CLM-14-65-70-36-AA40-F5-3 | |
| 2,670 | 2,485 | 2,935 | 80 | CLM-14-65-80-36-AA40-F5-3 | ||
Operating Characteristics1
| Parameter | Symbol | Minimum | Typical | Maximum | Unit |
| Forward Current1,2 | If | 500 | 1,800 | mA | |
| Forward Voltage3 | Vf | 31.0 | 32.8 | 37.0 | V |
| Power | 16.6 | 68.7 | W | ||
| Operating Case Temperature | T c | 120 | ºC | ||
| Light Emitting Surface Diameter | LES | 14.5 | mm | ||
| Thermal Resistance (junction-to-case) | Θjc | 0.25 | ºC/W | ||
| Junction Temperature | Tj | 140 | ºC | ||
| Viewing Angle | 120 | Degree |
