Description

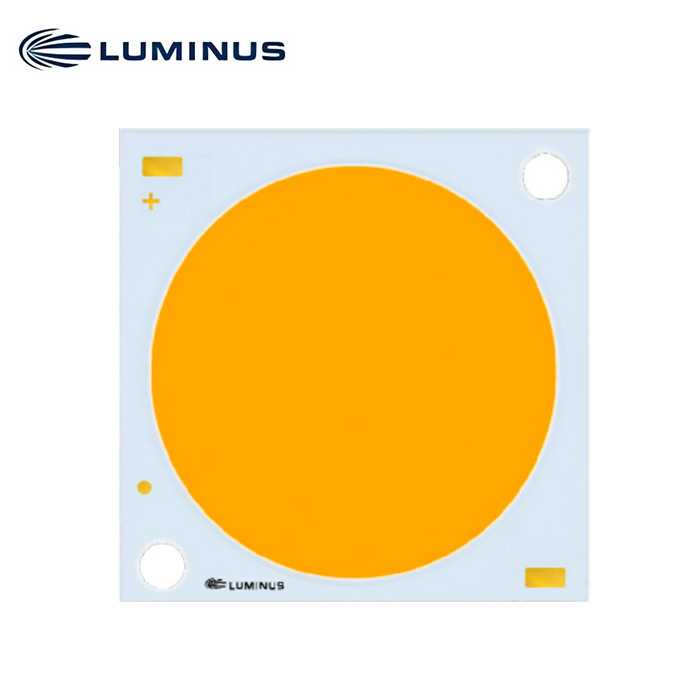

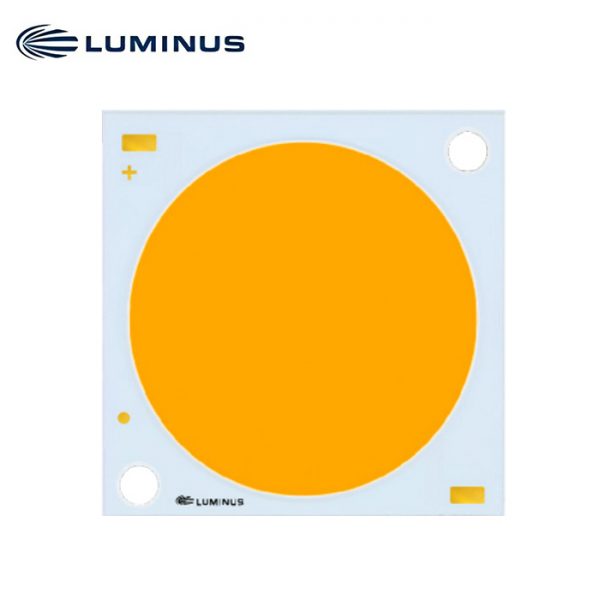

Generation 4 CVM-45 COB LED Arrays Entertainment Lighting
Features
• High lumen output
• Maximum 34,600 lm @ 3150K, 85°C
• Maximum 36,900 lm @ 5600K, 85°C
• 3150K and 5600K CCT
• 95 CRI minimum
• 90 TLCI minimum
• Excellent optical emission uniformity and color over angle consistency
• Exceptional long term color stability
• Superior thermal conductivity for uniform heat spreading
• UL certified, file # E465703
Applications
• TV Studio
• Film Production
• Still Photography
• Stage/Set Lights
• Architectural/Hospitality
Ordering Part Numbers
The following tables describe products with typical flux and minimum flux measured at 5 A and specified at Tj = 85°C. The values at 25°C are calculated and shown for reference only.
| Minimum-
CRI² |
CCT | Luminous Flux¹(lm) | Ordering Part Number | |||
| Typical Flux
(85°C) |
Minimum
Flux (85°C) |
Calculated
Typical Flux (25°C) |
3-step MacAdam Ellipse | 2-step MacAdam Ellipse | ||
| 95 | 3150K | 28100 | 26130 | 31280 | CVM-32-31-95-54-TC40-F5-3 | CVM-32-31-95-54-TC40-F5-2 |
| 5600K | 30000 | 27900 | 33400 | CVM-32-56-95-54-TC42-F5-3 | CVM-32-56-95-54-TC42-F5-2 | |
Absolute Maximum Ratings¹
| Parameter | Symbol | Value | Unit | |
| Forward Current | Typical | If typ | 5.0 | A |
| Maximum | If max | 6.0 | ||
| Power Dissipation | Typical | Pd typ | 275 | W |
| Maximum | Pd max | 340 | ||
| Operating Case Temperature | Maximum | Tc | 120 | °C |
| Junction Temperature | Maximum | T
j |
140 | °C |
Characteristics1,2,3
| Parameter | Symbol | Value | Unit | |
| Light Emitting Surface Diameter | LES | 32.8 | mm | |
| Forward Voltage | Minimum | Vf min | 51.0 | V |
| Typical | Vf typ | 55.1 | ||
| Maximum | Vf max | 58.0 | ||
| Thermal Resistance | Rth J-C | 0.07 | °C/W | |
| Viewing Angle | 2θ1/2 | 120 | ° | |
