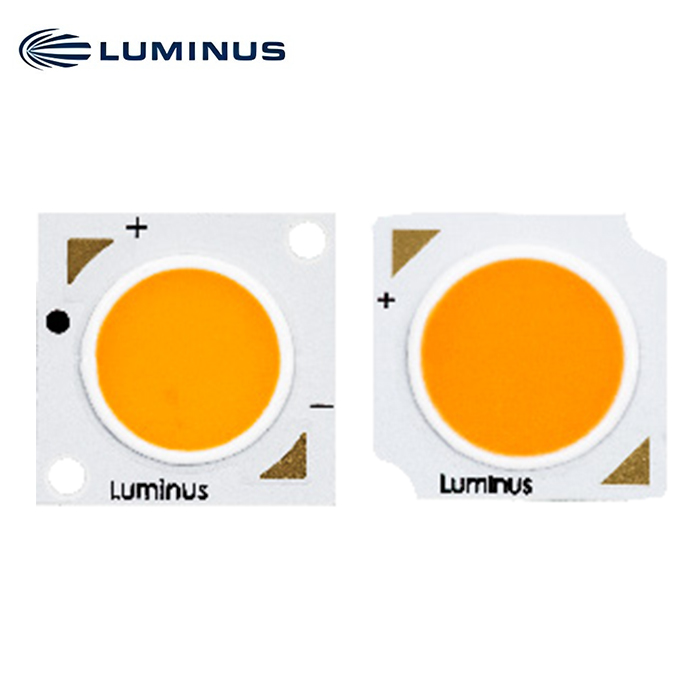

Generation 4 CXM-11 COB Arrays White LED
Features
• High lumen output and efficacy typical
• Over 2,020 lm, 134 LPW @ 3000K, 90CRI, Tj = 85ºC
• Over 2,590 lm, 172 LPW @ 5000K, 70CRI, Tj = 85ºC
• CCT range 2400K, 2700K, 3000K, 3500K, 4000K, 5000K, 5700K and 6500K
• AccuWhite High Color Rendering, 97CRI Typ. Most CCTs
• 3 SDCM color binning standard, 2 SDCM binning available
• Excellent optical emission uniformity and color over angle consistency
• Exceptional long term color stability
• Superior thermal conductivity for uniform heat spreading
• Environmentally friendly: RoHS and REACH compliant
• UL recognized, file # E465703
Applications
• Spotlights/Track Lights
• Downlights
• Shop Lighting
• Hospitality Lighting
• Architectural and Specialty
• Street Lighting
• Parking Lot and Area Lighting
• Tunnel Lighting
CT, CRI and R9 Values
| Correlated Color Temperatures | XX Value | CRI | *R9 |
| 4000K, 5000K, 5700K, 6500K | 70 | >70 | – |
| 2700K, 3000K, 3500K, 4000K, 5000K, 5700K, 6500K | 80 | >80 | >0 |
| 2400K, 2700K, 3000K, 3500K, 4000K, 5000K | 90 | >90 | >50 |
| 2700K, 3000K | 95 | >95 | >85 |
| 3500K, 4000K, 5000K | >75 |
Ordering Part Numbers
The following tables describe products with typical flux and minimum flux measured at 450mA and specified at Tj = 85ºC. The values at 25ºC are calculated and shown for reference only.
| CCT | Output Flux (lm) | Color
Rendering Index (min.) |
Ordering Part Number | |||
| Typ. (85ºC) | Min. (85ºC) | Calculated
Typ. (25ºC) |
3-step MacAdam Ellipse | 2-step MacAdam Ellipse | ||
| 2400K | 1,520 | 1,414 | 1,670 | 90 | CXM-11-24-90-36-AA40-F5-3 | CXM-11-24-90-36-AA40-F5-2 |
| 2700K | 2,345 | 2,180 | 2,589 | 80 | CXM-11-27-80-36-AA40-F5-3 | CXM-11-27-80-36-AA40-F5-2 |
| 1,935 | 1,800 | 2,130 | 90 | CXM-11-27-90-36-AA40-F5-3 | CXM-11-27-90-36-AA40-F5-2 | |
| 1,675 | 1,560 | 1,845 | 95 | CXM-11-27-95-36-AA40-F5-3 | CXM-11-27-95-36-AA40-F5-2 | |
| 3000K | 2,385 | 2,220 | 2,625 | 80 | CXM-11-30-80-36-AA40-F5-3 | CXM-11-30-80-36-AA40-F5-2 |
| 2,020 | 1,880 | 2,220 | 90 | CXM-11-30-90-36-AA40-F5-3 | CXM-11-30-90-36-AA40-F5-2 | |
| 1,740 | 1,615 | 1,915 | 95 | CXM-11-30-95-36-AA40-F5-3 | CXM-11-30-95-36-AA40-F5-2 | |
| 3500K | 2,425 | 2,255 | 2,670 | 80 | CXM-11-35-80-36-AA40-F5-3 | CXM-11-35-80-36-AA40-F5-2 |
| 2,060 | 1,915 | 2,265 | 90 | CXM-11-35-90-36-AA40-F5-3 | CXM-11-35-90-36-AA40-F5-2 | |
| 1,840 | 1,710 | 2,025 | 95 | CXM-11-35-95-36-AA40-F5-3 | CXM-11-35-95-36-AA40-F5-2 | |
| 4000K | 2,525 | 2,350 | 2,780 | 70 | CXM-11-40-70-36-AA40-F5-3 | CXM-11-40-70-36-AA40-F5-2 |
| 2,440 | 2,270 | 2,685 | 80 | CXM-11-40-80-36-AA40-F5-3 | CXM-11-40-80-36-AA40-F5-2 | |
| 2,120 | 1,970 | 2,330 | 90 | CXM-11-40-90-36-AA40-F5-3 | CXM-11-40-90-36-AA40-F5-2 | |
| 1,925 | 1,790 | 2,120 | 95 | CXM-11-40-95-36-AA40-F5-3 | CXM-11-40-95-36-AA40-F5-2 | |
| 5000K | 2,590 | 2,405 | 2,845 | 70 | CXM-11-50-70-36-AA40-F5-3 | |
| 2,455 | 2,285 | 2,700 | 80 | CXM-11-50-80-36-AA40-F5-3 | ||
| 2,220 | 2,065 | 2,440 | 90 | CXM-11-50-90-36-AA40-F5-3 | ||
| 1,920 | 1,785 | 2,110 | 95 | CXM-11-50-95-36-AA40-F5-3 | ||
| 5700K | 2,565 | 2,285 | 2,820 | 70 | CXM-11-57-70-36-AA40-F5-3 | |
| 2,425 | 2,255 | 2,670 | 80 | CXM-11-57-80-36-AA40-F5-3 | ||
| 6500K | 2,405 | 2,235 | 2,645 | 70 | CXM-11-65-70-36-AA40-F5-3 | |
| 2,345 | 2,180 | 2,580 | 80 | CXM-11-65-80-36-AA40-F5-3 | ||
Ordering Part Numbers
The following tables describe products with typical flux and minimum flux measured at 450mA and specified at Tj = 85ºC. The values at 25ºC are calculated and shown for reference only.
| CCT | Output Flux (lm) | Color
Rendering Index (min.) |
Ordering Part Number | |||
| Typ. (85ºC) | Min. (85ºC) | Calculated
Typ. (25ºC) |
3-step MacAdam Ellipse | 2-step MacAdam Ellipse | ||
| 2400K | 1,520 | 1,414 | 1,670 | 90 | CXM-11-24-90-36-AC40-F5-3 | CXM-11-24-90-36-AC40-F5-2 |
| 2700K | 2,345 | 2,180 | 2,589 | 80 | CXM-11-27-80-36-AC40-F5-3 | CXM-11-27-80-36-AC40-F5-2 |
| 1,935 | 1,800 | 2,130 | 90 | CXM-11-27-90-36-AC40-F5-3 | CXM-11-27-90-36-AC40-F5-2 | |
| 1,675 | 1,560 | 1,845 | 95 | CXM-11-27-95-36-AC40-F5-3 | CXM-11-27-95-36-AC40-F5-2 | |
| 3000K | 2,385 | 2,220 | 2,625 | 80 | CXM-11-30-80-36-AC40-F5-3 | CXM-11-30-80-36-AC40-F5-2 |
| 2,020 | 1,880 | 2,220 | 90 | CXM-11-30-90-36-AC40-F5-3 | CXM-11-30-90-36-AC40-F5-2 | |
| 1,740 | 1,615 | 1,915 | 95 | CXM-11-30-95-36-AC40-F5-3 | CXM-11-30-95-36-AC40-F5-2 | |
| 3500K | 2,425 | 2,255 | 2,670 | 80 | CXM-11-35-80-36-AC40-F5-3 | CXM-11-35-80-36-AC40-F5-2 |
| 2,060 | 1,915 | 2,265 | 90 | CXM-11-35-90-36-AC40-F5-3 | CXM-11-35-90-36-AC40-F5-2 | |
| 1,840 | 1,710 | 2,025 | 95 | CXM-11-35-95-36-AC40-F5-3 | CXM-11-35-95-36-AC40-F5-2 | |
| 4000K | 2,525 | 2,350 | 2,780 | 70 | CXM-11-40-70-36-AC40-F5-3 | CXM-11-40-70-36-AC40-F5-2 |
| 2,440 | 2,270 | 2,685 | 80 | CXM-11-40-80-36-AC40-F5-3 | CXM-11-40-80-36-AC40-F5-2 | |
| 2,120 | 1,970 | 2,330 | 90 | CXM-11-40-90-36-AC40-F5-3 | CXM-11-40-90-36-AC40-F5-2 | |
| 1,925 | 1,790 | 2,120 | 95 | CXM-11-40-95-36-AC40-F5-3 | CXM-11-40-95-36-AC40-F5-2 | |
| 5000K | 2,590 | 2,405 | 2,845 | 70 | CXM-11-50-70-36-AC40-F5-3 | |
| 2,455 | 2,285 | 2,700 | 80 | CXM-11-50-80-36-AC40-F5-3 | ||
| 2,220 | 2,065 | 2,440 | 90 | CXM-11-50-90-36-AC40-F5-3 | ||
| 1,920 | 1,785 | 2,110 | 95 | CXM-11-50-95-36-AC40-F5-3 | ||
| 5700K | 2,565 | 2,285 | 2,820 | 70 | CXM-11-57-70-36-AC40-F5-3 | |
| 2,425 | 2,255 | 2,670 | 80 | CXM-11-57-80-36-AC40-F5-3 | ||
| 6500K | 2,405 | 2,235 | 2,645 | 70 | CXM-11-65-70-36-AC40-F5-3 | |
| 2,345 | 2,180 | 2,580 | 80 | CXM-11-65-80-36-AC40-F5-3 | ||
Operating Characteristics1
| Parameter | Symbol | Minimum | Typical | Maximum | Unit |
| Forward Current2 | If | 450 | 1,300 | mA | |
| Forward Voltage3 | Vf | 31.0 | 33.7 | 37.0 | V |
| Power | 15.1 | 49.3 | W | ||
| Operating Case Temperature | T c | 120 | ºC | ||
| Light Emitting Surface Diameter | LES | 11.6 | mm | ||
| Thermal Resistance (junction-to-case) | Θjc | 0.29 | ºC/W | ||
| Junction Temperature | Tj | 140 | ºC | ||
| Viewing Angle | 120 | Degree |
