Description

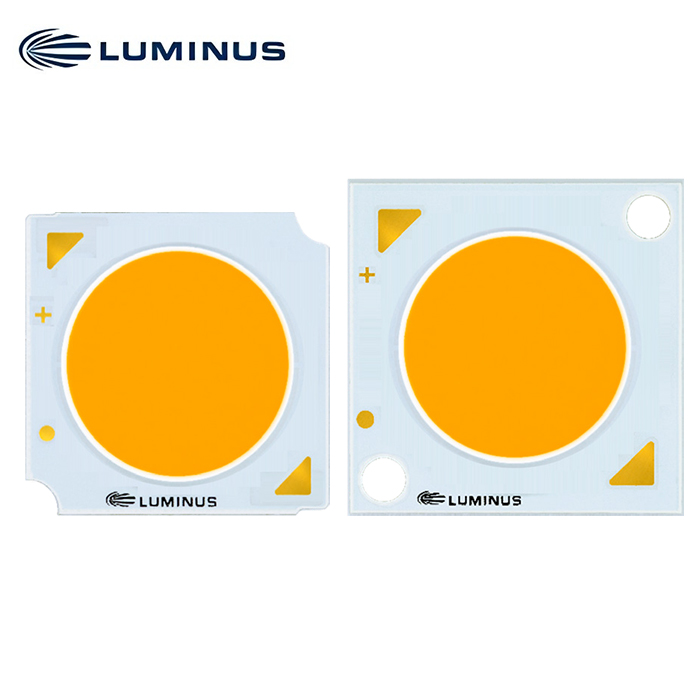

Generation 4 CXM-9 COB Arrays White LED
Features
• High lumen output and efficacy typical
• Over 1,570 lm, 130 LPW @ 3000K, 90CRI, Tj = 85ºC
• Over 2,015 lm, 167 LPW @ 5000K, 70CRI, Tj = 85ºC
• CCT range 2400K, 2700K, 3000K, 3500K, 4000K, 5000K, 5700K and 6500K
• AccuWhite High Color Rendering, 97CRI Typ. Most CCTs
• 3 SDCM color binning standard, 2 SDCM binning available
• Excellent optical emission uniformity and color over angle consistency
• Exceptional long term color stability
• Superior thermal conductivity for uniform heat spreading
• Environmentally friendly: RoHS and REACH compliant
• UL recognized, file # E465703
Applications
• Spotlights/Track Lights
• Downlights
• Shop Lighting
• Hospitality Lighting
• Architectural and Specialty
• Street Lighting
• Parking Lot and Area Lighting
• Tunnel Lighting
CCT, CRI and R9 Values
| Correlated Color Temperatures | XX Value | CRI | *R9 |
| 4000K, 5000K, 5700K, 6500K | 70 | >70 | – |
| 2700K, 3000K, 3500K, 4000K, 5000K, 5700K, 6500K | 80 | >80 | >0 |
| 2400K, 2700K, 3000K, 3500K, 4000K, 5000K | 90 | >90 | >50 |
| 2700K, 3000K | 95 | >95 | >85 |
| 3500K, 4000K, 5000K | >75 |
Ordering Part Numbers – AA40
The following tables describe products with typical flux and minimum flux measured at 360mA and specified at Tj = 85ºC. The values at 25ºC are calculated and shown for reference only.
| CCT | Output Flux (lm) | Color
Rendering Index (min.) |
Ordering Part Number | |||
| Typ. (85ºC) | Min. (85ºC) | Calculated
Typ. (25ºC) |
3-step MacAdam Ellipse | 2-step MacAdam Ellipse | ||
| 2400K | 1180 | 1095 | 1300 | 90 | CXM-9-24-90-36-AA40-F5-3 | CXM-9-24-90-36-AA40-F5-2 |
| 2700K | 1820 | 1690 | 2000 | 80 | CXM-9-27-80-36-AA40-F5-3 | CXM-9-27-80-36-AA40-F5-2 |
| 1505 | 1400 | 1655 | 90 | CXM-9-27-90-36-AA40-F5-3 | CXM-9-27-90-36-AA40-F5-2 | |
| 1300 | 1210 | 1430 | 95 | CXM-9-27-95-36-AA40-F5-3 | CXM-9-27-95-36-AA40-F5-2 | |
| 3000K | 1855 | 1725 | 2040 | 80 | CXM-9-30-80-36-AA40-F5-3 | CXM-9-30-80-36-AA40-F5-2 |
| 1570 | 1460 | 1725 | 90 | CXM-9-30-90-36-AA40-F5-3 | CXM-9-30-90-36-AA40-F5-2 | |
| 1355 | 1260 | 1490 | 95 | CXM-9-30-95-36-AA40-F5-3 | CXM-9-30-95-36-AA40-F5-2 | |
| 3500K | 1885 | 1755 | 2075 | 80 | CXM-9-35-80-36-AA40-F5-3 | CXM-9-35-80-36-AA40-F5-2 |
| 1600 | 1485 | 1720 | 90 | CXM-9-35-90-36-AA40-F5-3 | CXM-9-35-90-36-AA40-F5-2 | |
| 1430 | 1330 | 1575 | 95 | CXM-9-35-95-36-AA40-F5-3 | CXM-9-35-95-36-AA40-F5-2 | |
| 4000K | 1965 | 1825 | 2160 | 70 | CXM-9-40-70-36-AA40-F5-3 | CXM-9-40-70-36-AA40-F5-2 |
| 1895 | 1740 | 2055 | 80 | CXM-9-40-80-36-AA40-F5-3 | CXM-9-40-80-36-AA40-F5-2 | |
| 1650 | 1535 | 1815 | 90 | CXM-9-40-90-36-AA40-F5-3 | CXM-9-40-90-36-AA40-F5-2 | |
| 1495 | 1390 | 1645 | 95 | CXM-9-40-95-36-AA40-F5-3 | CXM-9-40-95-36-AA40-F5-2 | |
| 5000K | 2010 | 1870 | 2210 | 70 | CXM-9-50-70-36-AA40-F5-3 | |
| 1910 | 1775 | 2100 | 80 | CXM-9-50-80-36-AA40-F5-3 | ||
| 1725 | 1605 | 1895 | 90 | CXM-9-50-90-36-AA40-F5-3 | ||
| 1490 | 1385 | 1670 | 95 | CXM-9-50-95-36-AA40-F5-3 | ||
| 5700K | 1995 | 1855 | 2195 | 70 | CXM-9-57-70-36-AA40-F5-3 | |
| 1885 | 1755 | 2075 | 80 | CXM-9-57-80-36-AA40-F5-3 | ||
| 6500K | 1870 | 1740 | 2055 | 70 | CXM-9-65-70-36-AA40-F5-3 | |
| 1820 | 1650 | 2000 | 80 | CXM-9-65-80-36-AA40-F5-3 | ||
Ordering Part Numbers – AC40
The following tables describe products with typical flux and minimum flux measured at 360mA and specified at Tj = 85ºC. The values at 25ºC are calculated and shown for reference only.
| CCT | Output Flux (lm) | Color
Rendering Index (min.) |
Ordering Part Number | |||
| Typ. (85ºC) | Min. (85ºC) | Calculated
Typ. (25ºC) |
3-step MacAdam Ellipse | 2-step MacAdam Ellipse | ||
| 2400K | 1180 | 1095 | 1300 | 90 | CXM-9-24-90-36-AC40-F5-3 | CXM-9-24-90-36-AC40-F5-2 |
| 2700K | 1820 | 1690 | 2000 | 80 | CXM-9-27-80-36-AC40-F5-3 | CXM-9-27-80-36-AC40-F5-2 |
| 1505 | 1400 | 1655 | 90 | CXM-9-27-90-36-AC40-F5-3 | CXM-9-27-90-36-AC40-F5-2 | |
| 1300 | 1210 | 1430 | 95 | CXM-9-27-95-36-AC40-F5-3 | CXM-9-27-95-36-AC40-F5-2 | |
| 3000K | 1855 | 1725 | 2040 | 80 | CXM-9-30-80-36-AC40-F5-3 | CXM-9-30-80-36-AC40-F5-2 |
| 1570 | 1460 | 1725 | 90 | CXM-9-30-90-36-AC40-F5-3 | CXM-9-30-90-36-AC40-F5-2 | |
| 1355 | 1260 | 1490 | 95 | CXM-9-30-95-36-AC40-F5-3 | CXM-9-30-95-36-AC40-F5-2 | |
| 3500K | 1885 | 1755 | 2075 | 80 | CXM-9-35-80-36-AC40-F5-3 | CXM-9-35-80-36-AC40-F5-2 |
| 1600 | 1485 | 1720 | 90 | CXM-9-35-90-36-AC40-F5-3 | CXM-9-35-90-36-AC40-F5-2 | |
| 1430 | 1330 | 1575 | 95 | CXM-9-35-95-36-AC40-F5-3 | CXM-9-35-95-36-AC40-F5-2 | |
| 4000K | 1965 | 1825 | 2160 | 70 | CXM-9-40-70-36-AC40-F5-3 | CXM-9-40-70-36-AC40-F5-2 |
| 1895 | 1740 | 2055 | 80 | CXM-9-40-80-36-AC40-F5-3 | CXM-9-40-80-36-AC40-F5-2 | |
| 1650 | 1535 | 1815 | 90 | CXM-9-40-90-36-AC40-F5-3 | CXM-9-40-90-36-AC40-F5-2 | |
| 1495 | 1390 | 1645 | 95 | CXM-9-40-95-36-AC40-F5-3 | CXM-9-40-95-36-AC40-F5-2 | |
| 5000K | 2010 | 1870 | 2210 | 70 | CXM-9-50-70-36-AC40-F5-3 | |
| 1910 | 1775 | 2100 | 80 | CXM-9-50-80-36-AC40-F5-3 | ||
| 1725 | 1605 | 1895 | 90 | CXM-9-50-90-36-AC40-F5-3 | ||
| 1490 | 1385 | 1670 | 95 | CXM-9-50-95-36-AC40-F5-3 | ||
| 5700K | 1995 | 1855 | 2195 | 70 | CXM-9-57-70-36-AC40-F5-3 | |
| 1885 | 1755 | 2075 | 80 | CXM-9-57-80-36-AC40-F5-3 | ||
| 6500K | 1870 | 1740 | 2055 | 70 | CXM-9-65-70-36-AC40-F5-3 | |
| 1820 | 1650 | 2000 | 80 | CXM-9-65-80-36-AC40-F5-3 | ||
Operating Characteristics1
| Parameter | Symbol | Minimum | Typical | Maximum | Unit |
| Forward Current2 | If | 360 | 1,100 | mA | |
| Forward Voltage3 | Vf | 31.0 | 33.5 | 37.0 | V |
| Power | 12.1 | 41.9 | W | ||
| Operating Case Temperature | T c | 120 | ºC | ||
| Light Emitting Surface Diameter4 | LES | 9.8 | mm | ||
| Thermal Resistance (junction-to-case) | Θjc | 0.32 | ºC/W | ||
| Junction Temperature | Tj | 140 | ºC | ||
| Viewing Angle | 120 | Degree |
