Description

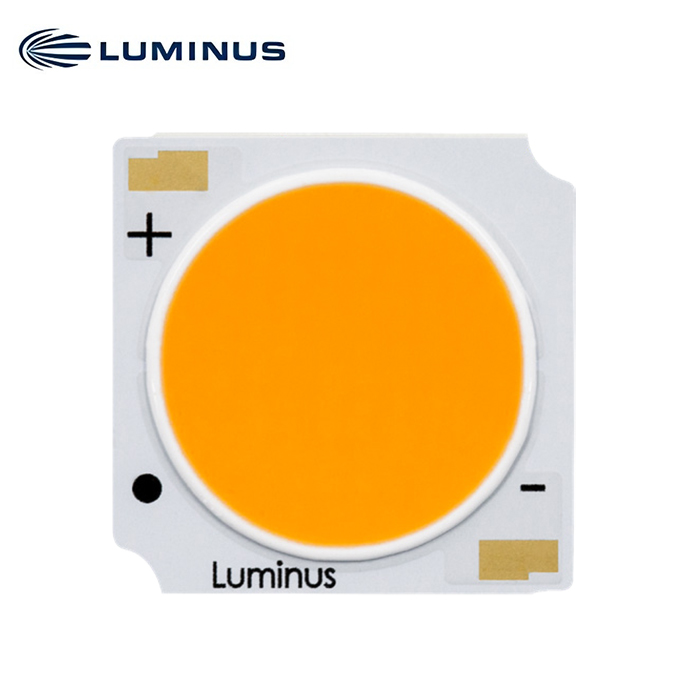

Generation 6 CIM-14 COB Arrays White LED
Features
• High lumen output and efficacy typical
• Over 2200 lm, 148 LPW @ 3000K, 90CRI, Tj = 85ºC
• CCT range 2200K, 2400K, 2700K, 3000K, 3500K, 4000K, 5000K and 6500K
• 3 SDCM and 2 SDCM color binning standard
• Excellent optical emission uniformity and color over angle consistency
• Superior thermal conductivity for uniform heat spreading
• Environmentally friendly: RoHS and REACH compliant
• ENEC certification
Applications
• Spotlights/Track Lights
• Downlights
• Shop Lighting
• Hospitality Lighting
• Architectural and Specialty
• Street Lighting
• Parking Lot and Area Lighting
• Tunnel Lighting
CCT, CRI and R9 Values
| Correlated Color Temperatures | XX Value | CRI | *R9 |
| 2700K, 3000K, 3500K, 4000K, 5000K, 6500K | 80 | >80 | >0 |
| 2200K, 2400K, 2700K, 3000K, 3500K, 4000K, 5000K, 6500K | 90 | >90 | >50 |
| 2700K, 3000K | 95 | >95 | >80 |
| 3500K, 4000K, 5000K | >70 |
Ordering Part Numbers (TC60)-36V
The following tables describe products with typical flux and minimum flux measured at 450mA and specified at Tj = 85ºC. The values at 25ºC are calculated and shown for reference only.
| CCT | Output Flux (lm) | Color
Rendering Index (min.) |
Ordering Part Number | |||
| Typ. (85ºC) | Min. (85ºC) | Calculated
Typ. (25ºC) |
3-step MacAdam Ellipse | 2-step MacAdam Ellipse | ||
| 2200K | 1810 | 1680 | 1990 | 90 | CIM-14-22-90-36-TC60-F7-3 | CIM-14-22-90-36-TC60-F7-2 |
| 2400K | 1965 | 1830 | 2165 | 90 | CIM-14-24-90-36-TC60-F7-3 | CIM-14-24-90-36-TC60-F7-2 |
| 2700K | 2390 | 2220 | 2625 | 80 | CIM-14-27-80-36-TC60-F7-3 | CIM-14-27-80-36-TC60-F7-2 |
| 2120 | 1975 | 2335 | 90 | CIM-14-27-90-36-TC60-F7-3 | CIM-14-27-90-36-TC60-F7-2 | |
| 1780 | 1655 | 1955 | 95 | CIM-14-27-95-36-TC60-F7-3 | CIM-14-27-95-36-TC60-F7-2 | |
| 3000K | 2520 | 2345 | 2775 | 80 | CIM-14-30-80-36-TC60-F7-3 | CIM-14-30-80-36-TC60-F7-2 |
| 2200 | 2045 | 2420 | 90 | CIM-14-30-90-36-TC60-F7-3 | CIM-14-30-90-36-TC60-F7-2 | |
| 1875 | 1745 | 2060 | 95 | CIM-14-30-95-36-TC60-F7-3 | CIM-14-30-95-36-TC60-F7-2 | |
| 3500K | 2570 | 2390 | 2825 | 80 | CIM-14-35-80-36-TC60-F7-3 | CIM-14-35-80-36-TC60-F7-2 |
| 2255 | 2100 | 2480 | 90 | CIM-14-35-90-36-TC60-F7-3 | CIM-14-35-90-36-TC60-F7-2 | |
| 1960 | 1820 | 2155 | 95 | CIM-14-35-95-36-TC60-F7-3 | CIM-14-35-95-36-TC60-F7-2 | |
| 4000K | 2625 | 2440 | 2890 | 80 | CIM-14-40-80-36-TC60-F7-3 | CIM-14-40-80-36-TC60-F7-2 |
| 2305 | 2145 | 2540 | 90 | CIM-14-40-90-36-TC60-F7-3 | CIM-14-40-90-36-TC60-F7-2 | |
| 2065 | 1920 | 2270 | 95 | CIM-14-40-95-36-TC60-F7-3 | CIM-14-40-95-36-TC60-F7-2 | |
| 5000K | 2670 | 2480 | 2935 | 80 | CIM-14-50-80-36-TC60-F7-3 | CIM-14-50-80-36-TC60-F7-2 |
| 2305 | 2140 | 2535 | 90 | CIM-14-50-90-36-TC60-F7-3 | CIM-14-50-90-36-TC60-F7-2 | |
| 2165 | 2010 | 2380 | 95 | CIM-14-50-95-36-TC60-F7-3 | CIM-14-50-95-36-TC60-F7-2 | |
| 6500K | 2585 | 2405 | 2845 | 80 | CIM-14-65-80-36-TC60-F7-3 | CIM-14-65-80-36-TC60-F7-2 |
| 2310 | 2150 | 2545 | 90 | CIM-14-65-90-36-TC60-F7-3 | CIM-14-65-90-36-TC60-F7-2 | |
Ordering Part Numbers – TC62 Sensus (BBBL)
The following tables describe products with typical flux and minimum flux measured at 450mA and specified at Tj = 85ºC. The values at 25ºC are calculated and shown for reference only.
| CCT | Output Flux (lm) | Color
Rendering Index (min.) |
Ordering Part Number | |||
| Typ. (85ºC) | Min. (85ºC) | Calculated
Typ. (25ºC) |
3-step MacAdam Ellipse | 2-step MacAdam Ellipse | ||
| 2700K | 2020 | 1880 | 2220 | 90 | CIM-14-27-90-36-TC62-F7-3 | CIM-14-27-90-36-TC62-F7-2 |
| 3000K | 2145 | 1995 | 2355 | 90 | CIM-14-30-90-36-TC62-F7-3 | CIM-14-30-90-36-TC62-F7-2 |
| 3500K | 2195 | 2040 | 2415 | 90 | CIM-14-35-90-36-TC62-F7-3 | CIM-14-35-90-36-TC62-F7-2 |
Operating Characteristics1
| Parameter | Symbol | Minimum | Typical | Maximum | Unit |
| Forward Current1,2 | If | 450 | 1200 | mA | |
| Forward Voltage3 | Vf | 31.4 | 33.1 | 37.1 | V |
| Power | 14.9 | 44.5 | W | ||
| Operating Case Temperature | T c | 120 | ºC | ||
| Light Emitting Surface Diameter | LES | 14.5 | mm | ||
| Thermal Resistance (junction-to-case) | Θjc | 0.25 | ºC/W | ||
| Junction Temperature | Tj | 140 | ºC | ||
| Viewing Angle | 120 | Degree |
