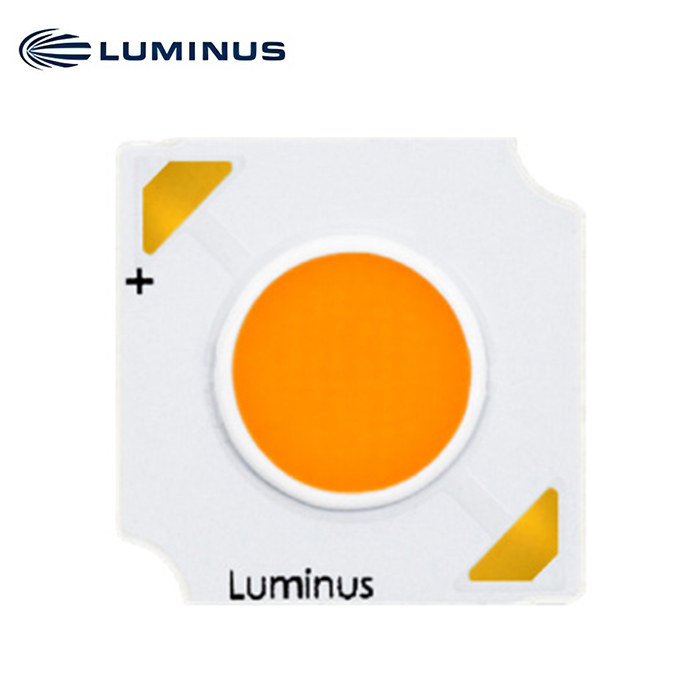

Generation 6 CXM-6 COB Arrays White LED
Features
• High lumen output and efficacy typical
• Over 690 lm, 138 LPW @ 3000K, 90CRI, Tj = 85°C
• CCT range 2200K, 2400K, 2700K, 3000K, 3500K, 4000K, 5000K and 6500K
• 3 SDCM and 2 SDCM color binning standard
• Excellent optical emission uniformity and color over angle consistency
• Superior thermal conductivity for uniform heat spreading
Applications
• Spotlights/Track Lights
• Downlights
• Shop Lighting
• Hospitality Lighting
• Architectural and Specialty
Ordering Part Numbers -TE60 – 9V
The following tables describe products with typical flux and minimum flux measured at 600 mA and specified at Tj = 85°C. The values at 25°C are calculated and shown for reference only.
| Minimum-
CRI² |
CCT | Luminous Flux¹ | Ordering Part Number | |||
| Typical Flux
(85°C) |
Minimum
Flux (85°C) |
Calculated
Typical Flux (25°C) |
3-step MacAdam Ellipse | 2-step MacAdam Ellipse | ||
| 90 | 2200K | 565 | 525 | 620 | CXM-6-22-90-9-TE60-F7-3 | CXM-6-22-90-9-TE60-F7-2 |
| 90 | 2400K | 615 | 570 | 675 | CXM-6-24-90-9-TE60-F7-3 | CXM-6-24-90-9-TE60-F7-2 |
| 80 | 2700K | 745 | 695 | 820 | CXM-6-27-80-9-TE60-F7-3 | CXM-6-27-80-9-TE60-F7-2 |
| 90 | 665 | 615 | 730 | CXM-6-27-90-9-TE60-F7-3 | CXM-6-27-90-9-TE60-F7-2 | |
| 95 | 555 | 515 | 610 | CXM-6-27-95-9-TE60-F7-3 | CXM-6-27-95-9-TE60-F7-2 | |
| 80 | 3000K | 790 | 735 | 870 | CXM-6-30-80-9-TE60-F7-3 | CXM-6-30-80-9-TE60-F7-2 |
| 90 | 690 | 640 | 755 | CXM-6-30-90-9-TE60-F7-3 | CXM-6-30-90-9-TE60-F7-2 | |
| 95 | 585 | 545 | 645 | CXM-6-30-95-9-TE60-F7-3 | CXM-6-30-95-9-TE60-F7-2 | |
| 80 | 3500K | 805 | 745 | 885 | CXM-6-35-80-9-TE60-F7-3 | CXM-6-35-80-9-TE60-F7-2 |
| 90 | 705 | 655 | 775 | CXM-6-35-90-9-TE60-F7-3 | CXM-6-35-90-9-TE60-F7-2 | |
| 95 | 610 | 570 | 675 | CXM-6-35-95-9-TE60-F7-3 | CXM-6-35-95-9-TE60-F7-2 | |
| 80 | 4000K | 820 | 765 | 905 | CXM-6-40-80-9-TE60-F7-3 | CXM-6-40-80-9-TE60-F7-2 |
| 90 | 720 | 670 | 795 | CXM-6-40-90-9-TE60-F7-3 | CXM-6-40-90-9-TE60-F7-2 | |
| 95 | 645 | 600 | 710 | CXM-6-40-95-9-TE60-F7-3 | CXM-6-40-95-9-TE60-F7-2 | |
| 80 | 5000K | 835 | 775 | 920 | CXM-6-50-80-9-TE60-F7-3 | CXM-6-50-80-9-TE60-F7-2 |
| 90 | 720 | 670 | 790 | CXM-6-50-90-9-TE60-F7-3 | CXM-6-50-90-9-TE60-F7-2 | |
| 95 | 675 | 630 | 745 | CXM-6-50-95-9-TE60-F7-3 | CXM-6-50-95-9-TE60-F7-2 | |
| 80 | 6500K | 810 | 750 | 890 | CXM-6-65-80-9-TE60-F7-3 | CXM-6-65-80-9-TE60-F7-2 |
| 90 | 725 | 675 | 795 | CXM-6-65-90-9-TE60-F7-3 | CXM-6-65-90-9-TE60-F7-2 | |
Ordering Part Numbers – TE60 -18V
The following tables describe products with typical flux and minimum flux measured at 300 mA and specified at Tj = 85°C. The values at 25°C are calculated and shown for reference only.
| Minimum-
CRI² |
CCT | Luminous Flux¹ | Ordering Part Number | |||
| Typical Flux
(85°C) |
Minimum
Flux (85°C) |
Calculated
Typical Flux (25°C) |
3-step MacAdam Ellipse | 2-step MacAdam Ellipse | ||
| 90 | 2200K | 565 | 525 | 620 | CXM-6-22-90-18-TE60-F7-3 | CXM-6-22-90-18-TE60-F7-2 |
| 90 | 2400K | 615 | 570 | 675 | CXM-6-24-90-18-TE60-F7-3 | CXM-6-24-90-18-TE60-F7-2 |
| 80 | 2700K | 745 | 695 | 820 | CXM-6-27-80-18-TE60-F7-3 | CXM-6-27-80-18-TE60-F7-2 |
| 90 | 665 | 615 | 730 | CXM-6-27-90-18-TE60-F7-3 | CXM-6-27-90-18-TE60-F7-2 | |
| 95 | 555 | 515 | 610 | CXM-6-27-95-18-TE60-F7-3 | CXM-6-27-95-18-TE60-F7-2 | |
| 80 | 3000K | 790 | 735 | 870 | CXM-6-30-80-18-TE60-F7-3 | CXM-6-30-80-18-TE60-F7-2 |
| 90 | 690 | 640 | 755 | CXM-6-30-90-18-TE60-F7-3 | CXM-6-30-90-18-TE60-F7-2 | |
| 95 | 585 | 545 | 645 | CXM-6-30-95-18-TE60-F7-3 | CXM-6-30-95-18-TE60-F7-2 | |
| 80 | 3500K | 805 | 745 | 885 | CXM-6-35-80-18-TE60-F7-3 | CXM-6-35-80-18-TE60-F7-2 |
| 90 | 705 | 655 | 775 | CXM-6-35-90-18-TE60-F7-3 | CXM-6-35-90-18-TE60-F7-2 | |
| 95 | 610 | 570 | 675 | CXM-6-35-95-18-TE60-F7-3 | CXM-6-35-95-18-TE60-F7-2 | |
| 80 | 4000K | 820 | 765 | 905 | CXM-6-40-80-18-TE60-F7-3 | CXM-6-40-80-18-TE60-F7-2 |
| 90 | 720 | 670 | 795 | CXM-6-40-90-18-TE60-F7-3 | CXM-6-40-90-18-TE60-F7-2 | |
| 95 | 645 | 600 | 710 | CXM-6-40-95-18-TE60-F7-3 | CXM-6-40-95-18-TE60-F7-2 | |
| 80 | 5000K | 835 | 775 | 920 | CXM-6-50-80-18-TE60-F7-3 | CXM-6-50-80-18-TE60-F7-2 |
| 90 | 720 | 670 | 790 | CXM-6-50-90-18-TE60-F7-3 | CXM-6-50-90-18-TE60-F7-2 | |
| 95 | 675 | 630 | 745 | CXM-6-50-95-18-TE60-F7-3 | CXM-6-50-95-18-TE60-F7-2 | |
| 80 | 6500K | 810 | 750 | 890 | CXM-6-65-80-18-TE60-F7-3 | CXM-6-65-80-18-TE60-F7-2 |
| 90 | 725 | 675 | 795 | CXM-6-65-90-18-TE60-F7-3 | CXM-6-65-90-18-TE60-F7-2 | |
Ordering Part Numbers – TE60 – 36V
The following tables describe products with typical flux and minimum flux measured at 150 mA and specified at Tj = 85°C. The values at 25°C are calculated and shown for reference only.
| Minimum-
CRI² |
CCT | Luminous Flux¹ | Ordering Part Number | |||
| Typical Flux
(85°C) |
Minimum
Flux (85°C) |
Calculated
Typical Flux (25°C) |
3-step MacAdam Ellipse | 2-step MacAdam Ellipse | ||
| 90 | 2200K | 565 | 525 | 620 | CXM-6-22-90-36-TE60-F7-3 | CXM-6-22-90-36-TE60-F7-2 |
| 90 | 2400K | 615 | 570 | 675 | CXM-6-24-90-36-TE60-F7-3 | CXM-6-24-90-36-TE60-F7-2 |
| 80 | 2700K | 745 | 695 | 820 | CXM-6-27-80-36-TE60-F7-3 | CXM-6-27-80-36-TE60-F7-2 |
| 90 | 665 | 615 | 730 | CXM-6-27-90-36-TE60-F7-3 | CXM-6-27-90-36-TE60-F7-2 | |
| 95 | 555 | 515 | 610 | CXM-6-27-95-36-TE60-F7-3 | CXM-6-27-95-36-TE60-F7-2 | |
| 80 | 3000K | 790 | 735 | 870 | CXM-6-30-80-36-TE60-F7-3 | CXM-6-30-80-36-TE60-F7-2 |
| 90 | 690 | 640 | 755 | CXM-6-30-90-36-TE60-F7-3 | CXM-6-30-90-36-TE60-F7-2 | |
| 95 | 585 | 545 | 645 | CXM-6-30-95-36-TE60-F7-3 | CXM-6-30-95-36-TE60-F7-2 | |
| 80 | 3500K | 805 | 745 | 885 | CXM-6-35-80-36-TE60-F7-3 | CXM-6-35-80-36-TE60-F7-2 |
| 90 | 705 | 655 | 775 | CXM-6-35-90-36-TE60-F7-3 | CXM-6-35-90-36-TE60-F7-2 | |
| 95 | 610 | 570 | 675 | CXM-6-35-95-36-TE60-F7-3 | CXM-6-35-95-36-TE60-F7-2 | |
| 80 | 4000K | 820 | 765 | 905 | CXM-6-40-80-36-TE60-F7-3 | CXM-6-40-80-36-TE60-F7-2 |
| 90 | 720 | 670 | 795 | CXM-6-40-90-36-TE60-F7-3 | CXM-6-40-90-36-TE60-F7-2 | |
| 95 | 645 | 600 | 710 | CXM-6-40-95-36-TE60-F7-3 | CXM-6-40-95-36-TE60-F7-2 | |
| 80 | 5000K | 835 | 775 | 920 | CXM-6-50-80-36-TE60-F7-3 | CXM-6-50-80-36-TE60-F7-2 |
| 90 | 720 | 670 | 790 | CXM-6-50-90-36-TE60-F7-3 | CXM-6-50-90-36-TE60-F7-2 | |
| 95 | 675 | 630 | 745 | CXM-6-50-95-36-TE60-F7-3 | CXM-6-50-95-36-TE60-F7-2 | |
| 80 | 6500K | 810 | 750 | 890 | CXM-6-65-80-36-TE60-F7-3 | CXM-6-65-80-36-TE60-F7-2 |
| 90 | 725 | 675 | 795 | CXM-6-65-90-36-TE60-F7-3 | CXM-6-65-90-36-TE60-F7-2 | |
Ordering Part Numbers – TE62 Sensus (BBBL) – 9 V/18 V/36V
The following tables describe products with typical flux and minimum flux measured at typical current and specified at Tj = 85°C. The values at 25°C are calculated and shown for reference only.
| Minimum-
CRI² |
CCT | Luminous Flux¹ | Ordering Part Number | |||
| Typical Flux
(85°C) |
Minimum
Flux (85°C) |
Calculated
Typical Flux (25°C) |
3-step MacAdam Ellipse | 2-step MacAdam Ellipse | ||
| 90 | 2700K | 630 | 585 | 695 | CXM-6-27-90-9-TE62-F7-3 | CXM-6-27-90-9-TE62-F7-2 |
| CXM-6-27-90-18-TE62-F7-3 | CXM-6-27-90-18-TE62-F7-2 | |||||
| CXM-6-27-90-36-TE62-F7-3 | CXM-6-27-90-36-TE62-F7-2 | |||||
| 3000K | 670 | 625 | 735 | CXM-6-30-90-9-TE62-F7-3 | CXM-6-30-90-9-TE62-F7-2 | |
| CXM-6-30-90-18-TE62-F7-3 | CXM-6-30-90-18-TE62-F7-2 | |||||
| CXM-6-30-90-36-TE62-F7-3 | CXM-6-30-90-36-TE62-F7-2 | |||||
| 3500K | 685 | 640 | 755 | CXM-6-35-90-9-TE62-F7-3 | CXM-6-35-90-9-TE62-F7-2 | |
| CXM-6-35-90-18-TE62-F7-3 | CXM-6-35-90-18-TE62-F7-2 | |||||
| CXM-6-35-90-9-TE62-F7-3 | CXM-6-35-90-36-TE62-F7-2 | |||||
Ordering Part Numbers – TC61 -36V
The following tables describe products with typical flux and minimum flux measured at 150 mA and specified at Tj = 85°C. The values at 25°C are calculated and shown for reference only.
| MinimumCRI² | CCT | Luminous Flux¹ | Ordering Part Number | ||
| Typical Flux
(85°C) |
Minimum Flux
(85°C) |
Calculated
Typical Flux (25°C) |
3-step MacAdam Ellipse | ||
| 90 | 2700K | 650 | 605 | 715 | CXM-6-27-90-36-TC61-F7-3 |
| 3000K | 680 | 630 | 750 | CXM-6-30-90-36-TC61-F7-3 | |
| 3500K | 695 | 645 | 765 | CXM-6-35-90-36-TC61-F7-3 | |
| 4000K | 710 | 660 | 780 | CXM-6-40-90-36-TC61-F7-3 | |
| 95 | 2700K | 545 | 505 | 600 | CXM-6-27-95-36-TC61-F7-3 |
| 3000K | 580 | 540 | 640 | CXM-6-30-95-36-TC61-F7-3 | |
| 3500K | 600 | 560 | 660 | CXM-6-35-95-36-TC61-F7-3 | |
| 4000K | 635 | 590 | 700 | CXM-6-40-95-36-TC61-F7-3 | |
Absolute Maximum Ratings
9 V
| Parameter | Symbol | Value | Unit | |
| Forward Current | Typical | If typ | 600 | mA |
| Maximum | If max | 1600 | ||
| Power Dissipation | Typical | Pd typ | 5 | W |
| Maximum | Pd max | 15 | ||
| Operating Case Temperature | Maximum | Tc | 120 | °C |
| Junction Temperature | Maximum | T
j |
140 | °C |
18 V
| Parameter | Symbol | Value | Unit | |
| Forward Current | Typical | If typ | 300 | mA |
| Maximum | If max | 800 | ||
| Power Dissipation | Typical | Pd typ | 5 | W |
| Maximum | Pd max | 15 | ||
| Operating Case Temperature | Maximum | Tc | 120 | °C |
| Junction Temperature | Maximum | T
j |
140 | °C |
36 V
| Parameter | Symbol | Value | Unit | |
| Forward Current | Typical | If typ | 150 | mA |
| Maximum | If max | 400 | ||
| Power Dissipation | Typical | Pd typ | 5 | W |
| Maximum | Pd max | 15 | ||
| Operating Case Temperature | Maximum | Tc | 120 | °C |
| Junction Temperature | Maximum | T
j |
140 | °C |
