Description

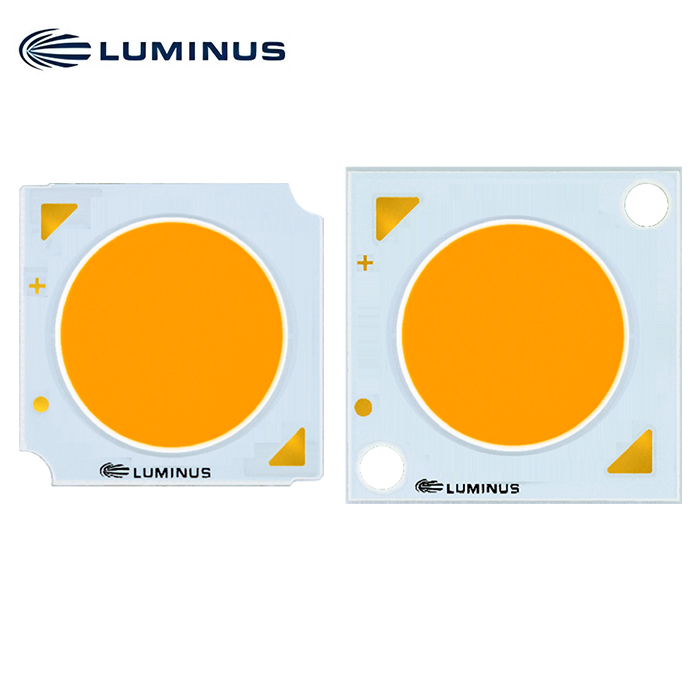

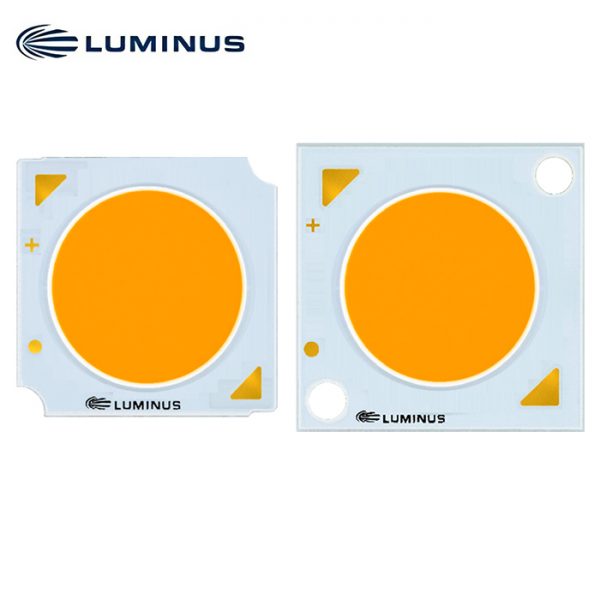

Generation 6 CXM-9 COB Arrays White LED COB
Features
• High lumen output and efficacy typical
• Over 1710 lm, 143 LPW @ 3000K, 90CRI, Tj = 85°C
• CCT range 2200K, 2400K, 2700K, 3000K, 3500K, 4000K, 5000K and 6500K
• 3 SDCM and 2 SDCM color binning standard
• Excellent optical emission uniformity and color over angle consistency
• Superior thermal conductivity for uniform heat spreading
• ENEC certification
Applications
• Spotlights/Track Lights
• Downlights
• Shop Lighting
• Hospitality Lighting
• Architectural and Specialty
• Street Lighting
• Parking Lot and Area Lighting
• Tunnel Lighting
Ordering Part Numbers – TA60-18 V
The following tables describe products with typical flux and minimum flux measured at 720 mA and specified at Tj = 85°C. The values at 25°C are calculated and shown for reference only.
| Minimum-
CRI² |
CCT | Luminous Flux¹ | Ordering Part Number | |||
| Typical Flux
(85°C) |
Minimum
Flux (85°C) |
Calculated
Typical Flux (25°C) |
3-step MacAdam Ellipse | 2-step MacAdam Ellipse | ||
| 80 | 2700K | 1855 | 1725 | 2040 | CXM-9-27-80-18-TA60-F7-3 | CXM-9-27-80-18-TA60-F7-2 |
| 3000K | 1955 | 1820 | 2150 | CXM-9-30-80-18-TA60-F7-3 | CXM-9-30-80-18-TA60-F7-2 | |
| 3500K | 1995 | 1855 | 2190 | CXM-9-35-80-18-TA60-F7-3 | CXM-9-35-80-18-TA60-F7-2 | |
| 4000K | 2035 | 1895 | 2240 | CXM-9-40-80-18-TA60-F7-3 | CXM-9-40-80-18-TA60-F7-2 | |
| 5000K | 2070 | 1925 | 2275 | CXM-9-50-80-18-TA60-F7-3 | CXM-9-50-80-18-TA60-F7-2 | |
Ordering Part Numbers – TA60-36 V
The following tables describe products with typical flux and minimum flux measured at 360 mA and specified at Tj= 85°C. The values at 25°C are calculated and shown for reference only.
| Minimum-
CRI² |
CCT | Luminous Flux (Im)¹ | Ordering Part Number | |||
| Typical Flux
(85°C) |
Minimum
Flux (85°C) |
Calculated
Typical Flux (25°C) |
3-step MacAdam Ellipse | 2-step MacAdam Ellipse | ||
| 90 | 2200K | 1405 | 1305 | 1545 | CXM-9-22-90-36-TA60-F7-3 | CXM-9-22-90-36-TA60-F7-2 |
| 90 | 2400K | 1525 | 1420 | 1680 | CXM-9-24-90-36-TA60-F7-3 | CXM-9-24-90-36-TA60-F7-2 |
| 80 | 2700K | 1855 | 1725 | 2040 | CXM-9-27-80-36-TA60-F7-3 | CXM-9-27-80-36-TA60-F7-2 |
| 90 | 1645 | 1530 | 1810 | CXM-9-27-90-36-TA60-F7-3 | CXM-9-27-90-36-TA60-F7-2 | |
| 95 | 1380 | 1280 | 1515 | CXM-9-27-95-36-TA60-F7-3 | CXM-9-27-95-36-TA60-F7-2 | |
| 80 | 3000K | 1955 | 1820 | 2150 | CXM-9-30-80-36-TA60-F7-3 | CXM-9-30-80-36-TA60-F7-2 |
| 90 | 1710 | 1585 | 1875 | CXM-9-30-90-36-TA60-F7-3 | CXM-9-30-90-36-TA60-F7-2 | |
| 95 | 1455 | 1350 | 1600 | CXM-9-30-95-36-TA60-F7-3 | CXM-9-30-95-36-TA60-F7-2 | |
| 80 | 3500K | 1995 | 1855 | 2190 | CXM-9-35-80-36-TA60-F7-3 | CXM-9-35-80-36-TA60-F7-2 |
| 90 | 1750 | 1625 | 1925 | CXM-9-35-90-36-TA60-F7-3 | CXM-9-35-90-36-TA60-F7-2 | |
| 95 | 1520 | 1410 | 1670 | CXM-9-35-95-36-TA60-F7-3 | CXM-9-35-95-36-TA60-F7-2 | |
| 80 | 4000K | 2035 | 1895 | 2240 | CXM-9-40-80-36-TA60-F7-3 | CXM-9-40-80-36-TA60-F7-2 |
| 90 | 1790 | 1665 | 1970 | CXM-9-40-90-36-TA60-F7-3 | CXM-9-40-90-36-TA60-F7-2 | |
| 95 | 1600 | 1490 | 1760 | CXM-9-40-95-36-TA60-F7-3 | CXM-9-40-95-36-TA60-F7-2 | |
| 80 | 5000K | 2070 | 1925 | 2275 | CXM-9-50-80-36-TA60-F7-3 | CXM-9-50-80-36-TA60-F7-2 |
| 90 | 1785 | 1660 | 1965 | CXM-9-50-90-36-TA60-F7-3 | CXM-9-50-90-36-TA60-F7-2 | |
| 95 | 1680 | 1560 | 1845 | CXM-9-50-95-36-TA60-F7-3 | CXM-9-50-95-36-TA60-F7-2 | |
| 80 | 6500K | 2005 | 1865 | 2205 | CXM-9-65-80-36-TA60-F7-3 | CXM-9-65-80-36-TA60-F7-2 |
| 90 | 1795 | 1670 | 1975 | CXM-9-65-90-36-TA60-F7-3 | CXM-9-65-90-36-TA60-F7-2 | |
Ordering Part Numbers -TC60-36 V
The following tables describe products with typical flux and minimum flux measured at 360 mA and specified at Tj = 85°C. The values at 25°C are calculated and shown for reference only.
| Minimum-
CRI² |
CCT | Luminous Flux (Im)¹ | Ordering Part Number | |||
| Typical Flux
(85°C) |
Minimum
Flux (85°C) |
Calculated
Typical Flux (25°C) |
3-step MacAdam Ellipse | 2-step MacAdam Ellipse | ||
| 90 | 2200K | 1405 | 1305 | 1545 | CXM-9-22-90-36-TC60-F7-3 | CXM-9-22-90-36-TC60-F7-2 |
| 90 | 2400K | 1525 | 1420 | 1680 | CXM-9-24-90-36-TC60-F7-3 | CXM-9-24-90-36-TC60-F7-2 |
| 80 | 2700K | 1855 | 1725 | 2040 | CXM-9-27-80-36-TC60-F7-3 | CXM-9-27-80-36-TC60-F7-2 |
| 90 | 1645 | 1530 | 1810 | CXM-9-27-90-36-TC60-F7-3 | CXM-9-27-90-36-TC60-F7-2 | |
| 95 | 1380 | 1280 | 1515 | CXM-9-27-95-36-TC60-F7-3 | CXM-9-27-95-36-TC60-F7-2 | |
| 80 | 3000K | 1955 | 1820 | 2150 | CXM-9-30-80-36-TC60-F7-3 | CXM-9-30-80-36-TC60-F7-2 |
| 90 | 1710 | 1585 | 1875 | CXM-9-30-90-36-TC60-F7-3 | CXM-9-30-90-36-TC60-F7-2 | |
| 95 | 1455 | 1350 | 1600 | CXM-9-30-95-36-TC60-F7-3 | CXM-9-30-95-36-TC60-F7-2 | |
| 80 | 3500K | 1995 | 1855 | 2190 | CXM-9-35-80-36-TC60-F7-3 | CXM-9-35-80-36-TC60-F7-2 |
| 90 | 1750 | 1625 | 1925 | CXM-9-35-90-36-TC60-F7-3 | CXM-9-35-90-36-TC60-F7-2 | |
| 95 | 1520 | 1410 | 1670 | CXM-9-35-95-36-TC60-F7-3 | CXM-9-35-95-36-TC60-F7-2 | |
| 80 | 4000K | 2035 | 1895 | 2240 | CXM-9-40-80-36-TC60-F7-3 | CXM-9-40-80-36-TC60-F7-2 |
| 90 | 1790 | 1665 | 1970 | CXM-9-40-90-36-TC60-F7-3 | CXM-9-40-90-36-TC60-F7-2 | |
| 95 | 1600 | 1490 | 1760 | CXM-9-40-95-36-TC60-F7-3 | CXM-9-40-95-36-TC60-F7-2 | |
| 80 | 5000K | 2070 | 1925 | 2275 | CXM-9-50-80-36-TC60-F7-3 | CXM-9-50-80-36-TC60-F7-2 |
| 90 | 1785 | 1660 | 1965 | CXM-9-50-90-36-TC60-F7-3 | CXM-9-50-90-36-TC60-F7-2 | |
| 95 | 1680 | 1560 | 1845 | CXM-9-50-95-36-TC60-F7-3 | CXM-9-50-95-36-TC60-F7-2 | |
| 80 | 6500K | 2005 | 1865 | 2205 | CXM-9-65-80-36-TC60-F7-3 | CXM-9-65-80-36-TC60-F7-2 |
| 90 | 1795 | 1670 | 1975 | CXM-9-65-90-36-TC60-F7-3 | CXM-9-65-90-36-TC60-F7-2 | |
Ordering Part Numbers -TC/TA62 Sensus-36 V
The following tables describe products with typical flux and minimum flux measured at 360 mA and specified at Tj = 85°C. The values at 25°C are calculated and shown for reference only.
| Minimum-
CRI² |
CCT | Luminous Flux (Im)¹ | Ordering Part Number | |||
| Typical Flux
(85°C) |
Minimum
Flux (85°C) |
Calculated
Typical Flux (25°C) |
3-step MacAdam Ellipse | 2-step MacAdam Ellipse | ||
| 90 | 2700K | 1565 | 1455 | 1725 | CXM-9-27-90-36-TC62-F7-3 | CXM-9-27-90-36-TC62-F7-2 |
| 1565 | 1455 | 1725 | CXM-9-27-90-36-TA62-F7-3 | CXM-9-27-90-36-TA62-F7-2 | ||
| 3000K | 1660 | 1545 | 1830 | CXM-9-30-90-36-TC62-F7-3 | CXM-9-30-90-36-TC62-F7-2 | |
| 1660 | 1545 | 1830 | CXM-9-30-90-36-TA62-F7-3 | CXM-9-30-90-36-TA62-F7-2 | ||
| 3500K | 1705 | 1585 | 1875 | CXM-9-35-90-36-TC62-F7-3 | CXM-9-35-90-36-TC62-F7-2 | |
| 1705 | 1585 | 1875 | CXM-9-35-90-36-TA62-F7-3 | CXM-9-35-90-36-TA62-F7-2 | ||
Ordering Part Numbers – TC61 -36V
The following tables describe products with typical flux and minimum flux measured at 360 mA and specified at Tj = 85°C. The values at 25°C are calculated and shown for reference only.
| MinimumCRI² | CCT | Luminous Flux¹ | Ordering Part Number | ||
| Typical Flux
(85°C) |
Minimum Flux
(85°C) |
Calculated
Typical Flux (25°C) |
3-step MacAdam Ellipse | ||
| 90 | 2700K | 1605 | 1495 | 1765 | CXM-9-27-90-36-TC61-F7-3 |
| 3000K | 1685 | 1565 | 1855 | CXM-9-30-90-36-TC61-F7-3 | |
| 3500K | 1725 | 1605 | 1900 | CXM-9-35-90-36-TC61-F7-3 | |
| 4000K | 1765 | 1640 | 1940 | CXM-9-40-90-36-TC61-F7-3 | |
| 95 | 2700K | 1360 | 1265 | 1495 | CXM-9-27-95-36-TC61-F7-3 |
| 3000K | 1435 | 1335 | 1580 | CXM-9-30-95-36-TC61-F7-3 | |
| 3500K | 1485 | 1380 | 1635 | CXM-9-35-95-36-TC61-F7-3 | |
| 4000K | 1575 | 1465 | 1735 | CXM-9-40-95-36-TC61-F7-3 | |
Absolute Maximum Ratings
18 V
| Parameter | Symbol | Value | Unit | |
| Forward Current | Typical | If typ | 720 | mA |
| Maximum | If max | 2000 | ||
| Power Dissipation | Typical | Pd typ | 12 | W |
| Maximum | Pd max | 37.4 | ||
| Operating Case Temperature | Maximum | Tc | 120 | °C |
| Junction Temperature | Maximum | T
j |
140 | °C |
36 V
| Parameter | Symbol | Value | Unit | |
| Forward Current | Typical | If typ | 360 | mA |
| Maximum | If max | 1000 | ||
| Power Dissipation | Typical | Pd typ | 12 | W |
| Maximum | Pd max | 37.4 | ||
| Operating Case Temperature | Maximum | Tc | 120 | °C |
| Junction Temperature | Maximum | T
j |
140 | °C |
