Description

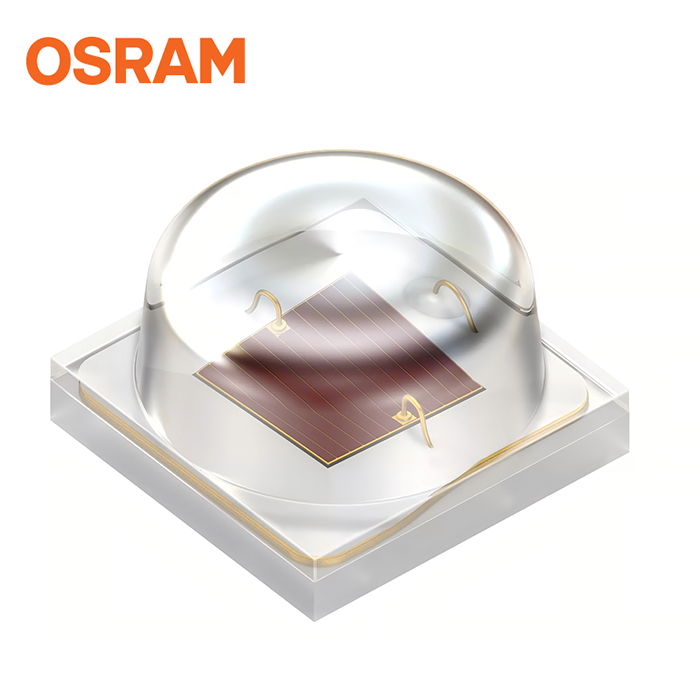

OSLON® Square GH CSBRM4.24
OSLON® Square Hyper Red with the best value for highest PPF/W, is now available with a unique innovative radiation pattern, evenly illuminates plants for uniform growth while reducing number of luminaires and lowering overall cost. Additionally, this high-power LED provides excellent reliability, long lifetime and low thermal resistance in a compact footprint.
Applications
– Agriculture & Horticulture
– Entertainment
– Indoor Lighting
– Outdoor & Industrial Lighting
Features
– Package: SMT ceramic package with silicone lens
– Typ. Radiation: 150°
– ESD: 8 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B)
– Radiant Flux: typ. 1086 mW @ 700mA ; typ. 546 mW @ 350mA
– Radiant Efficiency: typ. 79% @ 700mA; typ. 84% @ 350mA
– Photon Flux: typ. 5.97 umol/s @ 700mA; typ. 3.00 umol/s @ 350mA
– Photon Flux Efficacy: typ. 4.33 umol/J @ 700mA; typ. 4.60 umol/J @ 350mA
– ThinFilm LED chip designed and manufactured in Germany
| Emission Color | Hyper Red (635-666 nm) | Operating Temperature | Top Minimum -40°C/Top Maximum 125°C |
| Power | 1.4 W (High) | Beam Angle | ∢ Typical 140° |
| Dimensions | l Typical 3.0 mm w Typical 3.0 mm h Typical 2.17 mm |
Brightness | Typical ΦV: 59.9 lm Typical IV: 10.3 cd Typical ΦE: 1040 mW Typical IE: 180 mW/sr |
| Product Category | Description | Order Code |
|---|---|---|
| GH CSBRM4.24-V8A2-1-1 | ΦE = 1035 … 1165 mW (IF = 700 mA) | Q65113A6877 |
| GH CSBRM4.24-V9A2-1-1 | ΦE = 1075 … 1165 mW (IF = 700 mA) | Q65113A8148 |
