Description

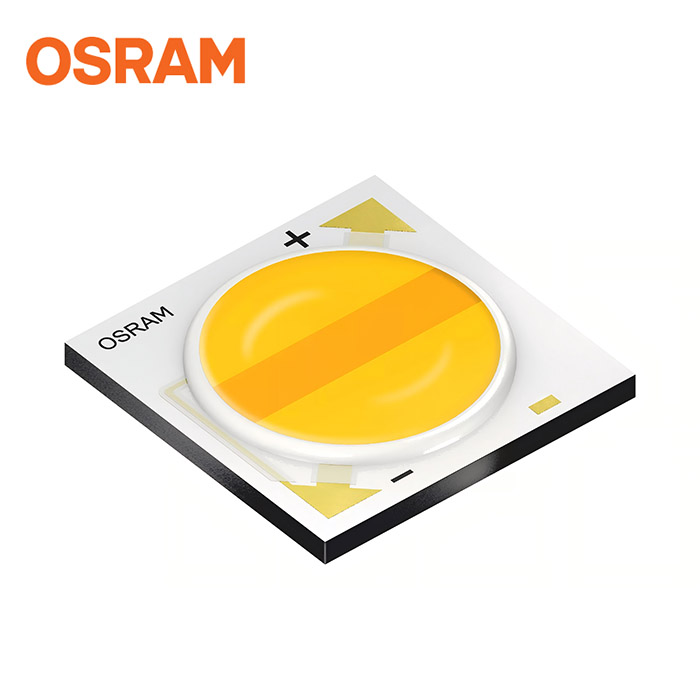

SOLERIQ™ S 9 GW CAFGL1.HM The SOLERIQ™ S products were specifically designed for applications requiring large flux packages out of a compact area.

Applications

– Indoor Lighting

Features

– Package: Chip-on-Board, Ceramic package

– Typ. Radiation: 120° (Lambertian emitter)

– Color temperature: 2700K – CRI: 90 (min.)

– ESD: 2 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)

– Luminous Flux : typ. 1480 lm @ 2700 K, 25 °C

– Luminous Efficacy : typ. 111 lm/W @ 2700 K, 25 °C

Manufacturer: ams OSRAM
Product Category: White LEDs
RoHS:
Product: White CoB LEDs
Mounting Style: PCB
Package / Case: 13.5 mm x 13.5 mm x 1.4 mm
Illumination Color: Warm White
Wavelength/Color Temperature: 2700 K
Luminous Intensity: 496 cd
Luminous Flux/Radiant Flux: 1520 lm
Color Rendering Index – CRI: 90
Viewing Angle: 120 deg
If – Forward Current: 360 mA
Vf – Forward Voltage: 37 V
Power Rating: 13 W
Length: 13.5 mm
Width: 13.5 mm
Height: 1.4 mm
Minimum Operating Temperature: – 40 C
Maximum Operating Temperature: + 105 C
Lens Dimensions: 11.2 mm
Series: GW CAFGL1.HM
Packaging: Tray
Brand: ams OSRAM
Product Type: White LEDs
250
Subcategory: LEDs
Tradename: SOLERIQ
Type: High Power LEDs
Part # Aliases: GW CAFGL1.HM-RSRT-27S3-360-T05 Q65112A8957
