Description

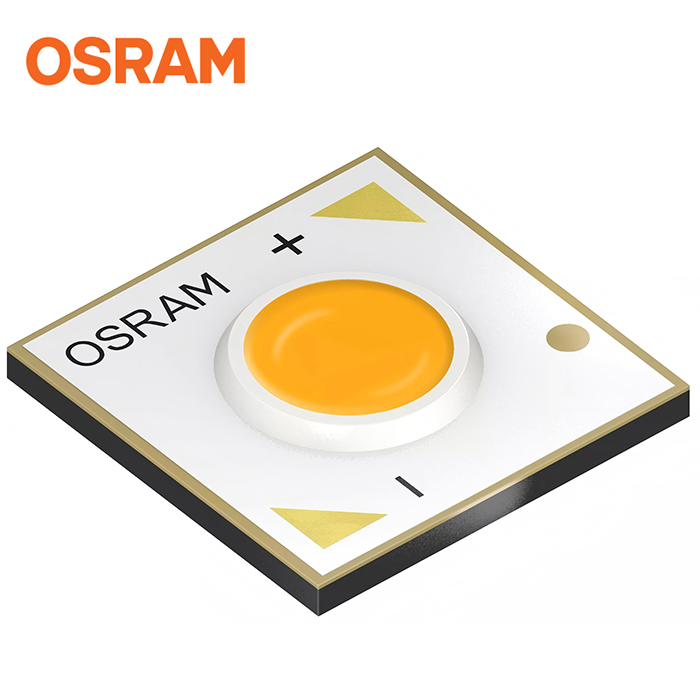

SOLERIQ™ S 6 GW KADGBB.GM
The SOLERIQ™ S products were specifically designed for applications requiring large flux packages out of a compact area.
Applications
– Indoor Lighting
Features
– Package: Chip-on-Board
– Typ. Radiation: 120°
– Color temperature: 2700K – 5000K
– CRI: 96 (min.), 97 (typ.)
– ESD: 2 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)
– Luminous Flux: typ. 1444 lm @ 3000 K, 25 °C
– Luminous efficacy: typ. 103 lm/W @ 3000 K, 25 °C
| Emission Color | White | CRI | 96 |
| Power | 14.0 W (Ultra High) | Beam Angle | ∢ Typical 110° |
| Dimensions | l Typical 13.3 mm w Typical 13.3 mm h Typical 1.5 mm |
Brightness | ΦV 典型值 1420 lm IV 典型值 556 cd ΦE 典型值 5220 mW IE 典型值 2040 mW/sr |
| Operating Temperature | Top Minimum -40°C/Top Maximum 105°C |
| Product Category | Description | Order Code |
|---|---|---|
| GW KADGBB.GM-C1-27A2D2 | ΦV = 1346.0 … 1488.0 lm, 2700 K (IF = 400 mA) | Q65113A7080 |
| GW KADGBB.GM-C13-50A2D2 | ΦV = 1520.0 … 1695.0 lm, 5000 K (IF = 400 mA) | Q65113A9299 |
| GW KADGBB.GM-C2-30A2D2 | ΦV = 1372.0 … 1516.0 lm, 3000 K (IF = 400 mA) | Q65113A7079 |
| GW KADGBB.GM-C3-35A2D2 | ΦV = 1420.0 … 1570.0 lm, 3500 K (IF = 400 mA) | Q65113A7078 |
| GW KADGBB.GM-C4-40A2D2 | ΦV = 1483.0 … 1639.0 lm, 4000 K (IF = 400 mA) | Q65113A7077 |
