Description

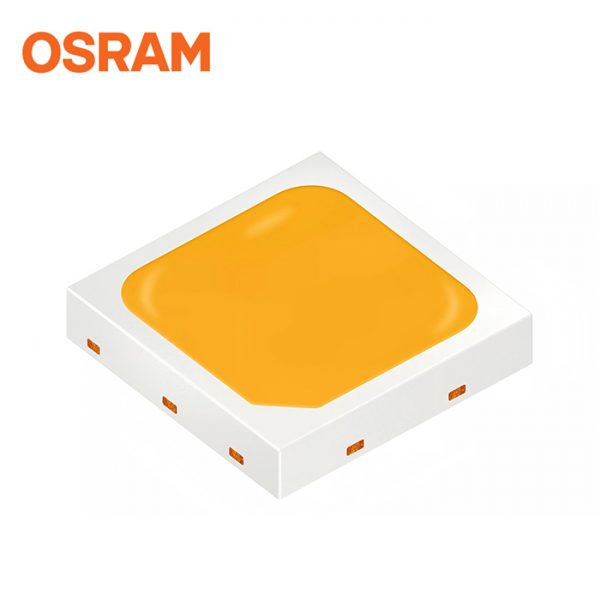

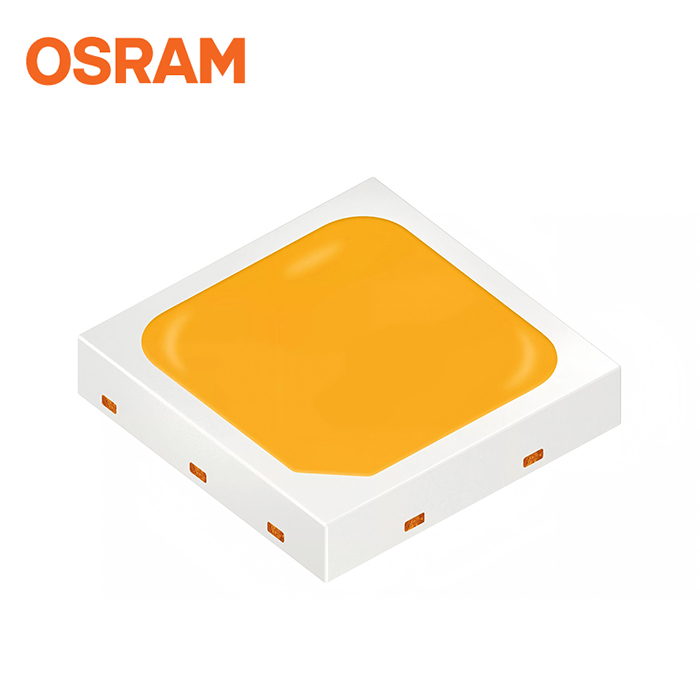

OSCONIQ® E 3030 GW QSLPS1.PM This 6V OSCONIQ E 3030 LED addresses use-cases in various general lighting applications including indoor & outdoor fixtures, area lighting and downlights where high flux is a key requirement.

Features

– Package: white SMT package

– Typ. Radiation: 120° (Lambertian emitter)

– Color temperature: 2700K – 6500K

– CRI: 70 (min.), R9: -40 (min.)

– ESD: 8 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B)

– Color temperature: 2700 K – 6500 K

– Luminous Flux: typ. 168 lm @ 4000 K

– Luminous Efficacy: typ. 181 lm/W @ 4000 K

– Application: Suitable for General Lighting

Manufacturer: ams OSRAM
Product Category: White LEDs
RoHS:
Product: White LEDs
Mounting Style: SMD/SMT
Package / Case: 3030
Illumination Color: White
Wavelength/Color Temperature: 4000 K
Luminous Flux/Radiant Flux: 170 lm
Color Rendering Index – CRI: 70
Viewing Angle: 120 deg
If – Forward Current: 150 mA
Vf – Forward Voltage: 6.19 V
Power Rating: 930 mW
Length: 3 mm
Width: 3 mm
Height: 0.6 mm
Minimum Operating Temperature: – 40 C
Maximum Operating Temperature: + 100 C
Lens Color: Yellow
Lens Shape: Square
Lens Transparency: Non-Diffused
Series: E 3030
Brand: ams OSRAM
Configuration: Single
Moisture Sensitive: Yes
Product Type: White LEDs
4000
Subcategory: LEDs
Tradename: OSCONIQ
Type: High Power LEDs
Part # Aliases: Q65113A7892
