Description

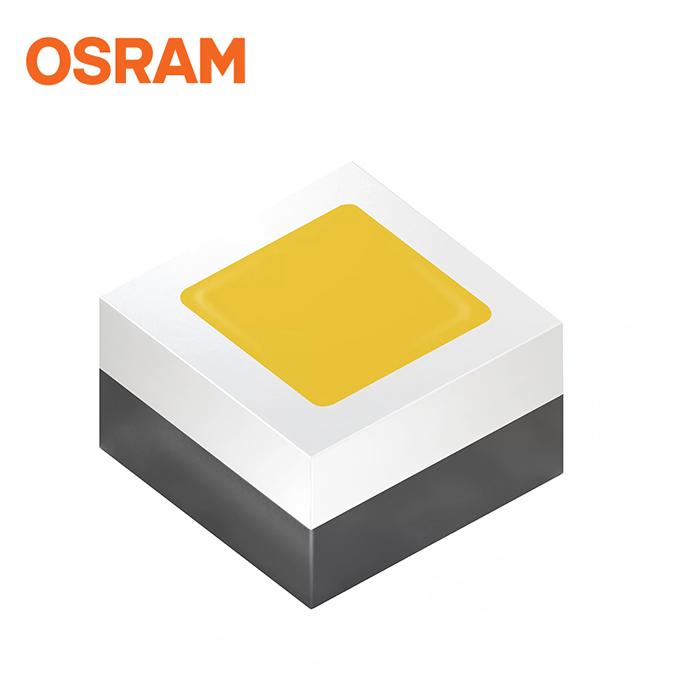

OSLON® Pure 1414 GY VJLPL1.F3
The OSLON Pure ® 1414, one of the best lumen density, excellent efficiency and color homogeneity.
The OSLON Pure ® 1414 come with full color spectrum and color temperature of 1800K to 6500K that enable customer to perform color tuning and tight clustering. It can be use stand alone as well as in cluster together to achieve the spectrum that you need.
Applications
– Appliances & Tools
– Entertainment
– Factory Automation
– Indoor Lighting
– Medical Lighting
– Outdoor & Industrial Lighting
– Projection & Display
– Robotics
Features
– Package: chip level conversion
– Typ. Radiation: 120° (Lambertian emitter)
– ESD: 2 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)
– Luminous Flux: typ. 116 lm @ 25 °C
– Luminous efficacy: typ. 113 lm/W
| Emission Color | Yellow (580-595 nm) | Operating Temperature | Top Minimum -40°C/Top Maximum 100°C |
| Power | 1.0 W (High) | Beam Angle | ∢ Typical 120° |
| Dimensions | l Typical 1.4 mm w Typical 1.4 mm h Typical 0.85 mm |
Brightness | Typical ΦV: 116 lm Typical IV: 39.1 cd Typical ΦE: 311 mW Typical IE: 105 mW/sr |
| Product Category | Description | Order Code |
|---|---|---|
| GY VJLPL1.F3-KULQ-YA-1 | ΦV = 104.2 … 130.0 lm (IF = 350 mA) | Q65113A9119 |
| GY VJLPL1.F3-KULQ-YCYK-1 | ΦV = 104.2 … 130.0 lm (IF = 350 mA) | Q65113A7277 |
