Description

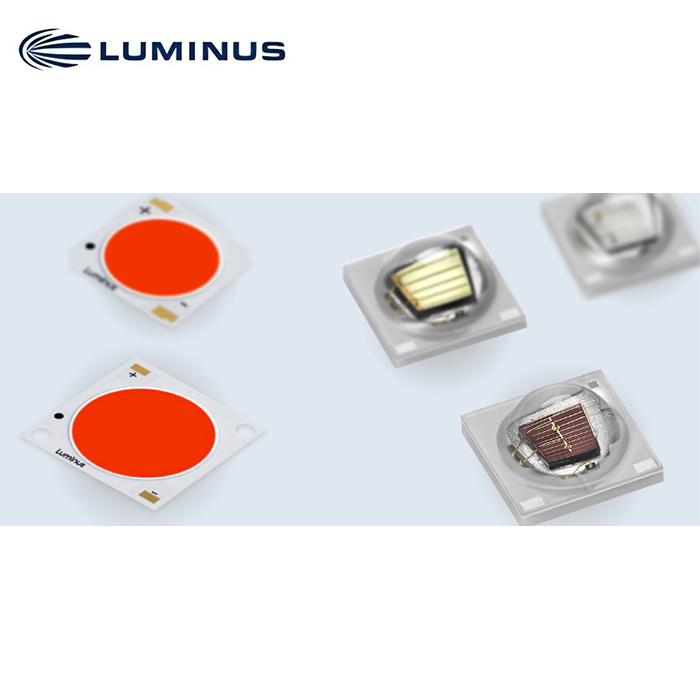

Horticulture LEDS
Luminus Horticulture LEDs offer industry leading performance in term of PPF (Photosynthetic Photon Flux) and PPF/W metrics and come in a variety of package types ranging from mid-power to high power LEDs.
APPLICATIONS
- Top lighting, inter lighting and multi-layer cultivation.
- Urban farming
- Agriculture lighting and algae growth lights
FEATURES
- Extensive range of LED packages with excellent PPF and PPF/W values
- High-power 3535 series offered in 90 and/or 130° viewing angle at 50% Iv
- Low Thermal Resistance
- Built-in ESD Protection
- RoHS and REACh compliant
Overview
- 3535 packaging solution covering wavelengths from UV (365nm) to Far Red (730nm) for high power applications
- Plant-specific spectrums in COB package
- High PPF efficacy mid-power LEDs for cost-constrained horticulture fixtures
SST SERIES SELECTOR GUIDE
| Product Image | Product | Color | Package | Max Drive Current |
Optical Output | Status |
|---|---|---|---|---|---|---|
 |
SST-10-UV | 365 nm | SMT 3.45 mm x 3.45 mm |
1.0 A | 0.7 W – 0.9 W | Active |
| 385 nm | 0.9 W – 1.2 W | |||||
| 395 nm | 0.9 W – 1.2 W | |||||
| 405 nm | 0.8 W – 1.0 W | |||||
 |

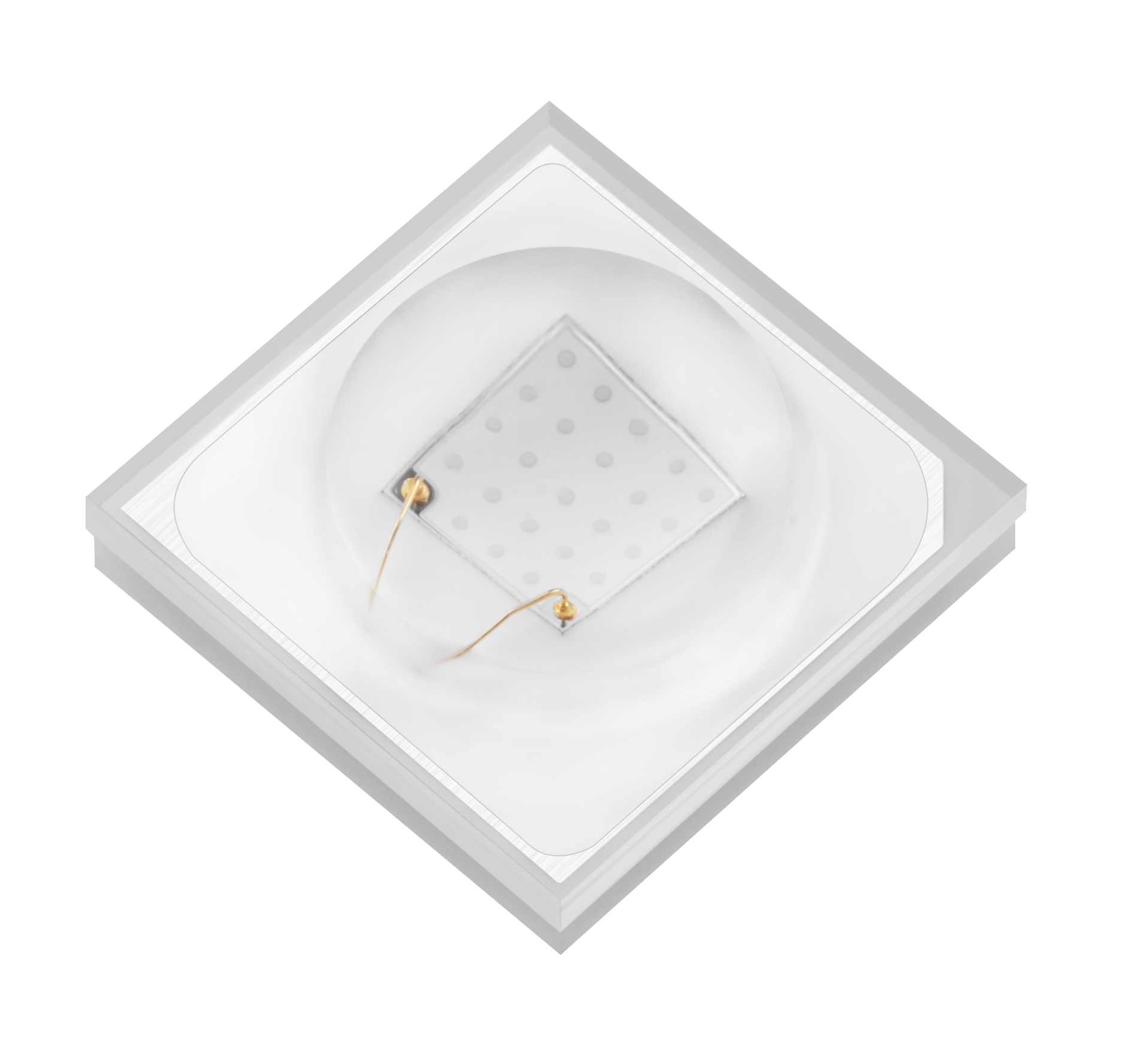

SST-10-B | Blue (452.5 nm) | SMT 3.45 mm x 3.45 mm |
1.5 A | 590 – 750 mW (0.35 A) | Active |
 |
SST-20-B | Blue (450 nm) | SMT 3.45 mm x 3.45 mm |
3.0 A | 630 – 830 mW (0.35 A) | Active |
 |
SST-10-SB | Sky Blue (470 nm) | SMT 3.45 mm x 3.45 mm |
1.5 A | 470 – 590 mW (0.35 A) | Active |
 |
SST-10-G | Green (527 nm) | SMT 3.45 mm x 3.45 mm |
1.5 A | 230 – 390 mW (0.35 A) | Active |
 |
SST-10-R | Red (621 nm) | SMT 3.45 mm x 3.45 mm |
1.5 A | 270 – 430 mW (0.35 A) | Active |
 |
SST-10-DR | Deep Red (660 nm) | SMT 3.45 mm x 3.45 mm |
1.5 A | 270 – 430 mW (0.35 A) | Active |
 |
SST-20-DR Gen 2 | Deep Red (660 nm) | SMT 3.45 mm x 3.45 mm |
2.0 A | 870 – 1070 mW (0.70 A) | Active |
 |
SST-20-DR Gen 3 | Deep Red (660 nm) | SMT 3.45 mm x 3.45 mm |
2.0 A | 990 – 1110 mW (0.70 A) | Active |
 |
SST-10-FR | 730 nm | SMT 3.45 mm x 3.45 mm |
1.5 A (CW) | 1.27 W | Active |
 |
SFT-12R-WES-A (3535 Package) |
White 5000 – 6500 K CRI 70 |
SMT 3.45 mm x 3.45 mm |
3 A | 841 – 938 lm (3 A) | New Product |
 |
SFT-12R-WES-F (5050 Package) |
White 5000 – 6500 K CRI 70 |
SMT 5.0 mm x 5.0 mm |
3 A | 841 – 938 lm (3 A) | New Product |
 |
SFT-25R-WES-A | White 5000 – 6500 K CRI 70 |
SMT 3.45 mm x 3.45 mm |
7.5 A | 1,934 – 2,156 lm (7.5 A) |
New Product |
 |
SFT-25R-WES-F (5050 Package) |
White 5000 – 6500 K CRI 70 |
SMT 5.0 mm x 5.0 mm |
7.5 A | 1,934 – 2,156 lm (7.5 A) |
New Product |
 |
SFT-25R-WG | White 5700K CRI > 90 |
SMT 3.45 mm x 3.45 mm |
5 A | 1,082 – 1,205 lm (5 A) |
New Product |
 |
SFT-40-WxH | White 2700K, 3000 K CRI 95 |
SMT 5.0 mm x 5.0 mm |
4 A | 774 – 905 lm (4 A) | Active |
 |
SFT-40-WES Gen 2 | White 5000 – 6500 K CRI 70 |
SMT 5.0 mm x 5.0 mm |
8 A | 2,250 – 2,500 lm (3 A) | Active |
 |
SFT-40-WxS | White 5000 – 6500 K CRI 70 |
SMT 5.0 mm x 5.0 mm |
8 A | 2,128 – 2,411 lm (8 A) | Discontinued |
 |
SFT-70X-WES Gen 2 | White 5000 – 6500 K CRI 70 |
SMT 5.0 mm x 5.0 mm |
7 A (6 V) 3.5 A (12 V) |
3,632 – 4,128 lm (7 A) | New Product |
|
SFT-70X-WxS | White 5000 – 6500 K CRI 70 |
SMT 5.0 mm x 5.0 mm |
7 A (6 V) 3.5 A (12 V) |
3,494 – 4,025 lm (7 A) | Discontinued |
 |
SFT-90X-W | White 6500K CRI 70 |
SMT 7.00 mm x 7.00 mm |
20 A | 5,176 – 5,889 lm (20 A) | New Product |
 |
SST-12-WxS | White 5000 – 6500 K CRI 70 |
SMT 3.45 mm x 3.45 mm |
2.4 A | 700 – 797 lm (2.4 A) | Active |
 |
SST-12-WxH | White 2700 – 4000 K CRI 95 |
SMT 3.45 mm x 3.45 mm |
1.5 A | 324 – 395 lm (1.5 A) | Active |
 |
SST-20F-W-AL | White 2700 – 6500 K CRI 70, 80, 90, 95 |
SMT 3.55 mm x 3.55 mm |
1.5 A | 367 – 678 lm (1.5 A) | New Product |
 |
SST-20F-W-AH | White 3000K – 6500K CRI 70, 80 |
SMT 3.55 mm x 3.55 mm |
2.5 A | 838 – 1,065 lm (2.5 A) | New Product |
 |
SST-20V-WES | White 4000 – 6500K CRI 70 |
SMT 3.45 mm x 3.45 mm |
3.0 A | 1,078 – 1,189 lm (3.0 A) | New Product |
|
SST-20V-WF | White 3000 – 6500 K CRI > 80 |
SMT 3.45 mm x 3.45 mm |
3.0 A | 950 – 1050 lm (3.0 A) | New Product |
|
SST-20V-WG | White 5000 – 5700 K CRI > 90 |
SMT 3.45 mm x 3.45 mm |
2 A | 633 – 705 lm (2 A) | New Product |
 |
SST-20-WH Gen 2 | White 2700 – 4000 K CRI 95 |
SMT 3.45 mm x 3.45 mm |
2 A | 468 – 621 lm (2 A) | Active |
 |

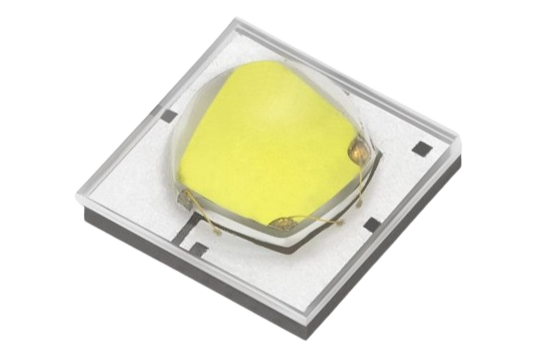

SST-20-WS Gen 2 | White 5000 – 6500 K CRI 70 |
SMT 3.45 mm x 3.45 mm |
3 A | 1,037 – 1,224 lm (3 A) | Active |
 |
SST-20-WxS | White 5000 – 6500 K CRI 70 |
SMT 3.45 mm x 3.45 mm |
3 A | 983 – 1,184 lm (3 A) | Discontinued |
 |
SST-20-WxH | White 2700 – 4000 K CRI 95 |
SMT 3.45 mm x 3.45 mm |
2 A | 426 – 554 lm (2 A) | Active |
 |
SST-25-WES | White 5000 – 6500 K CRI 70 |
SMT 3.55 mm x 3.55 mm |
3.75 A | 1,394 – 1,558 lm (3.75 A) | Active |
 |
SST-36F-W-AL | White 5000 – 6500 K CRI 70 |
SMT 3.55 mm x 3.55 mm |
3.0 A | 1,210 – 1,353 lm (3.0 A) | New Product |
 |
SST-40-WS Gen 2 | White 5000 – 6500 K CRI 70 |
SMT 5.0 mm x 5.0 mm |
6 A | 1,978 – 2,225 lm (6 A) | Active |
COB SERIES SELECTOR GUIDE
| Product Image | Product | Color | Package | Max Drive Current |
Optical Output | Status |
|---|---|---|---|---|---|---|
 |
CXM-14 | Purple | COB package 19 mm * 19 mm (AC) 14.3 mm LES |
1,440 mA | 40 ~ 72 (μmol/s) | Active |
 |
CXM-14 | Plant White | COB package 19 mm * 19 mm (AC) 14.3 mm LES |
1,440 mA | 40 ~ 72 (μmol/s) | Active |
 |
CLM-22 | Purple | COB package 28 mm * 28 mm (AC) 22 mm LES |
2,200 mA | 60 ~ 115 (μmol/s) | Active |
 |
CLM-22 | Plant White | COB package 28 mm * 28 mm (AC) 22 mm LES |
2,200 mA | 60 ~ 115 (μmol/s) | Active |
 |
CXM-22 | Purple | COB package 28 mm * 28 mm (AC) 22 mm LES |
2,200 mA | 90 ~ 165 (μmol/s) | Active |
 |
CXM-22 | Plant White | COB package 28 mm * 28 mm (AC) 22 mm LES |
2,200 mA | 90 ~ 165 (μmol/s) | Active |
 |
CXM-32 | Plant White | COB package 38 mm * 38 mm (AC) 32 mm LES |
4,400 mA | 200 ~ 360 (μmol/s) | Active |
SPECIALTY ILLUMINATION SERIES SELECTOR GUIDE
| Product Image | Package Platform | Voltage (V) | Current (mA) | Input Power (W) | TYP FLUX (lm), 3000k, 80CRI |
TYP lm/W, 3000k, 80CRI |
|---|---|---|---|---|---|---|
 |
NEW
MP-3030-110H |
2.8 | 65 | 0.182 | 33 | 181 |
 |
NEW
MP-3030-12ZH |
2.67 | 65 | 0.173 | 33.5 | 193 |
 |
NEW
MP-3030-210H |
6.0 | 150 | 0.9 | 140 | 156 |
 |
MP-5050-8100 | 24 | 200 | 4.8 | 630 | 131 |
 |
NEW
CUBE-1616-1103 |
3.0 | 150 | 0.45 | 62 | 138 |
|
NEW
CUBE-1616-2103 |
6.0 | 150 | 1.0 | 118 | 131 |
