Description

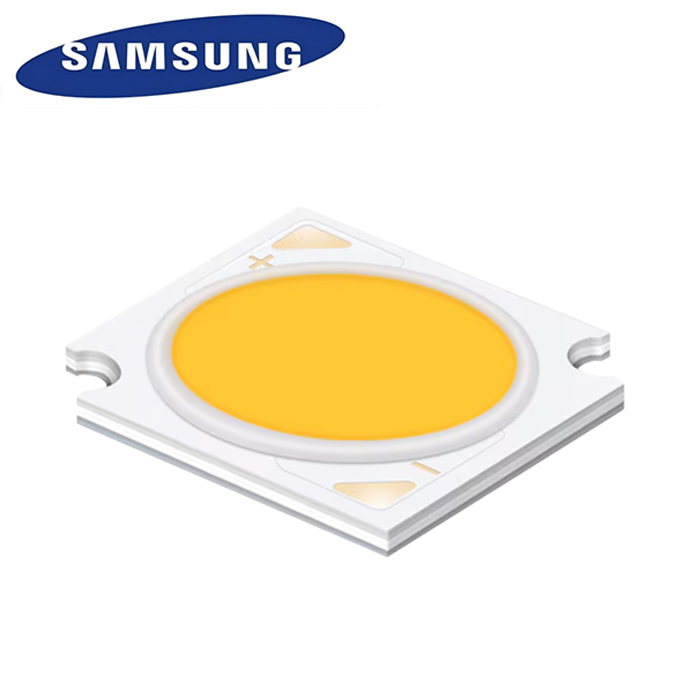

High Voltage LED Series Chip on Board-COB D-Gen.3
- 9 W class COB LED
- 2, 3-step MacAdam ellipse
- Size: 13.5 x 13.5 mm
Features & Benefits
• Chip on Board (COB) solution makes it easy to design in
• Simple assembly reduces manufacturing cost
• Low thermal resistance
• InGaN/GaN MQW LED with long time reliability
Applications
• Spotlight / Downlight
• LED Retrofit Bulbs
• Outdoor Illumination
| CRI | CCT | PART NUMBER | LUMINOUS FLUX (lm) @ 270 mA | ||
|---|---|---|---|---|---|
| BIN | MIN | TYP | |||
| 70 | 3000K | SPHWHAHDNC23YZV2DC SPHWHAHDNC23YZV3DC |
DC | 1491 | 1586 |
| 4000K | SPHWHAHDNC23YZT2DC SPHWHAHDNC23YZT3DC |
DC | 1513 | 1610 | |
| 5000K | SPHWHAHDNC23YZR2DC SPHWHAHDNC23YZR3DC |
DC | 1528 | 1625 | |
| 80 | 2700K | SPHWHAHDNC25YZW1DC SPHWHAHDNC25YZW2DC SPHWHAHDNC25YZW3DC |
DC | 1322 | 1406 |
| 3000K | SPHWHAHDNC25YZV1DC SPHWHAHDNC25YZV2DC SPHWHAHDNC25YZV3DC |
DC | 1375 | 1463 | |
| 3500K | SPHWHAHDNC25YZU1DC SPHWHAHDNC25YZU2DC SPHWHAHDNC25YZU3DC |
DC | 1428 | 1519 | |
| 4000K | SPHWHAHDNC25YZT1DC SPHWHAHDNC25YZT2DC SPHWHAHDNC25YZT3DC |
DC | 1457 | 1550 | |
| 5000K | SPHWHAHDNC25YZR2DC SPHWHAHDNC25YZR3DC |
DC | 1481 | 1576 | |
| 5700K | SPHWHAHDNC25YZQ2DC SPHWHAHDNC25YZQ3DC |
DC | 1462 | 1555 | |
| 6500K | SPHWHAHDNC25YZP2DC SPHWHAHDNC25YZP3DC |
DC | 1437 | 1529 | |
| 90 | 2700K | SPHWHAHDNC27YZW1DC SPHWHAHDNC27YZW2DC SPHWHAHDNC27YZW3DC |
DC | 1119 | 1190 |
| 3000K | SPHWHAHDNC27YZV1DC SPHWHAHDNC27YZV2DC SPHWHAHDNC27YZV3DC |
DC | 1179 | 1254 | |
| 3500K | SPHWHAHDNC27YZU1DC SPHWHAHDNC27YZU2DC SPHWHAHDNC27YZU3DC |
DC | 1217 | 1294 | |
| 4000K | SPHWHAHDNC27YZT1DC SPHWHAHDNC27YZT2DC SPHWHAHDNC27YZT3DC |
DC | 1243 | 1322 | |
| 5000K | SPHWHAHDNC27YZR2DC SPHWHAHDNC27YZR3DC |
DC | 1267 | 1348 | |
