Description

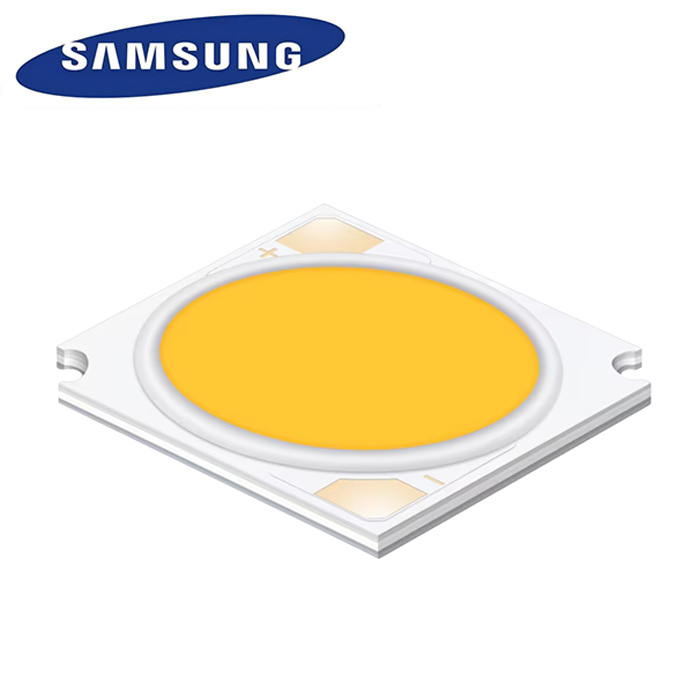

High Voltage LED Series Chip on Board–COB D-Gen.3 Plus
- 80 W class COB LED
- 2, 3-step MacAdam ellipse
- Size: 28.0 x 28.0 mm
Features & Benefits
• Chip on Board (COB) solution makes it easy to design in
• Simple assembly reduces manufacturing cost
• Low thermal resistance
• InGaN/GaN MQW LED with long time reliability
Applications
• Spotlight / Downlight
• LED Retrofit Bulbs
• Outdoor Illumination
| CRI | CCT | PART NUMBER | LUMINOUS FLUX (lm) @ 1620 mA | ||
|---|---|---|---|---|---|
| BIN | MIN | TYP | |||
| 70 | 3000K | SPHWHAHDNM231ZV2DC SPHWHAHDNM231ZV3DC |
DC | 13242 | 14087 |
| 4000K | SPHWHAHDNM231ZT2DC SPHWHAHDNM231ZT3DC |
DC | 13433 | 14290 | |
| 5000K | SPHWHAHDNM231ZR2DC SPHWHAHDNM231ZR3DC |
DC | 13582 | 14449 | |
| 80 | 2700K | SPHWHAHDNM251ZW1DC SPHWHAHDNM251ZW2DC SPHWHAHDNM251ZW3DC |
DC | 11738 | 12487 |
| 3000K | SPHWHAHDNM251ZV1DC SPHWHAHDNM251ZV2DC SPHWHAHDNM251ZV3DC |
DC | 12211 | 12990 | |
| 3500K | SPHWHAHDNM251ZU1DC SPHWHAHDNM251ZU2DC SPHWHAHDNM251ZU3DC |
DC | 12683 | 13492 | |
| 4000K | SPHWHAHDNM251ZT1DC SPHWHAHDNM251ZT2DC SPHWHAHDNM251ZT3DC |
DC | 12911 | 13735 | |
| 5000K | SPHWHAHDNM251ZR2DC SPHWHAHDNM251ZR3DC |
DC | 13123 | 13961 | |
| 5700K | SPHWHAHDNM251ZQ2DC SPHWHAHDNM251ZQ3DC |
DC | 12941 | 13767 | |
| 6500K | SPHWHAHDNM251ZP2DC SPHWHAHDNM251ZP3DC |
DC | 12770 | 13585 | |
| 90 | 2700K | SPHWHAHDNM271ZW1DC SPHWHAHDNM271ZW2DC SPHWHAHDNM271ZW3DC |
DC | 9955 | 10590 |
| 3000K | SPHWHAHDNM271ZV1DC SPHWHAHDNM271ZV2DC SPHWHAHDNM271ZV3DC |
DC | 10471 | 11139 | |
| 3500K | SPHWHAHDNM271ZU1DC SPHWHAHDNM271ZU2DC SPHWHAHDNM271ZU3DC |
DC | 10805 | 11495 | |
| 4000K | SPHWHAHDNM271ZT1DC SPHWHAHDNM271ZT2DC SPHWHAHDNM271ZT3DC |
DC | 11038 | 11743 | |
| 5000K | SPHWHAHDNM271ZR2DC SPHWHAHDNM271ZR3DC |
DC | 11255 | 11974 | |
