Description

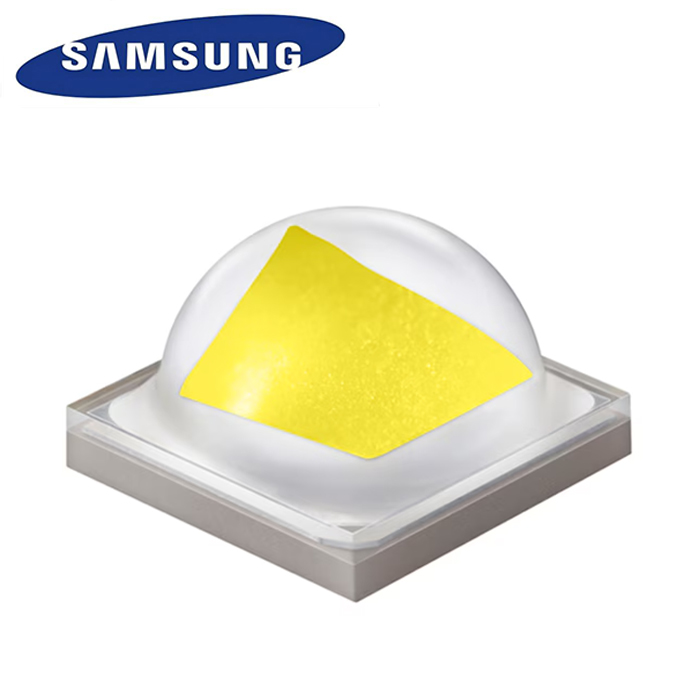

High Power LED Series 3535 Ceramic Hot Binning–LH351C
- Wattage (Max) : 6.0 W @ 2.0 A
- Luminous Flux: 351 lm @ 700 mA
- Luminous Efficacy: 178 lm/W
Features & Benefits
• Operates at a maximum current of up to 2 A
• Uniform light distribution under any beam angle
• 90 CRI makes it well suited for most applications
• Hot binning @ 85 ºC
Applications
• Indoor Lighting: Spotlight, Downlight
• Outdoor Lighting: Street Light, Tunnel Light, Security Light, Area Light, Stadium/Arena Light
• Industrial Lighting: High Bay Light, Low Bay Light
• Consumer Lighting: Torch Light
High efficacy and high quality color rendering makes the LH351C suitable use in a broad range of applications
| CRI | CCT | PART NUMBER | LUMINOUS FLUX (lm) @ 700 mA | ||
|---|---|---|---|---|---|
| BIN | MIN | MAX | |||
| 70 | 2200K | SPHWHTL3D50CE4Y☆MF | MF | 250 | 290 |
| 2700K | SPHWHTL3D50CE4W☆NF SPHWHTL3D50CE4W☆PF |
NF PF |
270 290 |
310 330 |
|
| 3000K | SPHWHTL3D50CE4V☆NF SPHWHTL3D50CE4V☆PF SPHWHTL3D50CE4V☆QF |
NF PF QF |
270 290 310 |
310 330 350 |
|
| 3500K | SPHWHTL3D50CE4U☆PF SPHWHTL3D50CE4U☆QF |
PF QF |
290 310 |
330 350 |
|
| 4000K | SPHWHTL3D50CE4T☆QF SPHWHTL3D50CE4T☆RF |
QF RF |
310 330 |
350 370 |
|
| 5000K | SPHWHTL3D50CE4R◇PF SPHWHTL3D50CE4R◇QF SPHWHTL3D50CE4R◇RF |
PF QF RF |
290 310 330 |
330 350 370 |
|
| 5700K | SPHWHTL3D50CE4Q◇QF SPHWHTL3D50CE4Q◇RF |
QF RF |
310 330 |
350 370 |
|
| 6500K | SPHWHTL3D50CE4P◇PF SPHWHTL3D50CE4P◇QF |
PF QF |
290 310 |
330 350 |
|
| 75 | 3000K | SPHWHTL3D50DE4V☆PF | PF | 290 | 330 |
| 3500K | SPHWHTL3D50DE4U☆PF | PF | 290 | 330 | |
| 4000K | SPHWHTL3D50DE4T☆PF | PF | 290 | 330 | |
| 5000K | SPHWHTL3D50DE4R◇PF SPHWHTL3D50DE4R◇QF |
PF QF |
290 310 |
330 350 |
|
| 5700K | SPHWHTL3D50DE4Q◇PF SPHWHTL3D50DE4Q◇QF |
PF QF |
290 310 |
330 350 |
|
| 80 | 2700K | SPHWHTL3D50EE4W☆MF SPHWHTL3D50EE4W☆NF |
MF NF |
250 270 |
290 310 |
| 3000K | SPHWHTL3D50EE4V☆NF SPHWHTL3D50EE4V☆PF |
NF PF |
270 290 |
310 330 |
|
| 3500K | SPHWHTL3D50EE4U☆NF SPHWHTL3D50EE4U☆P |
NF PF |
270 290 |
310 330 |
|
| 4000K | SPHWHTL3D50EE4T☆PF SPHWHTL3D50EE4T☆QF |
PF QF |
290 310 |
330 350 |
|
| 5000K | SPHWHTL3D50EE4R◇PF SPHWHTL3D50EE4R◇QF |
PF QF |
290 310 |
330 350 |
|
| 5700K | SPHWHTL3D50EE4Q◇PF SPHWHTL3D50EE4Q◇QF |
PF QF |
290 310 |
330 350 |
|
| 90 | 2700K | SPHWHTL3D50GE4W☆HF SPHWHTL3D50GE4W☆JF |
HF JF |
190 210 |
230 250 |
| 3000K | SPHWHTL3D50GE4V☆JF | JF | 210 | 250 | |
| 3500K | SPHWHTL3D50GE4U☆JF SPHWHTL3D50GE4U☆KF |
JF KF |
210 230 |
250 270 |
|
| 4000K | SPHWHTL3D50GE4T☆JF SPHWHTL3D50GE4T☆KF |
JF KF |
210 230 |
250 270 |
|
| 5000K | SPHWHTL3D50GE4R◇KF SPHWHTL3D50GE4R◇MF |
KF MF |
230 250 |
290 310 |
|
| 5700K | SPHWHTL3D50GE4Q◇KF SPHWHTL3D50GE4Q◇MF |
KF MF |
230 250 |
270 290 |
|
