Description

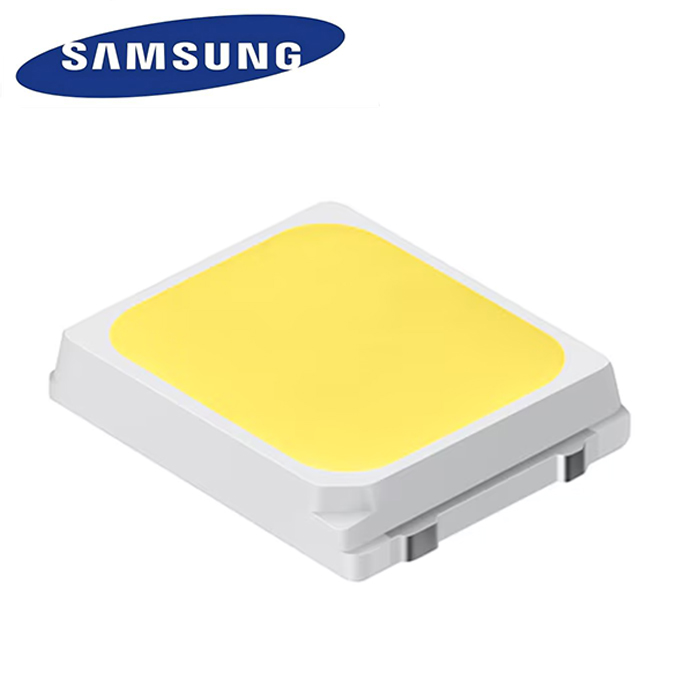

Middle Power LED Series 2835 0.2W 3V Ra80
- 0.2 W, 3 V mid power LED
- Luminous Flux: 26.5 lm @ 60 mA
- Luminous Efficacy: 150 lm/W
- 0.2W Class mid power LED
- Standard form factor for design flexibility (2.8 × 3.5 x 0.7mm)
| CRI | CCT | PART NUMBER | LUMINOUS FLUX (lm) @ 60 mA | ||
|---|---|---|---|---|---|
| BIN | MIN | MAX | |||
| 80+ | 2700K | SPMWH22286D5WAW0S2 SPMWH22286D5WAW0S3 |
S2 S3 |
22.5 25.5 |
24.5 27.5 |
| 3000K | SPMWH22286D5WAV0S2 SPMWH22286D5WAV0S3 |
S2 S3 |
23.5 26.5 |
25.5 28.5 |
|
| 3500K | SPMWH22286D5WAU0S2 SPMWH22286D5WAU0S3 |
S2 S3 |
24.0 27.0 |
26.0 29.0 |
|
| 4000K | SPMWH22286D5WAT0S2 SPMWH22286D5WAT0S3 |
S2 S3 |
25.0 28.0 |
27.0 30.0 |
|
| 5000K | SPMWH22286D5WAR0S2 SPMWH22286D5WAR0S3 |
S2 S3 |
25.5 28.5 |
27.5 30.5 |
|
| 5700K | SPMWH22286D5WAQ0S2 SPMWH22286D5WAQ0S3 |
S2 S3 |
25.5 28.0 |
27.5 30.0 |
|
| 6500K | SPMWH22286D5WAP0S2 SPMWH22286D5WAP0S3 |
S2 S3 |
24.5 28.0 |
26.5 30.0 |
|
| 90+ | 2700K | SPMWH22286D7WAW0S2 SPMWH22286D7WAW0S3 |
S2 S3 |
19.0 21.5 |
20.5 23.0 |
| 3000K | SPMWH22286D7WAV0S2 SPMWH22286D7WAV0S3 |
S2 S3 |
19.5 22.5 |
21.0 24.0 |
|
| 3500K | SPMWH22286D7WAU0S2 SPMWH22286D7WAU0S3 |
S2 S3 |
20.0 23.0 |
21.5 24.5 |
|
| 4000K | SPMWH22286D7WAT0S2 SPMWH22286D7WAT0S3 |
S2 S3 |
21.0 24.0 |
22.5 25.5 |
|
| 5000K | SPMWH22286D7WAR0S2 SPMWH22286D7WAR0S3 |
S2 S3 |
21.5 24.5 |
23.0 26.0 |
|
| 5700K | SPMWH22286D7WAQ0S2 SPMWH22286D7WAQ0S3 |
S2 S3 |
21.5 24.0 |
23.0 25.5 |
|
| 6500K | SPMWH22286D7WAP0S2 SPMWH22286D7WAP0S3 |
S2 S3 |
21.0 24.0 |
22.5 25.5 |
|
