Description

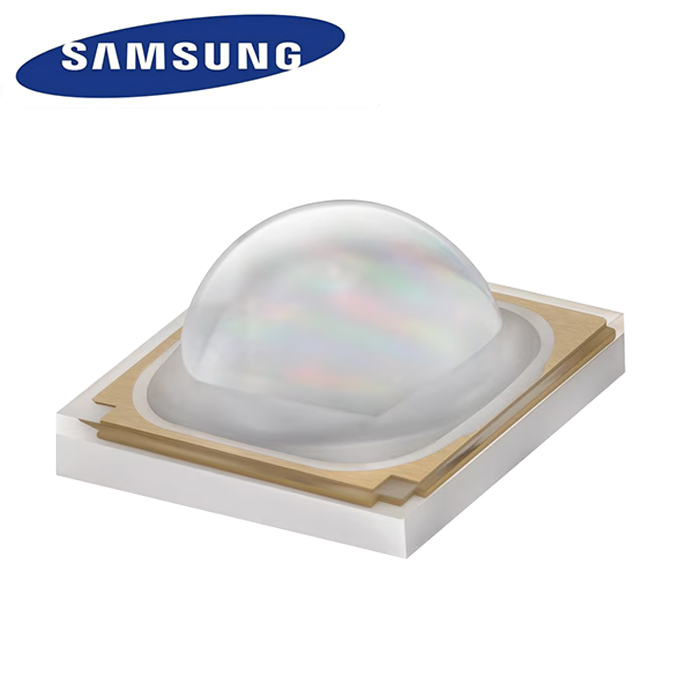

High Power LED Series 3535 Ceramic–LH351H 450nm Blue
- Horticulture Lighting Solution
- High Performance 450 nm Royal Blue
- 2.80 μmol/s, 2.86 μmol/J @ 350 mA, 25°C
Features & Benefits
- Package : 2pad design package with Al2O3
- Dimension : 3.5 mm X 3.5 mm
- Operates at a maximum current of up to 1.5 A
Applications
- Horticulture
| Type | Description |
|---|---|
| Category | Optoelectronics–LED Color Lighting |
| Mfr | Samsung Semiconductor, Inc. |
| Series | LH351H |
| Packaging | Tape & Reel (TR) |
| Part Status | Obsolete |
| Color | Blue |
| Wavelength | 454nm |
| Current – Test | 350mA |
| Voltage – Forward (Vf) (Typ) | 2.86V |
| Lumens/Watt @ Current – Test | – |
| Current – Max | 1A |
| Luminous Flux @ Current/Temperature | – |
| Temperature – Test | 25°C |
| Viewing Angle | 130° |
| Mounting Type | Surface Mount |
| Package / Case | – |
| Supplier Device Package | – |
| Size / Dimension | 0.138″ L x 0.138″ W (3.50mm x 3.50mm) |
| Height – Seated (Max) | 0.078″ (1.98mm) |
| Thermal Resistance of Package | – |
| Base Product Number | SPHBL1 |
