Description

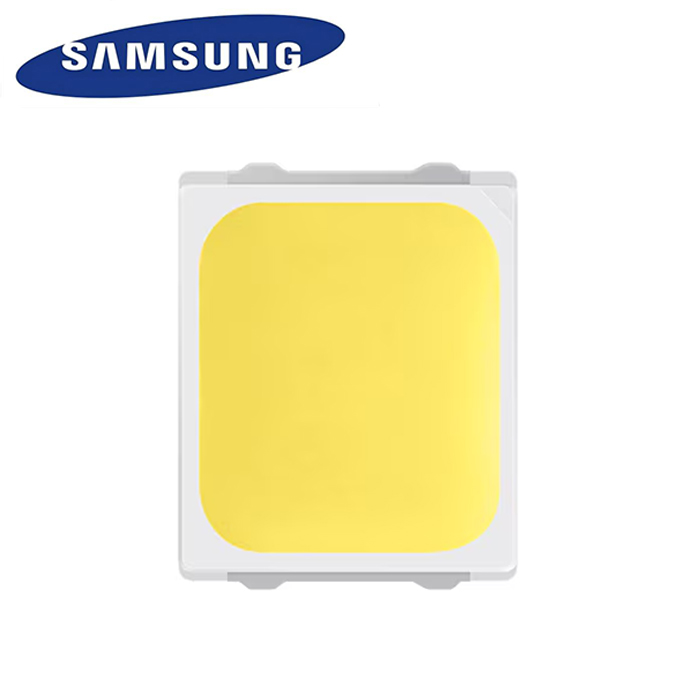

Middle Power LED Series 2835 6V Hot temp CIE
- 0.9 W, 6 V mid power LED
- Luminous Flux: 118 lm @ 150 mA
- Luminous Efficacy: 128 lm/W
- 0.9W Class mid power LED
- Standard form factor for design flexibility (2.8 × 3.5mm)
| CRI | CCT | PART NUMBER | LUMINOUS FLUX (lm) @ 150 mA | ||
|---|---|---|---|---|---|
| BIN | MIN | MAX | |||
| 80+ | 2700K | SPMWH1221FQ5GBW0SA SPMWH1221FQ5GBW0SB |
SA SB |
111 121 |
121 131 |
| 3000K | SPMWH1221FQ5GBV0SA SPMWH1221FQ5GBV0SB |
SA SB |
115 125 |
125 135 |
|
| 3500K | SPMWH1221FQ5GBU0SA SPMWH1221FQ5GBU0SB |
SA SB |
117 127 |
127 137 |
|
| 4000K | SPMWH1221FQ5GBT0SA SPMWH1221FQ5GBT0SB |
SA SB |
121 131 |
131 141 |
|
| 5000K | SPMWH1221FQ5GBR0SA SPMWH1221FQ5GBR0SB |
SA SB |
123 133 |
133 143 |
|
| 5700K | SPMWH1221FQ5GBQ0SA SPMWH1221FQ5GBQ0SB |
SA SB |
122 132 |
132 142 |
|
| 6500K | SPMWH1221FQ5GBP0SA SPMWH1221FQ5GBP0SB |
SA SB |
121 131 |
131 141 |
|
| 90+ | 2700K | SPMWH1221FQ7GBW0SA SPMWH1221FQ7GBW0SB |
SA SB |
93 103 |
103 113 |
| 3000K | SPMWH1221FQ7GBV0SA SPMWH1221FQ7GBV0SB |
SA SB |
97 107 |
107 117 |
|
| 3500K | SPMWH1221FQ7GBU0SA SPMWH1221FQ7GBU0SB |
SA SB |
98 108 |
108 118 |
|
| 4000K | SPMWH1221FQ7GBT0SA SPMWH1221FQ7GBT0SB |
SA SB |
102 112 |
112 122 |
|
| 5000K | SPMWH1221FQ7GBR0SA SPMWH1221FQ7GBR0SB |
SA SB |
103 113 |
113 123 |
|
| 5700K | SPMWH1221FQ7GBQ0SA SPMWH1221FQ7GBQ0SB |
SA SB |
102 112 |
112 122 |
|
| 6500K | SPMWH1221FQ7GBP0SA SPMWH1221FQ7GBP0SB |
SA SB |
102 112 |
112 122 |
|
