Description

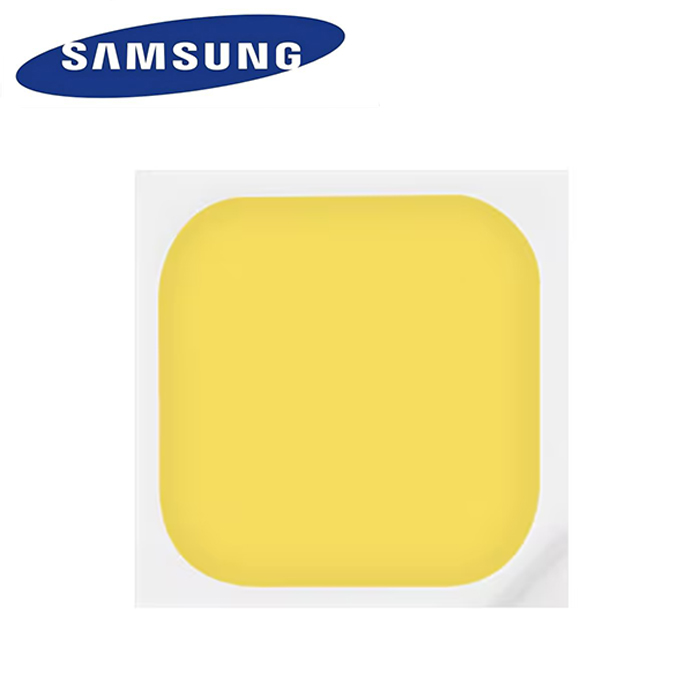

Middle Power LED Series 3030–LM302N DAY
- Energizing Lighting Solution
- Maximization of Melanopic Ratio
- Fine Tuned-spectrum for More Energizing Effect
- 0.9 W class middle power LED
- EMC resin for high reliability
- Standard form factor for design flexibility (3.0 × 3.0 mm)
- Human-centric lighting
| CRI | CCT | PART NUMBER | MDER | LUMINOUS FLUX (lm) @ 150 mA | ||
|---|---|---|---|---|---|---|
| BIN | MIN | MAX | ||||
| 80+ | 3000K | SPMWH3326FC5FAV☆S0 | 0.59 | S0 | 110 | 125 |
| 3500K | SPMWH3326FC5FAU☆S0 | 0.67 | S0 | 110 | 125 | |
| 4000K | SPMWH3326FC5FAT☆S0 | 0.76 | S0 | 115 | 130 | |
| 5000K | SPMWH3326FC5FAR☆S0 | 0.93 | S0 | 115 | 130 | |
| 5700K | SPMWH3326FC5FAQ☆S0 | 1.03 | S0 | 115 | 130 | |
| 6500K | SPMWH3326FC5FAP☆S0 | 1.12 | S0 | 115 | 130 | |
| CRI | CCT | PART NUMBER | MDER | LUMINOUS FLUX (lm) @ 65 mA | ||
|---|---|---|---|---|---|---|
| BIN | MIN | MAX | ||||
| S90 | 2700K | SPMWH3326MCKFAW◌S0 | 0.455 | S0 | 50 | 65 |
| 3000K | SPMWH3326MCKFAV◌S0 | 0.571 | S0 | 50 | 65 | |
| 3500K | SPMWH3326MCKFAU◌S0 | 0.659 | S0 | 50 | 65 | |
| 4000K | SPMWH3326MCKFAT◌S0 | 0.729 | S0 | 50 | 65 | |
| 5000K | SPMWH3326MCKFAR◌S0 | 0.865 | S0 | 55 | 70 | |
| 5700K | SPMWH3326MCKFAQ◌S0 | 0.927 | S0 | 55 | 70 | |
| 6500K | SPMWH3326MCKFAP◌S0 | 1.028 | S0 | 55 | 70 | |
