Description

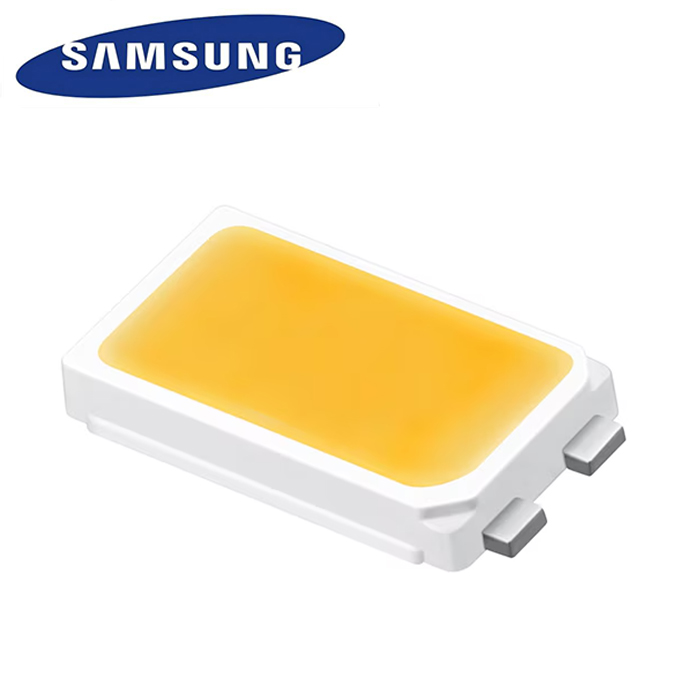

Middle Power LED Series 5630–LM561B Plus CRI 90
- 0.2 W, 3 V mid power LED
- Luminous Flux: 36 lm @ 65 mA
- Luminous Efficacy: 192 lm/W
- 0.3 W class middle power LED
- Mold resin for high reliability
- Standard form factor for design flexibility (5.6 × 3.0 mm)
|
CRI |
CCT | PART NUMBER | LUMINOUS FLUX (lm) @ 65 mA | ||
|---|---|---|---|---|---|
| BIN | MIN | MAX | |||
| 70+ | 2700K | SPMWHT541MP3WAW☆S0 | S5 S6 S7 |
32.0 34.0 36.0 |
34.0 36.0 38.0 |
| 3000K | SPMWHT541MP3WAV☆S0 | S5 S6 S7 |
32.5 34.5 36.5 |
34.5 36.5 38.5 |
|
| 3500K | SPMWHT541MP3WAU☆S0 | S5 S6 S7 |
33.0 35.0 37.0 |
35.0 37.0 39.0 |
|
| 4000K | SPMWHT541MP3WAT☆S0 | S5 S6 S7 |
34.0 36.0 38.0 |
36.0 38.0 40.0 |
|
| 5000K | SPMWHT541MP3WAR☆S0 | S4 S5 S6 |
33.0 35.0 37.0 |
35.0 37.0 39.0 |
|
| 80+ | 2700K | SPMWHT541MP5W◆W☆S0 | S4 S5 |
30.0 32.0 |
32.0 34.0 |
| 3000K | SPMWHT541MP5W◆V☆S0 | S4 S5 S6 |
30.5 32.5 34.5 |
32.5 34.5 36.5 |
|
| 3500K | SPMWHT541MP5W◆U☆S0 | S4 S5 S6 |
31.0 33.0 35.0 |
33.0 35.0 37.0 |
|
| 4000K | SPMWHT541MP5W◆T☆S0 | S4 S5 S6 |
32.0 34.0 36.0 |
34.0 36.0 38.0 |
|
| 5000K | SPMWHT541MP5W◆R☆S0 | S4 S5 S6 |
33.0 35.0 37.0 |
35.0 37.0 39.0 |
|
| 5700K | SPMWHT541MP5W◆Q☆S0 | S4 S5 S6 |
32.5 34.5 36.5 |
34.5 36.5 38.5 |
|
| 6500K | SPMWHT541MP5W◆P☆S0 | S4 S5 S6 |
32.0 34.0 36.0 |
34.0 36.0 38.0 |
|
| 90+ | 2700K | SPMWHT541MP7WAW☆S0 | S1 S2 S3 |
24.0 26.0 28.0 |
26.0 28.0 30.0 |
| 3000K | SPMWHT541MP7WAV☆S0 | S1 S2 S3 |
24.5 26.5 28.5 |
26.5 28.5 30.5 |
|
| 3500K | SPMWHT541MP7WAU☆S0 | S1 S2 S3 |
25.0 27.0 29.0 |
27.0 29.0 31.0 |
|
| 4000K | SPMWHT541MP7WAT☆S0 | S1 S2 S3 |
26.0 28.0 30.0 |
28.0 30.0 32.0 |
|
| 5000K | SPMWHT541MP7WAR☆S0 | S1 S2 S3 |
27.0 29.0 31.0 |
29.0 31.0 33.0 |
|
| 5700K | SPMWHT541MP7WAQ☆S0 | S1 S2 S3 |
26.5 28.5 30.5 |
28.5 30.5 32.5 |
|
| 6500K | SPMWHT541MP7WAP☆S0 | S1 S2 S3 |
26.0 28.0 30.0 |
28.0 30.0 32.0 |
|
| 90+ PE | 2700K | SPMWHT541MJ7WAW☆S0 | SB SC |
26.0 28.0 |
28.0 30.0 |
| 3000K | SPMWHT541MJ7WAV☆S0 | SB SC |
27.0 29.0 |
29.0 31.0 |
|
| 3500K | SPMWHT541MJ7WAU☆S0 | SB SC |
28.0 30.0 |
30.0 32.0 |
|
| 4000K | SPMWHT541MJ7WAT☆S0 | SB SC |
29.0 31.0 |
31.0 33.0 |
|
| 5000K | SPMWHT541MJ7WAR☆S0 | SB SC |
30.0 32.0 |
32.0 34.0 |
|
| 5700K | SPMWHT541MJ7WAQ☆S0 | SB SC |
29.0 31.0 |
31.0 33.0 |
|
| 6500K | SPMWHT541MJ7WAP☆S0 | SB SC |
28.0 30.0 |
30.0 32.0 |
|
