Description

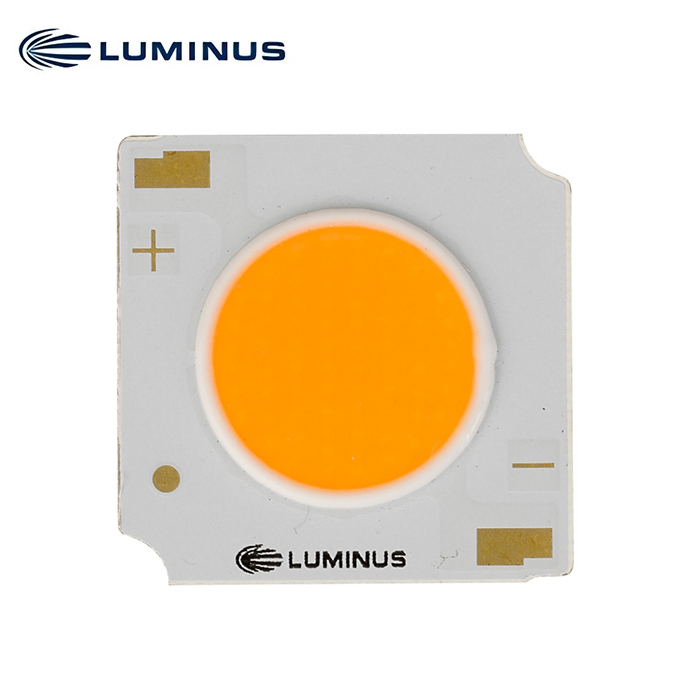

LUX Series G5 CLM-14 COB White LED Arrays
Features
• High lumen output and efficacy typical
• Over 2660 lm, 162 LPW @ 3000K, 90CRI, Tj = 85°C
• CCT range 2400K, 2700K, 3000K, 3500K, 4000K, 5000K and 6500K
• 3 SDCM and 2 SDCM color binning standard
• Excellent optical emission uniformity and color over angle consistency
• Superior thermal conductivity for uniform heat spreading
Applications
• Spotlights/Track Lights
• Downlights
• Shop Lighting
• Hospitality Lighting
• Architectural and Specialty
• Street Lighting
• Parking Lot and Area Lighting
• Tunnel Lighting
CCT, CRI and R9 Values
| Correlated Color Temperatures | XX Value | CRI | *R9 |
| 2400K, 2700K, 3000K, 3500K, 4000K, 5000K, 6500K | 90 | >90 | >50 |
| 2700K, 3000K | 95 | >95 | >85 |
| 3500K, 4000K, 5000K | >75 |
Ordering Part Numbers – TC50 (On the BBL)
The following tables describe products with typical flux and minimum flux measured at 500mA and specified at Tj = 85°C. The values at 25°C are calculated and shown for reference only.
| CCT | Output Flux (lm) | Color
Rendering Index (min.) |
Ordering Part Number | |||
| Typ. (85°C) | Min. (85°C) | Calculated
Typ. (25°C) |
3-step MacAdam Ellipse | 2-step MacAdam Ellipse | ||
| 2400K | 2,450 | 2,275 | 2,690 | 90 | CLM-14-24-90-36-TC50-F6-3 | CLM-14-24-90-36-TC50-F6-2 |
| 2700K | 2,615 | 2,430 | 2,875 | 90 | CLM-14-27-90-36-TC50-F6-3 | CLM-14-27-90-36-TC50-F6-2 |
| 2,385 | 2,220 | 2,625 | 95 | CLM-14-27-95-36-TC50-F6-3 | CLM-14-27-95-36-TC50-F6-2 | |
| 3000K | 2,660 | 2,475 | 2,925 | 90 | CLM-14-30-90-36-TC50-F6-3 | CLM-14-30-90-36-TC50-F6-2 |
| 2,470 | 2,300 | 2,720 | 95 | CLM-14-30-95-36-TC50-F6-3 | CLM-14-30-95-36-TC50-F6-2 | |
| 3500K | 2,785 | 2,590 | 3,060 | 90 | CLM-14-35-90-36-TC50-F6-3 | CLM-14-35-90-36-TC50-F6-2 |
| 2,485 | 2,310 | 2,735 | 95 | CLM-14-35-95-36-TC50-F6-3 | CLM-14-35-95-36-TC50-F6-2 | |
| 4000K | 2,780 | 2,585 | 3,055 | 90 | CLM-14-40-90-36-TC50-F6-3 | CLM-14-40-90-36-TC50-F6-2 |
| 2,585 | 2,405 | 2,845 | 95 | CLM-14-40-95-36-TC50-F6-3 | CLM-14-40-95-36-TC50-F6-2 | |
| 5000K | 2,755 | 2,560 | 3,030 | 90 | CLM-14-50-90-36-TC50-F6-3 | CLM-14-50-90-36-TC50-F6-2 |
| 2,610 | 2,425 | 2,870 | 95 | CLM-14-50-95-36-TC50-F6-3 | CLM-14-50-95-36-TC50-F6-2 | |
| 6500K | 2,710 | 2,520 | 2,980 | 90 | CLM-14-65-90-36-TC50-F6-3 | CLM-14-65-90-36-TC50-F6-2 |
Ordering Part Numbers – TC52 Sensus (BBBL)
The following tables describe products with typical flux and minimum flux measured at 500mA and specified at Tj = 85°C. The values at 25°C are calculated and shown for reference only.
| CCT | Output Flux (lm) | Color
Rendering Index (min.) |
Ordering Part Number | |||
| Typ. (85°C) | Min. (85°C) | Calculated
Typ. (25°C) |
3-step MacAdam Ellipse | 2-step MacAdam Ellipse | ||
| 2700K | 2,535 | 2,355 | 2,790 | 90 | CLM-14-27-90-36-TC52-F6-3 | CLM-14-27-90-36-TC52-F6-2 |
| 3000K | 2,580 | 2,400 | 2,840 | 90 | CLM-14-30-90-36-TC52-F6-3 | CLM-14-30-90-36-TC52-F6-2 |
| 3500K | 2,645 | 2,460 | 2,910 | 90 | CLM-14-35-90-36-TC52-F6-3 | CLM-14-35-90-36-TC52-F6-2 |
Operating Characteristics1
| Parameter | Symbol | Minimum | Typical | Maximum | Unit |
| Forward Current1,2 | If | 500 | 1200 | mA | |
| Forward Voltage3 | Vf | 30.5 | 33.0 | 37 | V |
| Power | 16.5 | 44.5 | W | ||
| Operating Case Temperature | T c | 105 | °C | ||
| Light Emitting Surface Diameter | LES | 14.5 | mm | ||
| Thermal Resistance (junction-to-case) | Θjc | 0.25 | °C/W | ||
| Junction Temperature | Tj | 140 | °C | ||
| Viewing Angle | 120 | Degree |
