Description

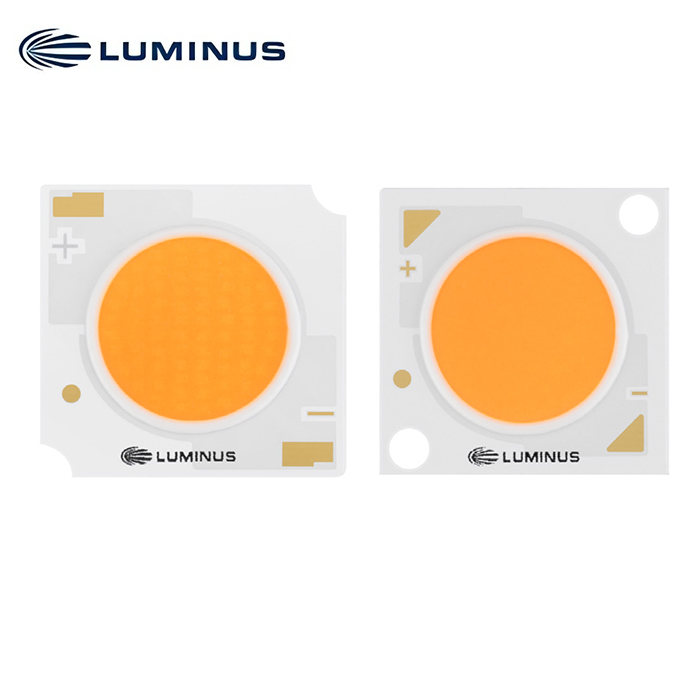

Lux Series G5 CXM-11 COB Arrays White LED
Features
• High lumen output and efficacy typical
• Over 2350 lm, 156 LPW @ 3000K, 90CRI, Tj = 85°C
• CCT range 2400K, 2700K, 3000K, 3500K, 4000K, 5000K and 6500K
• 3 SDCM and 2 SDCM color binning standard
• Excellent optical emission uniformity and color over angle consistency
• Superior thermal conductivity for uniform heat spreading
Applications
• Spotlights/Track Lights
• Downlights
• Shop Lighting
• Hospitality Lighting
• Architectural and Specialty
• Street Lighting
• Parking Lot and Area Lighting
• Tunnel Lighting
CCT, CRI and R9 Values
| Correlated Color Temperatures | XX Value | CRI | *R9 |
| 2400K, 2700K, 3000K, 3500K, 4000K, 5000K, 6500K | 90 | >90 | >50 |
| 2700K, 3000K | 95 | >95 | >85 |
| 3500K, 4000K, 5000K | >75 |
Ordering Part Numbers (TA50)
The following tables describe products with typical flux and minimum flux measured at 450mA and specified at Tj = 85°C. The values at 25°C are calculated and shown for reference only.
| CCT | Output Flux (lm) | Color
Rendering Index (min.) |
Ordering Part Number | |||
| Typ. (85°C) | Min. (85°C) | Calculated
Typ. (25°C) |
3-step MacAdam Ellipse | 2-step MacAdam Ellipse | ||
| 2400K | 2165 | 2010 | 2380 | 90 | CXM-11-24-90-36-TA50-F6-3 | CXM-11-24-90-36-TA50-F6-2 |
| 2700K | 2310 | 2150 | 2540 | 90 | CXM-11-27-90-36-TA50-F6-3 | CXM-11-27-90-36-TA50-F6-2 |
| 2110 | 1960 | 2320 | 95 | CXM-11-27-95-36-TA50-F6-3 | CXM-11-27-95-36-TA50-F6-2 | |
| 3000K | 2350 | 2190 | 2585 | 90 | CXM-11-30-90-36-TA50-F6-3 | CXM-11-30-90-36-TA50-F6-2 |
| 2185 | 2030 | 2400 | 95 | CXM-11-30-95-36-TA50-F6-3 | CXM-11-30-95-36-TA50-F6-2 | |
| 3500K | 2455 | 2285 | 2700 | 90 | CXM-11-35-90-36-TA50-F6-3 | CXM-11-35-90-36-TA50-F6-2 |
| 2195 | 2040 | 2415 | 95 | CXM-11-35-95-36-TA50-F6-3 | CXM-11-35-95-36-TA50-F6-2 | |
| 4000K | 2455 | 2285 | 2700 | 90 | CXM-11-40-90-36-TA50-F6-3 | CXM-11-40-90-36-TA50-F6-2 |
| 2285 | 2125 | 2515 | 95 | CXM-11-40-95-36-TA50-F6-3 | CXM-11-40-95-36-TA50-F6-2 | |
| 5000K | 2435 | 2265 | 2680 | 90 | CXM-11-50-90-36-TA50-F6-3 | CXM-11-50-90-36-TA50-F6-2 |
| 2305 | 2145 | 2535 | 95 | CXM-11-50-95-36-TA50-F6-3 | CXM-11-50-95-36-TA50-F6-2 | |
| 6500K | 2395 | 2225 | 2630 | 90 | CXM-11-65-90-36-TA50-F6-3 | CXM-11-65-90-36-TA50-F6-2 |
Ordering Part Numbers (TC50)
The following tables describe products with typical flux and minimum flux measured at 450mA and specified at Tj = 85°C. The values at 25°C are calculated and shown for reference only.
| CCT | Output Flux (lm) | Color
Rendering Index (min.) |
Ordering Part Number | |||
| Typ. (85°C) | Min. (85°C) | Calculated
Typ. (25°C) |
3-step MacAdam Ellipse | 2-step MacAdam Ellipse | ||
| 2400K | 2165 | 2010 | 2380 | 90 | CXM-11-24-90-36-TC50-F6-3 | CXM-11-24-90-36-TC50-F6-2 |
| 2700K | 2310 | 2150 | 2540 | 90 | CXM-11-27-90-36-TC50-F6-3 | CXM-11-27-90-36-TC50-F6-2 |
| 2110 | 1960 | 2320 | 95 | CXM-11-27-95-36-TC50-F6-3 | CXM-11-27-95-36-TC50-F6-2 | |
| 3000K | 2350 | 2190 | 2585 | 90 | CXM-11-30-90-36-TC50-F6-3 | CXM-11-30-90-36-TC50-F6-2 |
| 2185 | 2030 | 2400 | 95 | CXM-11-30-95-36-TC50-F6-3 | CXM-11-30-95-36-TC50-F6-2 | |
| 3500K | 2455 | 2285 | 2700 | 90 | CXM-11-35-90-36-TC50-F6-3 | CXM-11-35-90-36-TC50-F6-2 |
| 2195 | 2040 | 2415 | 95 | CXM-11-35-95-36-TC50-F6-3 | CXM-11-35-95-36-TC50-F6-2 | |
| 4000K | 2455 | 2285 | 2700 | 90 | CXM-11-40-90-36-TC50-F6-3 | CXM-11-40-90-36-TC50-F6-2 |
| 2285 | 2125 | 2515 | 95 | CXM-11-40-95-36-TC50-F6-3 | CXM-11-40-95-36-TC50-F6-2 | |
| 5000K | 2435 | 2265 | 2680 | 90 | CXM-11-50-90-36-TC50-F6-3 | CXM-11-50-90-36-TC50-F6-2 |
| 2305 | 2145 | 2535 | 95 | CXM-11-50-95-36-TC50-F6-3 | CXM-11-50-95-36-TC50-F6-2 | |
| 6500K | 2395 | 2225 | 2630 | 90 | CXM-11-65-90-36-TC50-F6-3 | CXM-11-65-90-36-TC50-F6-2 |
Ordering Part Numbers – TC/TA52 Sensus (BBBL)
The following tables describe products with typical flux and minimum flux measured at 450mA and specified at Tj = 85°C. The values at 25°C are calculated and shown for reference only.
| CCT | Output Flux (lm) | Color
Rendering Index (min.) |
Ordering Part Number | |||
| Typ. (85°C) | Min. (85°C) | Calculated
Typ. (25°C) |
3-step MacAdam Ellipse | 2-step MacAdam Ellipse | ||
| 2700K | 2235 | 2075 | 2460 | 90 | CXM-11-27-90-36-TC52-F6-3 | CXM-11-27-90-36-TC52-F6-2 |
| CXM-11-27-90-36-TA52-F6-3 | CXM-11-27-90-36-TA52-F6-2 | |||||
| 3000K | 2280 | 2120 | 2510 | 90 | CXM-11-30-90-36-TC52-F6-3 | CXM-11-30-90-36-TC52-F6-2 |
| CXM-11-30-90-36-TA52-F6-3 | CXM-11-30-90-36-TA52-F6-2 | |||||
| 3500K | 2340 | 2175 | 2570 | 90 | CXM-11-35-90-36-TC52-F6-3 | CXM-11-35-90-36-TC52-F6-2 |
| CXM-11-35-90-36-TA52-F6-3 | CXM-11-35-90-36-TA52-F6-2 | |||||
Operating Characteristics1
| Parameter | Symbol | Minimum | Typical | Maximum | Unit |
| Forward Current2 | If | 450 | 900 | mA | |
| Forward Voltage3 | Vf | 31.5 | 33.3 | 35.6 | V |
| Power | 15 | 32 | W | ||
| Operating Case Temperature | T c | 105 | °C | ||
| Light Emitting Surface Diameter | LES | 11.6 | mm | ||
| Thermal Resistance (junction-to-case) | Θjc | 0.29 | °C/W | ||
| Junction Temperature | Tj | 140 | °C | ||
| Viewing Angle | 120 | Degree |
