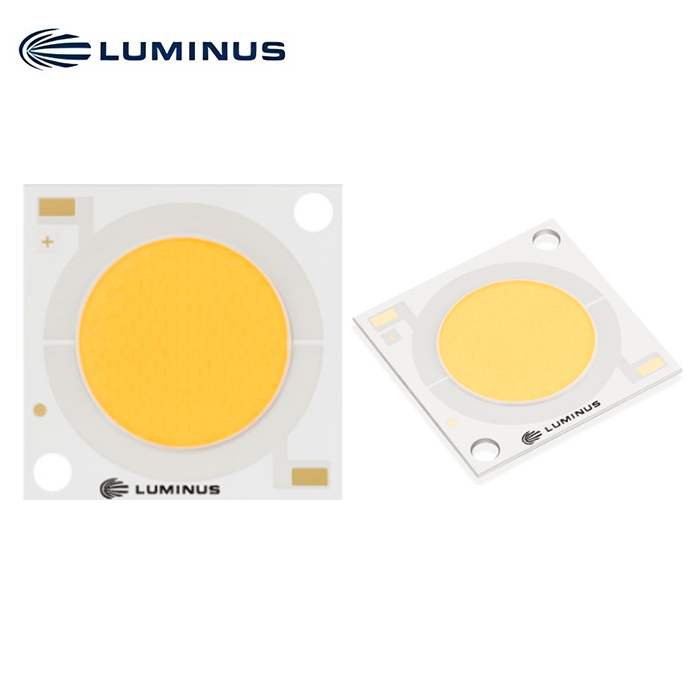

Lux Series G5 CXM-18 COB Arrays White LED
Features
• High lumen output and efficacy typical
• Over 4500 lm, 170LPW @ 3000K, 90CRI, Tj = 85°C
• CCT range 2400K, 2700K, 3000K, 3500K, 4000K, 5000K and 6500K
• 3 SDCM and 2 SDCM color binning standard
• Excellent optical emission uniformity and color over angle consistency
• Exceptional long term color stability
• Superior thermal conductivity for uniform heat spreading
Applications
• Spotlights/Track Lights
• Downlights
• Shop Lighting
• Hospitality Lighting
• Architectural and Specialty
• Street Lighting
• Parking Lot and Area Lighting
• Tunnel Lighting
CCT, CRI and R9 Values
| Correlated Color Temperatures | XX Value | CRI | *R9 |
| 2400K, 2700K, 3000K, 3500K, 4000K, 5000K, 6500K | 90 | >90 | >50 |
| 2700K, 3000K | 95 | >95 | >85 |
| 3500K, 4000K, 5000K | >75 |
Ordering Part Numbers – TC50
The following tables describe products with typical flux and minimum flux measured at 800mA and specified at Tj = 85°C. The values at 25°C are calculated and shown for reference only.
| CCT | Output Flux (lm) | Color
Rendering Index (min.) |
Ordering Part Number | |||
| Typ. (85°C) | Min. (85°C) | Calculated
Typ. (25°C) |
3-step MacAdam Ellipse | 2-step MacAdam Ellipse | ||
| 2400K | 4, 140 | 3,850 | 4,560 | 90 | CXM-18-24-90-36-TC50-F6-3 | CXM-18-24-90-36-TC50-F6-2 |
|
2700K |
4,425 | 4,115 | 4,865 | 90 | CXM-18-27-90-36-TC50-F6-3 | CXM-18-27-90-36-TC50-F6-2 |
| 4,040 | 3,755 | 4,440 | 95 | CXM-18-27-95-36-TC50-F6-3 | CXM-18-27-95-36-TC50-F6-2 | |
| 3000K | 4,505 | 4,190 | 4,955 | 90 | CXM-18-30-90-36-TC50-F6-3 | CXM-18-30-90-36-TC50-F6-2 |
| 4,180 | 3,890 | 4,600 | 95 | CXM-18-30-95-36-TC50-F6-3 | CXM-18-30-95-36-TC50-F6-2 | |
| 3500K | 4,710 | 4,380 | 5,180 | 90 | CXM-18-35-90-36-TC50-F6-3 | CXM-18-35-90-36-TC50-F6-2 |
| 4,205 | 3,910 | 4,625 | 95 | CXM-18-35-95-36-TC50-F6-3 | CXM-18-35-95-36-TC50-F6-2 | |
| 4000K | 4,700 | 4,370 | 5,170 | 90 | CXM-18-40-90-36-TC50-F6-3 | CXM-18-40-90-36-TC50-F6-2 |
| 4,375 | 4,070 | 4,815 | 95 | CXM-18-40-95-36-TC50-F6-3 | CXM-18-40-95-36-TC50-F6-2 | |
| 5000K | 4,660 | 4,335 | 5,130 | 90 | CXM-18-50-90-36-TC50-F6-3 | CXM-18-50-90-36-TC50-F6-2 |
| 4,415 | 4,105 | 4,855 | 95 | CXM-18-50-95-36-TC50-F6-3 | CXM-18-50-95-36-TC50-F6-2 | |
| 6500K | 4,585 | 4,260 | 5,040 | 90 | CXM-18-65-90-36-TC50-F6-3 | CXM-18-65-90-36-TC50-F6-2 |
Ordering Part Numbers – TC52 Sensus (BBBL)
The following tables describe products with typical flux and minimum flux measured at 800mA and specified at Tj = 85°C. The values at 25°C are calculated and shown for reference only.
| CCT | Output Flux (lm) | Color
Rendering Index (min.) |
Ordering Part Number | |||
| Typ. (85°C) | Min. (85°C) | Calculated
Typ. (25°C) |
3-step MacAdam Ellipse | 2-step MacAdam Ellipse | ||
| 2700K | 4,285 | 3,980 | 4,710 | 90 | CXM-18-27-90-36-TC52-F6-3 | CXM-18-27-90-36-TC52-F6-2 |
| 3000K | 4,370 | 4,060 | 4,805 | 90 | CXM-18-30-90-36-TC52-F6-3 | CXM-18-30-90-36-TC52-F6-2 |
| 3500K | 4,480 | 4,165 | 4,930 | 90 | CXM-18-35-90-36-TC52-F6-3 | CXM-18-35-90-36-TC52-F6-2 |
Operating Characteristics1
| Parameter | Symbol | Minimum | Typical | Maximum | Unit |
| Forward Current2 | If | 800 | 1800 | mA | |
| Forward Voltage3 | Vf | 31.1 | 32.9 | 35.5 | V |
| Power | 26.5 | 64 | W | ||
| Operating Case Temperature | T c | 105 | °C | ||
| Light Emitting Surface Diameter | LES | 17.5 | mm | ||
| Thermal Resistance (junction-to-case) | Θjc | 0.13 | °C/W | ||
| Junction Temperature | Tj | 140 | °C | ||
| Viewing Angle | 120 | Degree |
