Description

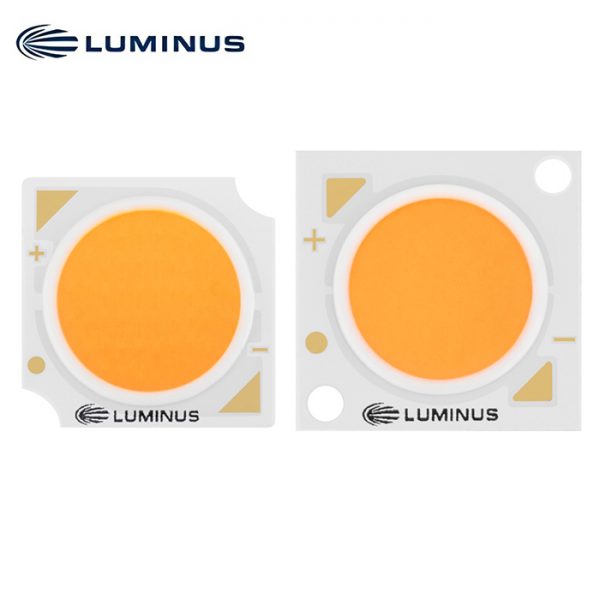

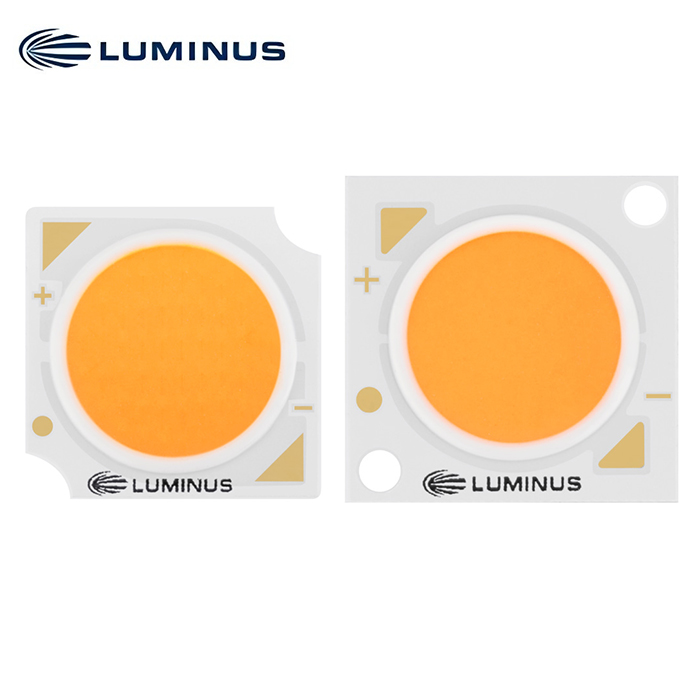

Lux Series G5 CXM-9 COB Arrays White LED
Features
• High lumen output and efficacy typical
• Over 1825lm, 152 LPW @ 3000K, 90CRI, Tj = 85°C
• CCT range 2400K, 2700K, 3000K, 3500K, 4000K, 5000K and 6500K
• 3 SDCM and 2 SDCM color binning standard
• Excellent optical emission uniformity and color over angle consistency
• Superior thermal conductivity for uniform heat spreading
Applications
• Spotlights/Track Lights
• Downlights
• Shop Lighting
• Hospitality Lighting
• Architectural and Specialty
• Street Lighting
• Parking Lot and Area Lighting
• Tunnel Lighting
CCT, CRI and R9 Values
| Correlated Color Temperatures | XX Value | CRI | *R9 |
| 2400K, 2700K, 3000K, 3500K, 4000K, 5000K, 6500K | 90 | >90 | >50 |
| 2700K, 3000K | 95 | >95 | >85 |
| 3500K, 4000K, 5000K | >75 |
Ordering Part Numbers – TA50
The following tables describe products with typical flux and minimum flux measured at 360mA and specified at Tj = 85°C. The values at 25°C are calculated and shown for reference only.
| CCT | Output Flux (lm) | Color
Rendering Index (min.) |
Ordering Part Number | |||
| Typ. (85°C) | Min. (85°C) | Calculated
Typ. (25°C) |
3-step MacAdam Ellipse | 2-step MacAdam Ellipse | ||
| 2400K | 1680 | 1560 | 1850 | 90 | CXM-9-24-90-36-TA50-F6-3 | CXM-9-24-90-36-TA50-F6-2 |
| 2700K | 1795 | 1670 | 1975 | 90 | CXM-9-27-90-36-TA50-F6-3 | CXM-9-27-90-36-TA50-F6-2 |
| 1640 | 1525 | 1800 | 95 | CXM-9-27-95-36-TA50-F6-3 | CXM-9-27-95-36-TA50-F6-2 | |
| 3000K | 1825 | 1700 | 2010 | 90 | CXM-9-30-90-36-TA50-F6-3 | CXM-9-30-90-36-TA50-F6-2 |
| 1695 | 1575 | 1865 | 95 | CXM-9-30-95-36-TA50-F6-3 | CXM-9-30-95-36-TA50-F6-2 | |
| 3500K | 1910 | 1775 | 2100 | 90 | CXM-9-35-90-36-TA50-F6-3 | CXM-9-35-90-36-TA50-F6-2 |
| 1705 | 1585 | 1875 | 95 | CXM-9-35-95-36-TA50-F6-3 | CXM-9-35-95-36-TA50-F6-2 | |
| 4000K | 1910 | 1775 | 2100 | 90 | CXM-9-40-90-36-TA50-F6-3 | CXM-9-40-90-36-TA50-F6-2 |
| 1775 | 1650 | 1950 | 95 | CXM-9-40-95-36-TA50-F6-3 | CXM-9-40-95-36-TA50-F6-2 | |
| 5000K | 1890 | 1760 | 2080 | 90 | CXM-9-50-90-36-TA50-F6-3 | CXM-9-50-90-36-TA50-F6-2 |
| 1790 | 1665 | 1970 | 95 | CXM-9-50-95-36-TA50-F6-3 | CXM-9-50-95-36-TA50-F6-2 | |
| 6500K | 1860 | 1730 | 2045 | 90 | CXM-9-65-90-36-TA50-F6-3 | CXM-9-65-90-36-TA50-F6-2 |
Ordering Part Numbers – TC50
The following tables describe products with typical flux and minimum flux measured at 360mA and specified at Tj = 85°C. The values at 25°C are calculated and shown for reference only.
| CCT | Output Flux (lm) | Color
Rendering Index (min.) |
Ordering Part Number | |||
| Typ. (85°C) | Min. (85°C) | Calculated
Typ. (25°C) |
3-step MacAdam Ellipse | 2-step MacAdam Ellipse | ||
| 2400K | 1680 | 1560 | 1850 | 90 | CXM-9-24-90-36-TC50-F6-3 | CXM-9-24-90-36-TC50-F6-2 |
| 2700K | 1795 | 1670 | 1975 | 90 | CXM-9-27-90-36-TC50-F6-3 | CXM-9-27-90-36-TC50-F6-2 |
| 1640 | 1525 | 1800 | 95 | CXM-9-27-95-36-TC50-F6-3 | CXM-9-27-95-36-TC50-F6-2 | |
| 3000K | 1825 | 1700 | 2010 | 90 | CXM-9-30-90-36-TC50-F6-3 | CXM-9-30-90-36-TC50-F6-2 |
| 1695 | 1575 | 1865 | 95 | CXM-9-30-95-36-TC50-F6-3 | CXM-9-30-95-36-TC50-F6-2 | |
| 3500K | 1910 | 1775 | 2100 | 90 | CXM-9-35-90-36-TC50-F6-3 | CXM-9-35-90-36-TC50-F6-2 |
| 1705 | 1585 | 1875 | 95 | CXM-9-35-95-36-TC50-F6-3 | CXM-9-35-95-36-TC50-F6-2 | |
| 4000K | 1910 | 1775 | 2100 | 90 | CXM-9-40-90-36-TC50-F6-3 | CXM-9-40-90-36-TC50-F6-2 |
| 1775 | 1650 | 1950 | 95 | CXM-9-40-95-36-TC50-F6-3 | CXM-9-40-95-36-TC50-F6-2 | |
| 5000K | 1890 | 1760 | 2080 | 90 | CXM-9-50-90-36-TC50-F6-3 | CXM-9-50-90-36-TC50-F6-2 |
| 1790 | 1665 | 1970 | 95 | CXM-9-50-95-36-TC50-F6-3 | CXM-9-50-95-36-TC50-F6-2 | |
| 6500K | 1860 | 1730 | 2045 | 90 | CXM-9-65-90-36-TC50-F6-3 | CXM-9-65-90-36-TC50-F6-2 |
ering Part Numbers – TC/TA52 Sensus (BBBL)
The following tables describe products with typical flux and minimum flux measured at 360mA and specified at Tj = 85°C. The values at 25°C are calculated and shown for reference only.
| CCT | Output Flux (lm) | Color
Rendering Index (min.) |
Ordering Part Number | |||
| Typ. (85°C) | Min. (85°C) | Calculated
Typ. (25°C) |
3-step MacAdam Ellipse | 2-step MacAdam Ellipse | ||
| 2700K | 1735 | 1615 | 1910 | 90 | CXM-9-27-90-36-TC52-F6-3 | CXM-9-27-90-36-TC52-F6-2 |
| CXM-9-27-90-36-TA52-F6-3 | CXM-9-27-90-36-TA52-F6-2 | |||||
| 3000K | 1770 | 1650 | 1950 | 90 | CXM-9-30-90-36-TC52-F6-3 | CXM-9-30-90-36-TC52-F6-2 |
| CXM-9-30-90-36-TA52-F6-3 | CXM-9-30-90-36-TA52-F6-2 | |||||
| 3500K | 1815 | 1690 | 2000 | 90 | CXM-9-35-90-36-TC52-F6-3 | CXM-9-35-90-36-TC52-F6-2 |
| CXM-9-35-90-36-TA52-F6-3 | CXM-9-35-90-36-TA52-F6-2 | |||||
Operating Characteristics1
| Parameter | Symbol | Minimum | Typical | Maximum | Unit |
| Forward Current2 | If | 360 | 750 | mA | |
| Forward Voltage3 | Vf | 31.5 | 33.2 | 35.5 | V |
| Power | 12 | 26.5 | W | ||
| Operating Case Temperature | T c | 105 | °C | ||
| Light Emitting Surface Diameter4 | LES | 9.8 | mm | ||
| Thermal Resistance (junction-to-case) | Θjc | 0.32 | °C/W | ||
| Junction Temperature | Tj | 140 | °C | ||
| Viewing Angle | 120 | Degree |
