Description
Cost Effective 2835 Package Tailor-made for Excellent Dimming Application

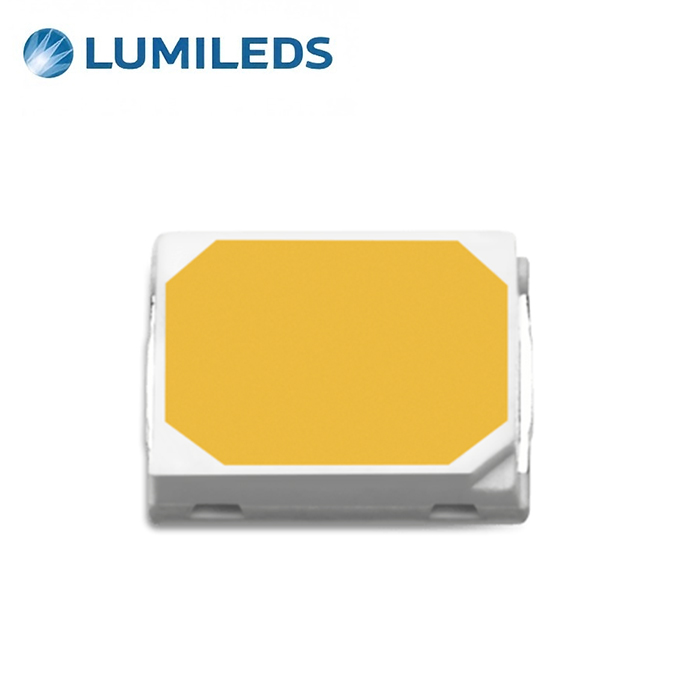

LUXEON 2835 Commercial Deep Dimming delivers the industry’s most cost effective of standard 2835 package. It is specially designed for dimming applications which require enormously uniform light output throughout rated and deep dimming operating conditions. This innovative product enables not only top-notch lm/W performance and long lifetime, but also 0.05 VF range by default for end applications. Utmost, this product leads its class in flux, color consistency, robustness, and reliability making it the right choice for commercial indoor luminaires.
Features & Benefits
- Dedicated deep dimming bin achieves best-in-class dimming effects at 1% dimming current
- 0.05 VF range by default, free customer from complex driver compatibility design
- Industry standard footprint for drop-in replacement designs
- Complete CCT/CRI offering for various application
- Reliable package design for commercial applications that prioritize lumens per Dollar and lumens per Watt
- 3 & 5-step MacAdam ellipses enable precise color control
Applications
- Panel/Soft Lights
- Linear Lights
- Troffers
- Down Lights
Performance of LUXEON 2835 Commercial Deep Dimming LEDs at specified test conditions.
| Nominal CCT | Minimum CRI | Luminous Flux (lm) | Typical Luminous Efficacy (lm/W) | Test Current (mA) | Part Numbers | |
|---|---|---|---|---|---|---|
| Minimum | Typical | |||||
| 2700K | 80 | 30.0 | 33.2 | 185.1 | 65 | L128-2780SA35A0DA1 |
| 3000K | 80 | 32.0 | 34.4 | 192.0 | 65 | L128-3080SA35A0DA1 |
| 3500K | 80 | 32.5 | 35.1 | 196.0 | 65 | L128-3580SA35A0DA1 |
| 4000K | 80 | 33.0 | 35.8 | 200.0 | 65 | L128-4080SA35A0DA1 |
| 5000K | 80 | 33.0 | 35.8 | 200.0 | 65 | L128-5080SA35A0DA1 |
| 5700K | 80 | 33.0 | 35.8 | 200.0 | 65 | L128-5780SA35A0DA1 |
| 6500K | 80 | 32.5 | 35.4 | 197.3 | 65 | L128-6580SA35A0DA1 |
| 2700K | 90 | 25.5 | 27.5 | 153.3 | 65 | L128-2790SA35A0DA1 |
| 3000K | 90 | 26.8 | 28.8 | 160.5 | 65 | L128-3090SA35A0DA1 |
| 3500K | 90 | 28.1 | 30.2 | 168.3 | 65 | L128-3590SA35A0DA1 |
| 4000K | 90 | 28.6 | 30.8 | 171.7 | 65 | L128-4090SA35A0DA1 |
| 5000K | 90 | 28.6 | 30.8 | 171.7 | 65 | L128-5090SA35A0DA1 |
| 5700K | 90 | 28.6 | 30.8 | 171.7 | 65 | L128-5790SA35A0DA1 |
| 6500K | 90 | 28.3 | 30.4 | 169.5 | 65 | L128-6590SA35A0DA1 |
| 2700K | 80 | 31.6 | 34.0 | 190.7 | 65 | L128-2780SA35A0DD1 |
| 3000K | 80 | 32.4 | 34.8 | 195.1 | 65 | L128-3080SA35A0DD1 |
| 3500K | 80 | 33.1 | 35.5 | 199.6 | 65 | L128-3580SA35A0DD1 |
| 4000K | 80 | 33.8 | 36.3 | 204.1 | 65 | L128-4080SA35A0DD1 |
| 5000K | 80 | 34.2 | 36.7 | 206.3 | 65 | L128-5080SA35A0DD1 |
| 5700K | 80 | 34.2 | 36.7 | 206.3 | 65 | L128-5780SA35A0DD1 |
| 6500K | 80 | 33.8 | 36.3 | 204.1 | 65 | L128-6580SA35A0DD1 |
| 2700K | 90 | 27.2 | 29.3 | 164.5 | 65 | L128-2790SA35A0DD1 |
| 3000K | 90 | 28.4 | 30.6 | 171.7 | 65 | L128-3090SA35A0DD1 |
| 3500K | 90 | 29.4 | 31.6 | 177.3 | 65 | L128-3590SA35A0DD1 |
| 4000K | 90 | 29.7 | 32.0 | 179.5 | 65 | L128-4090SA35A0DD1 |
| 5000K | 90 | 29.7 | 32.0 | 179.5 | 65 | L128-5090SA35A0DD1 |
| 5700K | 90 | 29.6 | 31.8 | 178.4 | 65 | L128-5790SA35A0DD1 |
| 6500K | 90 | 29.4 | 31.6 | 177.3 | 65 | L128-6590SA35A0DD1 |
| 2700K | 80 | 33.8 | 34.2 | 195.0 | 65 | L128-2780SA35A0DE1 |
| 3000K | 80 | 34.3 | 35.2 | 200.6 | 65 | L128-3080SA35A0DE1 |
| 3500K | 80 | 35.3 | 35.9 | 204.6 | 65 | L128-3580SA35A0DE1 |
| 4000K | 80 | 37.2 | 38.2 | 218.0 | 65 | L128-4080SA35A0DE1 |
| 5000K | 80 | 37.2 | 38.2 | 218.0 | 65 | L128-5080SA35A0DE1 |
| 5700K | 80 | 36.7 | 38.2 | 218.0 | 65 | L128-5780SA35A0DE1 |
| 6500K | 80 | 35.7 | 37.5 | 214.0 | 65 | L128-6580SA35A0DE1 |
| 2700K | 90 | 29.8 | 31.0 | 176.6 | 65 | L128-2790SA35A0DE1 |
| 3000K | 90 | 30.6 | 32.2 | 183.5 | 65 | L128-3090SA35A0DE1 |
| 3500K | 90 | 30.8 | 32.4 | 184.6 | 65 | L128-3590SA35A0DE1 |
| 4000K | 90 | 31.3 | 32.7 | 186.3 | 65 | L128-4090SA35A0DE1 |
| 5000K | 90 | 31.3 | 32.7 | 186.3 | 65 | L128-5090SA35A0DE1 |
| 5700K | 90 | 31.3 | 32.7 | 186.3 | 65 | L128-5790SA35A0DE1 |
| 6500K | 90 | 31.8 | 32.7 | 186.3 | 65 | L128-6590SA35A0DE1 |
| 2700K | 70 | 35.8 | 37.4 | 213.1 | 65 | L128-2770SA35A0DF1 |
| 3000K | 70 | 36.9 | 38.6 | 219.9 | 65 | L128-3070SA35A0DF1 |
| 3500K | 70 | 37.3 | 39.1 | 222.8 | 65 | L128-3570SA35A0DF1 |
| 4000K | 70 | 38.8 | 40.6 | 231.3 | 65 | L128-4070SA35A0DF1 |
| 5000K | 70 | 38.3 | 40.1 | 228.5 | 65 | L128-5070SA35A0DF1 |
| 5700K | 70 | 38.3 | 40.1 | 228.5 | 65 | L128-5770SA35A0DF1 |
| 6500K | 70 | 37.8 | 39.6 | 225.6 | 65 | L128-6570SA35A0DF1 |
| 2700K | 80 | 34.8 | 35.2 | 200.6 | 65 | L128-2780SA35A0DF1 |
| 3000K | 80 | 35.7 | 36.1 | 205.7 | 65 | L128-3080SA35A0DF1 |
| 3500K | 80 | 36.7 | 37.3 | 212.5 | 65 | L128-3580SA35A0DF1 |
| 4000K | 80 | 37.5 | 38.6 | 220.0 | 65 | L128-4080SA35A0DF1 |
| 5000K | 80 | 37.7 | 38.6 | 220.0 | 65 | L128-5080SA35A0DF1 |
| 5700K | 80 | 37.7 | 38.6 | 220.0 | 65 | L128-5780SA35A0DF1 |
| 6500K | 80 | 37.7 | 39.5 | 225.1 | 65 | L128-6580SA35A0DF1 |
| 2700K | 90 | 29.8 | 31.2 | 177.7 | 65 | L128-2790SA35A0DF1 |
| 3000K | 90 | 30.8 | 32.4 | 184.5 | 65 | L128-3090SA35A0DF1 |
| 3500K | 90 | 31.8 | 32.6 | 185.6 | 65 | L128-3590SA35A0DF1 |
| 4000K | 90 | 32.3 | 33.0 | 187.8 | 65 | L128-4090SA35A0DF1 |
| 5000K | 90 | 32.3 | 33.0 | 187.8 | 65 | L128-5090SA35A0DF1 |
| 5700K | 90 | 32.3 | 33.0 | 187.8 | 65 | L128-5790SA35A0DF1 |
| 6500K | 90 | 32.3 | 33.0 | 187.8 | 65 | L128-6590SA35A0DF1 |
| 2700K | 80 | 30.2 | 31.7 | 175.4 | 65 | L128-2780SA35A0DG1 |
| 3000K | 80 | 30.7 | 32.3 | 178.7 | 65 | L128-3080SA35A0DG1 |
| 3500K | 80 | 30.9 | 32.5 | 179.9 | 65 | L128-3580SA35A0DG1 |
| 4000K | 80 | 32.5 | 34.2 | 189.3 | 65 | L128-4080SA35A0DG1 |
| 5000K | 80 | 32.5 | 34.2 | 189.3 | 65 | L128-5080SA35A0DG1 |
| 5700K | 80 | 32.5 | 34.2 | 189.3 | 65 | L128-5780SA35A0DG1 |
| 6500K | 80 | 31.8 | 33.5 | 185.4 | 65 | L128-6580SA35A0DG1 |
| 2700K | 90 | 25.0 | 26.1 | 144.4 | 65 | L128-2790SA35A0DG1 |
| 3000K | 90 | 26.0 | 27.1 | 150.0 | 65 | L128-3090SA35A0DG1 |
| 3500K | 90 | 27.0 | 28.1 | 155.5 | 65 | L128-3590SA35A0DG1 |
| 4000K | 90 | 28.3 | 29.5 | 163.3 | 65 | L128-4090SA35A0DG1 |
| 5000K | 90 | 28.0 | 29.2 | 161.6 | 65 | L128-5090SA35A0DG1 |
| 5700K | 90 | 28.0 | 29.2 | 161.6 | 65 | L128-5790SA35A0DG1 |
| 6500K | 90 | 27.6 | 28.8 | 159.4 | 65 | L128-6590SA35A0DG1 |
