Description

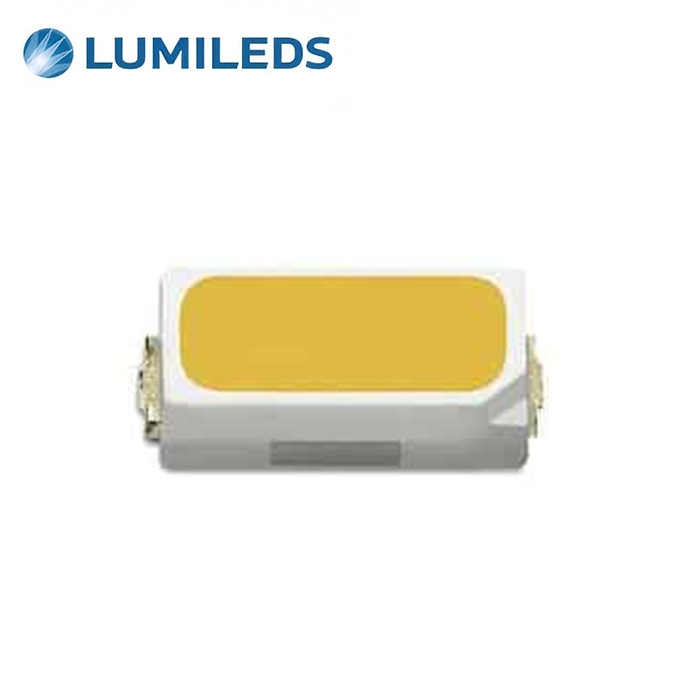

LUXEON 3014 with FreshFocus Technology for Marbled Meat
The LUXEON 3014 with FreshFocus Technology creates the most impactful lighting ever available by accentuating the freshness and overall visual appeal of a variety of fresh food areas such as supermarkets, delis, butcher shops and bakeries. LUXEON 3014 with FreshFocus Technology is an industry standard compatible 3.0mm x 1.4mm x 0.75mm footprint with specialty color and spectrum targeted for highlighting the colors of different foods.
Features & Benefits
- Highest flux densities with industry’s smallest Light Emitting Surface (LES)
- 3-step MacAdam ellipse color definition: Freedom from Binning for color consistency from luminaire to luminaire
- Up to 4x lower thermal resistance than competition, enabling smaller heatsinks and higher lumens
- Supported by a comprehensive optical, mechanical and electrical ecosystem
Applications
- Specialty Lighting
- Fresh Foods
- Linear Display
| Spectrum | Minimum CRI |
Luminous Flux (lm) | Typical Luminous Efficacy (lm/W) |
Part Number | |
|---|---|---|---|---|---|
| Minimum | Typical | ||||
| Marbled Meat | 80 | 14.5 | 17 | 86 | L130-MMSA001400001 |
| Product Attribute | Attribute Value |
|---|---|
| Manufacturer: | Lumileds |
| Product Category: | White LEDs |
| RoHS: | |
| Product: | White LEDs |
| Mounting Style: | SMD/SMT |
| Package / Case: | 3014 |
| Illumination Color: | Application Specific White |
| Luminous Flux/Radiant Flux: | 17 lm |
| Color Rendering Index – CRI: | 80 |
| Viewing Angle: | 116 deg |
| If – Forward Current: | 60 mA |
| Vf – Forward Voltage: | 3.1 V |
| Power Rating: | 186 mW |
| Length: | 3 mm |
| Width: | 1.4 mm |
| Height: | 0.75 mm |
| Minimum Operating Temperature: | – 40 C |
| Maximum Operating Temperature: | + 105 C |
| Lens Color: | Tinted |
| Lens Dimensions: | 2.5 mm x 1.15 mm |
| Lens Shape: | Rectangular |
| Lens Transparency: | Diffused |
| Series: | FreshFocus 3014 |
| Packaging: | Reel |
| Brand: | Lumileds |
| Moisture Sensitive: | Yes |
| Product Type: | White LEDs |
| 3000 | |
| Subcategory: | LEDs |
| Tradename: | LUXEON |
| Type: | High Power LEDs |
