Description

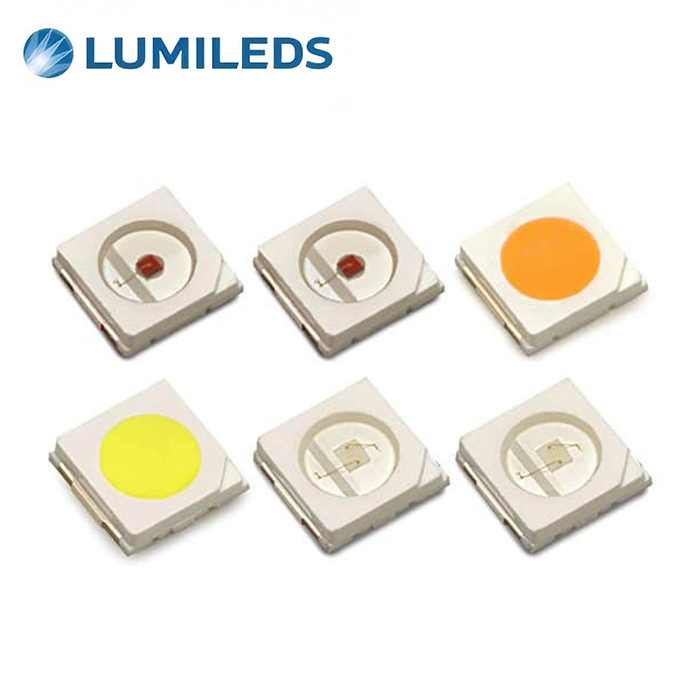

LUXEON 3535L Color Line
The LUXEON 3535L Color Line enables a new era of color lighting. This robust color line provides high performance and is targeted at cost effective designs. Complemented by a broad range of white offerings, the LUXEON 3535L Color Line enables RGBW applications. This product line extends the comprehensive LUXEON Color Family.
Features & Benefits
- Industry standard package enables drop-in replacement for existing 3535 packages
- Single die and single source architecture for optical control
- Common focal length with LUXEON Rebel and LUXEON Z Color LEDs
- Full color palette for a wider spectrum range
Applications
- Architectural & Entertainment
- Lamps
- Color Tunable Illumination
- Specialty
- Emergency Vehicle
- Signage
Product performance for LUXEON 3535L Color Line at 100mA,Tj=25°C.
Note: Royal Blue measured in peak wavelength and radiometric power.
| Color | Dominant or Peak Wavelength (nm) |
Luminous Flux (lm) or Radiometric Power (mW) |
Part Number | ||
|---|---|---|---|---|---|
| Minimum | Maximum | Minimum | Typical | ||
 Red |
620 | 630 | 10.0 | 15.0 | L135-R6250R3500000 |
 Red-Orange |
610 | 620 | 13.0 | 20.0 | L135-O6150R3500000 |
 PC Amber |
– | – | 24.0 | 41.5 | L135-A589003500000 |
 Lime |
– | – | 44.0 | 64.0 | L135-L567003500000 |
 Green |
520 | 540 | 21.0 | 36.5 | L135-G525003500000 |
 Blue |
469 | 480 | 8.2 | 12.5 | L135-B475003500000 |
 Royal Blue |
440 | 455 | 130 | 160 | L135-U450003500000 |
