Description

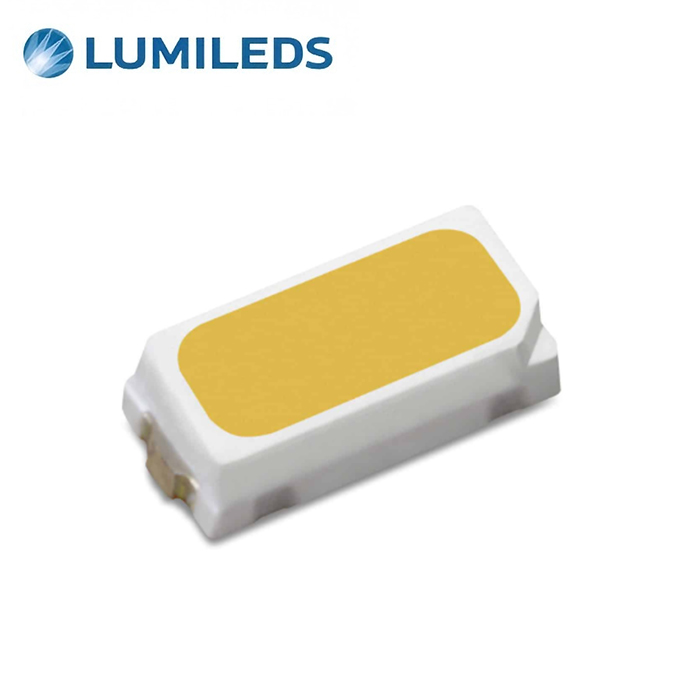

LUXEON 3014
LUXEON 3014 has a compact package size of 3.0mm x 1.4mm x 0.70mm-ideal for achieving uniform light output where space is limited, such as linear applications, tube lighting and signage. LUXEON 3014 is hot-color targeted at a junction temperature of 65°C, ensuring color consistency and meeting ANSI standards at operating conditions.
Features & Benefits
- Compact package design affirms uniformity and reduction in spottiness
- Hot-color targeting ensures better color control
- 1/9th ANSI micro-color binning enables tight color control
- 120mA maximum driving current allows outstanding brightness
Applications
- Downlights
- Linear
- Sconce
- Wall Grazer
- Wall Wash
Product performance of LUXEON 3014 at 60mA and 30mA, at specified test conditions.
| Nominal CCT |
Minimum CRI |
Luminous Flux (lm) | Typical Luminious Efficacy (lm/W) |
Typical Luminous Flux (lm) |
Typical Luminous Efficacy (lm/W) |
Part Number | |
|---|---|---|---|---|---|---|---|
| Minimum | Typical | ||||||
| 60mA | 30mA | ||||||
| 8000K | 70 | 25.0 | 30.4 | 172 | 16.1 | 190 | L130-8070001400001 |
| 10000K | 70 | 23.0 | 29.8 | 168 | 15.8 | 186 | L130-1070001400001 |
| 2200K | 80 | 19.0 | 24.9 | 141 | 13.2 | 155 | L130-2280HE1400001 |
| 2500K | 80 | 21.0 | 26.8 | 151 | 14.2 | 167 | L130-2580HE1400001 |
| 2700K | 80 | 23.0 | 28.0 | 158 | 14.8 | 175 | L130-2780HE1400001 |
| 3000K | 80 | 23.0 | 28.9 | 163 | 15.3 | 180 | L130-3080HE1400001 |
| 3500K | 80 | 23.0 | 29.9 | 169 | 15.8 | 187 | L130-3580HE1400001 |
| 4000K | 80 | 25.0 | 30.4 | 172 | 16.1 | 190 | L130-4080HE1400001 |
| 5000K | 80 | 25.0 | 30.9 | 175 | 16.4 | 193 | L130-5080HE1400001 |
| 5700K | 80 | 25.0 | 30.5 | 172 | 16.2 | 190 | L130-5780HE1400001 |
| 6500K | 80 | 25.0 | 29.8 | 168 | 15.8 | 186 | L130-6580HE1400001 |
| 2200K | 90 | 16.0 | 20.3 | 115 | 10.7 | 126 | L130-2290001400001 |
| 2500K | 90 | 16.0 | 22.5 | 127 | 11.9 | 140 | L130-2590001400001 |
| 2700K | 90 | 18.0 | 23.2 | 131 | 12.2 | 144 | L130-2790001400001 |
| 3000K | 90 | 19.0 | 24.3 | 137 | 12.8 | 151 | L130-3090001400001 |
| 3500K | 90 | 19.0 | 25.4 | 144 | 13.4 | 158 | L130-3590001400001 |
| 4000K | 90 | 20.0 | 26.3 | 149 | 13.9 | 163 | L130-4090001400001 |
| 5000K | 90 | 20.0 | 26.2 | 148 | 13.8 | 163 | L130-5090001400001 |
| 5700K | 90 | 20.0 | 26.0 | 147 | 13.7 | 161 | L130-5790001400001 |
| 6500K | 90 | 20.0 | 26.0 | 147 | 13.7 | 161 | L130-6590001400001 |
| 2200K | 95 | 15.5 | 20.1 | 114 | 10.7 | 126 | L130-2295001400001 |
| 2500K | 95 | 18.0 | 20.7 | 117 | 11.0 | 135 | L130-2595001400001 |
| 2700K | 95 | 18.0 | 20.7 | 117 | 11.0 | 130 | L130-2795001400001 |
| 3000K | 95 | 20.0 | 22.6 | 128 | 12.0 | 142 | L130-3095001400001 |
| 3500K | 95 | 20.0 | 23.9 | 135 | 12.7 | 15 | L130-3595001400001 |
| 4000K | 95 | 19.5 | 23.9 | 135 | 12.7 | 151 | L130-4095001400001 |
| 5000K | 95 | 19.5 | 23.7 | 134 | 12.6 | 149 | L130-5095001400001 |
| 5700K | 95 | 19.5 | 23.7 | 134 | 12.6 | 149 | L130-5795001400001 |
