Description

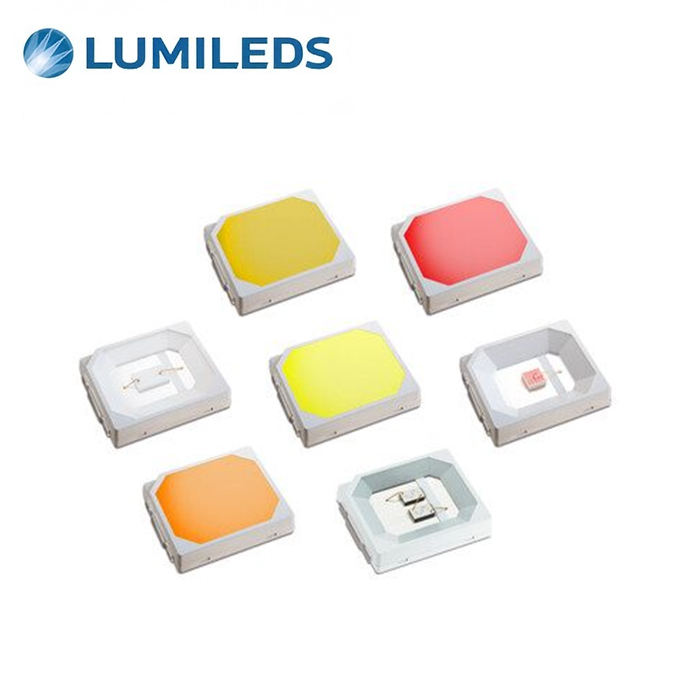

LUXEON 2835 Color Line
The LUXEON 2835 Color Line enables a new era of color lighting. This robust color line provides high performance and is targeted at cost effective designs. Complemented by a broad range of white offerings, the LUXEON 2835 Color Line enables RGBW applications. This product line extends the comprehensive LUXEON Color Family.
Features & Benefits
- Single die and single source architecture for optical control
- Full color palette for a wider spectrum range
Applications
- Panel / Soft Lights
- Wall Grazer
- Linear
- Wall Wash
- Decorative
- Retrofit Lamps
LUXEON 2835 Colors product performance at 120mA and 200mA,Tj=25°C.
| Color | Dominant or Peak Wavelength (nm) |
Luminous Flux (lm) or Radiometric Power (mW) |
Part Number | |||
|---|---|---|---|---|---|---|
| Minimum | Maximum | Minimum | 120mA Typical | 200mA Typical | ||
 Far Red |
720 | 740 | 85 | 98 | 160 | L128-FRD1003500000 |
 Deep Red |
650 | 670 | 98 | 155 | 254 | L128-DRD1003500000 |
| Red |
620 | 630 | 15 | 20 | 31 | L128-RED1003500000 |
 Red-Orange |
610 | 620 | 19 | 27 | 43 | L128-RNG1003500000 |
| PC Red-Orange |
21 | 24 | 36 | L128-PCO1003500000 | ||
 PC Amber |
– | – | 44 | 52 | 83 | L128-PCA1003500000 |
 Mint |
– | – | 69 | 77 | 120 | L128-MNT1003500000 |
 Lime |
– | – | 70 | 82 | 124 | L128-LME1003500000 |
 Green |
520 | 540 | 40 | 47 | 62 | L128-GRN1003500000 |
| 520 | 540 | 48 | 58 | 85 | L128-GRN2003500000 | |
 Cyan |
490 | 510 | 21 | 30 | 41 | L128-CYN1003500000 |
 Blue |
469 | 480 | 13 | 18 | 27 | L128-BLU1003500000 |
| PC Blue |
– | – | 16 | 20 | 30 | L128-PCB1003500000 |
 Royal Blue |
440 | 455 | 185 | 230 | 366 | L128-RYL1003500000 |
LUXEON 2835 White product performance at 120mA,Tj=25°C.
| Color | Nominal CCT | Minimum CRI | Luminous Flux (lm) | Typical Luminous Efficacy (lm/W) |
Part Number | |
|---|---|---|---|---|---|---|
| Minimum | Typical | |||||
| White | 5700K | 70 | 58 | 68 | 198 | L128-5770003500000 |
| 3000K | 80 | 54 | 62 | 182 | L128-3080003500000 | |
| 4000K | 80 | 56 | 64 | 187 | L128-4080003500000 | |
Product performance of LUXEON 2835 Colors 36V at specified test current 20mA, Tj=25ºC.
| Color | Dominant or Peak Wavelength (nm) |
Luminous Flux (lm) or Radiometric Power (mW) |
Part Number | ||
|---|---|---|---|---|---|
| Minimum | Maximum | Minimum | 20mA TYPICAL | ||
| PC Red-Orange |
615 | 620 | 21 | 27 | L128-PCO10L3500000 |
| Lime |
563 | 568 | 127 | 139 | L128-LME10L3500000 |
| PC Green 1 |
530 | 536 | 126 | 134 | L128-PCG10L3500000 |
| PC Green 2 |
543 | 550 | 134 | 145 | L128-PCG20L3500000 |
| Royal Blue |
440 | 455 | 357 | 386 | L128-RYL10L3500000 |
