Description

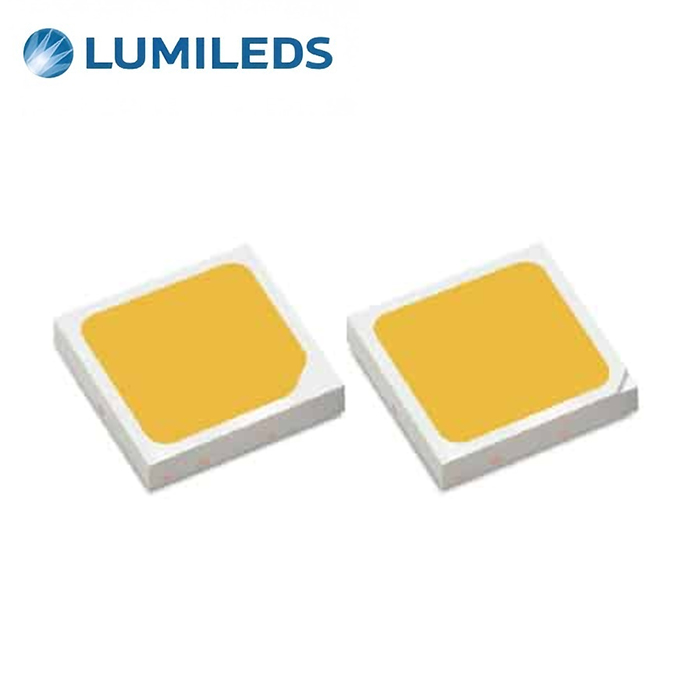

LUXEON 3030 HE and 3030 HE Plus
Now with Platinum Award Winning NightScape Technology: Broadband white light with less than 2% blue content for better outdoor illumination.
The Build Back Better Awards champion innovation, creativity, environmental leadership, and social purpose in buildings. The Build Back Better Awards celebrate and reward the technologies and initiatives that will help us shape projects that point the way to a better future.
LUXEON 3030 HE and LUXEON 3030 HE Plus are superior high efficacy, mid-power packages built on the legacy of the LUXEON 3030 product line. It serves as a go-to solution for various indoor and outdoor fixture applications that require top-notch lm/W and umol/J performance and long lifetime. LUXEON 3030 HE and LUXEON 3030 HE Plus adopt quadrant bin structure within 3 SDCM, which enables 2 SDCM by kitting.
Features & Benefits
- Broadband white light with <2%blue content – NightScape Technology
- Superior high efficacy at rated current enables outstanding lm/W at the system level
- Reliable package design from a proven product line affirms long application lifetime
- Quadrant bin structure within 3 SDCM enables 2 SDCM by kitting
- Industry-standard package allows drop-in replacement for existing 3030 packages
- Robust coating for enhanced sulfur protection (LUXEON 3030 HE Plus)
Applications
- Downlights
- Linear
- Panel/Soft Lights
- Spotlights
- Troffers
- Wall Pack
Product performance of LUXEON 3030 HE and LUXEON 3030 HE Plus at 65mA, Tj= 25°C.
| Product | Nominal CCT |
Minimum CRI |
Luminous Flux (lm) | Typical Luminous Efficacy (lm/W) |
Part Numbers | |
|---|---|---|---|---|---|---|
| Minimum | Typical | |||||
| 65mA | ||||||
| 3030 HE | 3000K | 70 | 32.7 | 35.5 | 195 | L130-3070HB30000B1 |
| 3500K | 70 | 34.0 | 37.0 | 203 | L130-3570HB30000B1 | |
| 4000K | 70 | 34.5 | 37.5 | 206 | L130-4070HB30000B1 | |
| 5000K | 70 | 34.5 | 37.5 | 206 | L130-5070HB30000B1 | |
| 5700K | 70 | 34.0 | 37.0 | 203 | L130-5770HB30000B1 | |
| 6500K | 70 | 33.5 | 36.4 | 200 | L130-6570HB30000B1 | |
| 2700K | 80 | 29.0 | 33.5 | 184 | L130-2780HB30000B1 | |
| 3000K | 80 | 29.5 | 34.0 | 187 | L130-3080HB30000B1 | |
| 3500K | 80 | 30.0 | 35.0 | 192 | L130-3580HB30000B1 | |
| 4000K | 80 | 32.0 | 36.5 | 201 | L130-4080HB30000B1 | |
| 5000K | 80 | 31.5 | 36.0 | 198 | L130-5080HB30000B1 | |
| 5700K | 80 | 31.5 | 36.0 | 198 | L130-5780HB30000B1 | |
| 6500K | 80 | 31.0 | 35.5 | 195 | L130-6580HB30000B1 | |
| 2700K | 90 | 24.5 | 28.0 | 154 | L130-2790HB30000B1 | |
| 3000K | 90 | 25.0 | 28.5 | 157 | L130-3090HB30000B1 | |
| 3500K | 90 | 26.0 | 29.5 | 162 | L130-3590HB30000B1 | |
| 4000K | 90 | 27.5 | 30.5 | 168 | L130-4090HB30000B1 | |
| 5000K | 90 | 27.0 | 30.0 | 165 | L130-5090HB30000B1 | |
| 5700K | 90 | 27.0 | 30.0 | 165 | L130-5790HB30000B1 | |
| 6500K | 90 | 27.0 | 30.0 | 165 | L130-6590HB30000B1 | |
| 3030 HE Plus | 1850K | 50 | 29.5 | 32.2 | 183 | L130-NSC1HA30000C1 |
| 2200K | 70 | 29.5 | 32.0 | 182 | L130-2270HA30000B1 | |
| 3000K | 70 | 34.0 | 37.0 | 210 | L130-3070HA30000B1 | |
| 3500K | 70 | 35.0 | 38.0 | 216 | L130-3570HA30000B1 | |
| 4000K | 70 | 36.0 | 39.0 | 221 | L130-4070HA30000B1 | |
| 5000K | 70 | 36.0 | 39.0 | 221 | L130-5070HA30000B1 | |
| 5700K | 70 | 35.0 | 38.0 | 216 | L130-5770HA30000B1 | |
| 6500K | 70 | 34.5 | 37.5 | 213 | L130-6570HA30000B1 | |
| 2700K | 80 | 30.0 | 33.5 | 190 | L130-2780HA30000B1 | |
| 3000K | 80 | 32.0 | 35.0 | 199 | L130-3080HA30000B1 | |
| 3500K | 80 | 33.0 | 36.0 | 204 | L130-3580HA30000B1 | |
| 4000K | 80 | 34.0 | 37.0 | 210 | L130-4080HA30000B1 | |
| 5000K | 80 | 34.0 | 37.0 | 210 | L130-5080HA30000B1 | |
| 5700K | 80 | 33.5 | 36.5 | 207 | L130-5780HA30000B1 | |
| 6500K | 80 | 33.0 | 36.0 | 204 | L130-6580HA30000B1 | |
| 2700K | 90 | 26.0 | 28.5 | 162 | L130-2790HA30000B1 | |
| 3000K | 90 | 27.0 | 29.5 | 167 | L130-3090HA30000B1 | |
| 3500K | 90 | 27.5 | 30.5 | 173 | L130-3590HA30000B1 | |
| 4000K | 90 | 28.5 | 31.5 | 179 | L130-4090HA30000B1 | |
| 5000K | 90 | 28.5 | 31.5 | 179 | L130-5090HA30000B1 | |
| 5700K | 90 | 28.5 | 31.5 | 179 | L130-5790HA30000B1 | |
| 6500K | 90 | 28.0 | 31.0 | 176 | L130-6590HA30000B1 | |
| 2200K | 70 | 29.5 | 33.1 | 188 | L130-2270HA30000C1 | |
| 3000K | 70 | 34.0 | 37.7 | 215 | L130-3070HA30000C1 | |
| 3500K | 70 | 35.0 | 38.7 | 221 | L130-3570HA30000C1 | |
| 4000K | 70 | 36.0 | 39.4 | 224 | L130-4070HA30000C1 | |
| 5000K | 70 | 36.0 | 39.4 | 224 | L130-5070HA30000C1 | |
| 5700K | 70 | 35.0 | 38.4 | 219 | L130-5770HA30000C1 | |
| 6500K | 70 | 34.5 | 38.0 | 216 | L130-6570HA30000C1 | |
| 2700K | 80 | 30.0 | 33.8 | 193 | L130-2780HA30000C1 | |
| 3000K | 80 | 32.0 | 35.2 | 201 | L130-3080HA30000C1 | |
| 3500K | 80 | 33.0 | 36.5 | 208 | L130-3580HA30000C1 | |
| 4000K | 80 | 34.0 | 37.6 | 214 | L130-4080HA30000C1 | |
| 5000K | 80 | 34.0 | 37.6 | 214 | L130-5080HA30000C1 | |
| 5700K | 80 | 33.5 | 37.0 | 211 | L130-5780HA30000C1 | |
| 6500K | 80 | 33.0 | 36.6 | 209 | L130-6580HA30000C1 | |
| 2700K | 90 | 26.0 | 28.7 | 163 | L130-2790HA30000C1 | |
| 3000K | 90 | 27.0 | 30.1 | 171 | L130-3090HA30000C1 | |
| 3500K | 90 | 27.5 | 30.4 | 173 | L130-3590HA30000C1 | |
| 4000K | 90 | 28.5 | 31.6 | 180 | L130-4090HA30000C1 | |
| 5000K | 90 | 28.5 | 32.3 | 184 | L130-5090HA30000C1 | |
| 5700K | 90 | 28.5 | 32.2 | 184 | L130-5790HA30000C1 | |
| 6500K | 90 | 28.0 | 31.3 | 178 | L130-6590HA30000C1 | |
