Description

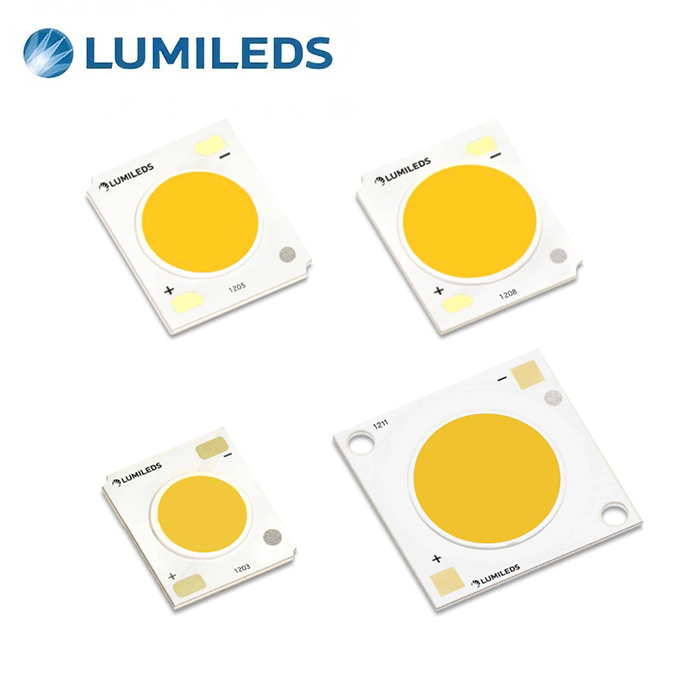

Retail and hospitality lighting needs are crystal clear: very high efficacy and excellent quality of light that makes colors pop and encourages customers to engage with displays and products. LUXEON CoB Core Pro delivers the light and efficacy along with long-life and color stability for high value installations.
LUXEON CoB Core Pro and EU Ecodesign: Please consult the product datasheet for details including the energy efficiency class as specified in Commission Delegated Regulation (EU) 2019/2015. LUXEON CoB Core Pro part numbers are in energy efficiency classes E and F.
Features & Benefits
- Best in class efficacy and superior color quality
- Multiple LES sizes and flux output that fit different applications and requirements
- Superior thermal resistance enables the use of smaller heatsinks and prolonged product life span
- Supported by a comprehensive optical, mechanical, and electrical ecosystem
- CoB LED package
Applications
- Spotlight
- Track Lights
- Downlights
- Low Bay
Product performance of LUXEON CoB Core Pro at specified test current, Tj=85°C.
| LES (mm) |
Nominal CCT |
Minimum CRI |
Luminous Flux (lm) | Typical Luminous
Efficacy (lm/W) |
Test Current (mA) |
Energy
Efficiency Class |
Part Number | |
|---|---|---|---|---|---|---|---|---|
| Minimum | Typical | |||||||
| 9 | 3000K | 90 | 729 | 810 | 117 | 200 | F | L2C5-30901202X09B0 |
| 9 | 3000K | 90 | 1210 | 1344 | 130 | 300 | E | L2C5-30901203X09B0 |
| 13 | 3000K | 90 | 2462 | 2735 | 130 | 600 | E | L2C5-30901205X13B0 |
| 15 | 3000K | 90 | 3676 | 4084 | 130 | 900 | E | L2C5-30901208X15B0 |
| 15 | 3000K | 90 | 3780 | 4200 | 134 | 900 | E | L2C5-30901208X15B1 |
| 15 | 3000K | 90 | 3879 | 4310 | 141 | 900 | E | L2C5-30901210X15B0 |
| 19 | 3000K | 90 | 4959 | 5510 | 132 | 1200 | E | L2C5-30901211X19B0 |
