Description

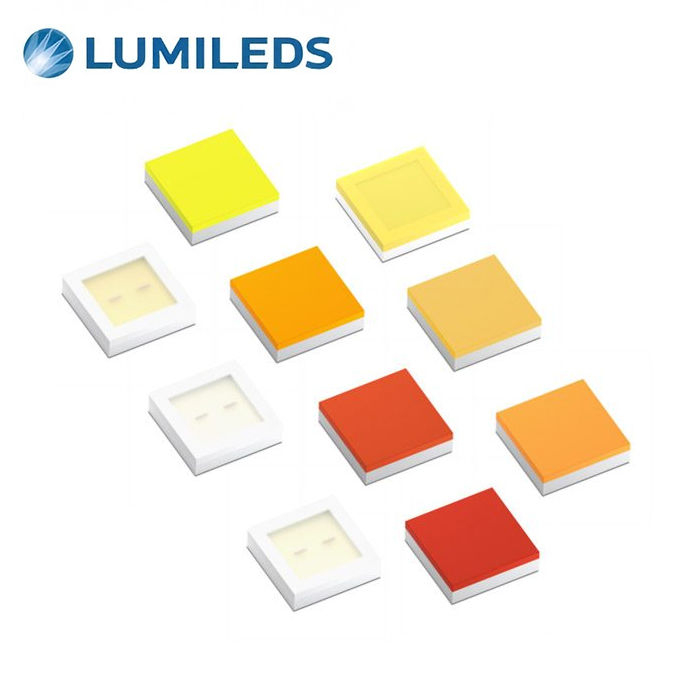

Designed with space and energy efficiency in mind, LUXEON HL1Z Colors deliver deep hues from a small package, with minimal power consumption. This is enabled by CSP (Chip Scale Package) technology with an LED size of only 1.4mm x 1.4mm. This product line is suited for both applications with individual emitters as well as multicolor clusters.
LUXEON HL1Z Fusion Red, Green, and Blue are optimized to create compact, high-output, directional, white-tunable sources between 1,800K and 6,500K that can consistently follow the black body locus or create unique experiences with subtle off-white hues.
Features & Benefits
- Small package size (1414) allows colored spots with small beam angles from a minimal Light Emitting Surface (LES).
- Supports high power density with up to 2W electrical power per LED.
- Superior color stability over temperature with phosphor-converted saturated color LEDs.
- Complementary to the LUXEON HL1Z white LED series
Applications
- Spotlights
- Downlights
- Wall Wash
- Landscape Lighting
- Specialized Lighting
Product performance of LUXEON HL1Z Colors & Fusions at specified test current 350mA, Tj=85ºC.
| Color | Dominant or Peak Wavelength (nm) |
Luminous Flux (lm) or Radiometric Power (mW) |
Part Number | ||
|---|---|---|---|---|---|
| Minimum | Maximum | Minimum | Typical | ||
 PC Red |
– | – | 18 | 20 | L1HZ-PCR1000000000 |
 PC Red Orange |
– | – | 32 | 35 | L1HZ-RNG1000000000 |
 PC Amber |
– | – | 110 | 119 | L1HZ-PCA1000000000 |
 PC Green |
– | – | 180 | 195 | L1HZ-PCG1000000000 |
| Green |
520 | 535 | 110 | 145 | L1HZ-GRN1000000000 |
 Blue |
470 | 485 | 42 | 57 | L1HZ-BLU1000000000 |
 Royal Blue |
450 | 460 | 550 | 610 | L1HZ-RYL1000000000 |
 Fusion Red |
– | – | 55 | 70 | L1HZ-FCR1100000000 |
 Fusion Green |
– | – | 134 | 152 | L1HZ-FCG1100000000 |
 Fusion Blue |
– | – | 111 | 137 | L1HZ-FCB1100000000 |
