Description

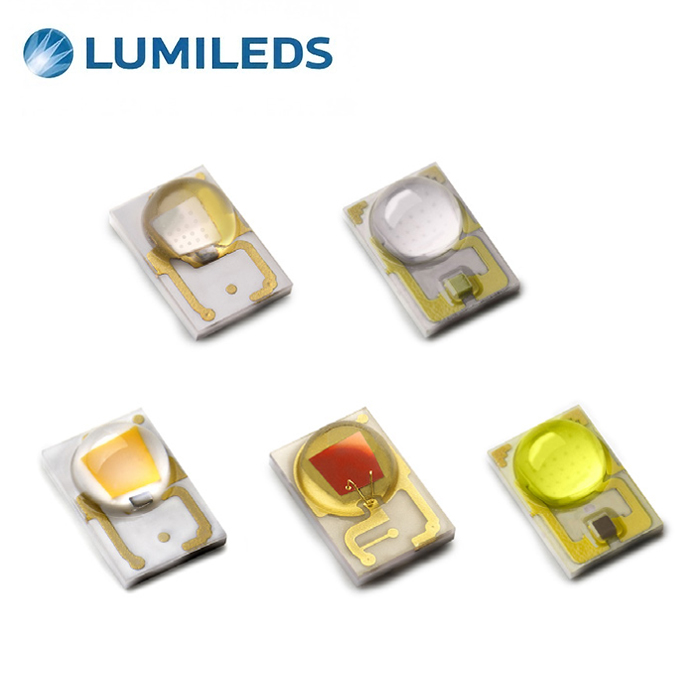

LUXEON Rebel Color Line
The LUXEON Rebel Color Line has leading light output, color stability, flux density and clear saturated colors. These color LEDs are ideal for a wide variety of lighting, signaling, signage and entertainment applications. Every LUXEON Rebel Color emitter has built-in quality, reliability, lumen maintenance and the ease of manufacturing needed to create a superior, high quality light. LUXEON Rebel Color emitters give designers an endless palette of colors to work with, adding interest, dimension and liveliness to all lighting projects.
Features & Benefits
- Full color palette for a wider spectrum range
- Highest efficacy available for colors, allowing for lower power consumption
- High flux and leading hot and cold performance for saturated colors
- Fully developed ecosystem for LUXEON Rebel platforms
Applications
- Architectural & Entertainment
- Lamps
- Specialty
- Emergency Lighting
- Entertainment
Product performance of LUXEON Rebel Color Line at test conditions.
| Color | Dominant or Peak Wavelength (nm) |
Luminous Flux(lm) or Radiometric Power(mW) |
Test Current (mA) | Part Number | ||
|---|---|---|---|---|---|---|
| Minimum | Maximum | Minimum | Typical | |||
Deep Red |
650 | 670 | 270 | 360 | 350 | LXM3-PD01 |
Red |
620 | 645 | 60 | 62 | 350 | LXM2-PD01-0060 |
| 620 | 645 | 50 | 53 | 350 | LXM2-PD01-0050 | |
| 620 | 645 | 40 | 48 | 350 | LXM2-PD01-0040 | |
| 620 | 645 | 50 | 64 | 350 | LXM5-PD01 | |
Red-Orange |
610 | 620 | 70 | 72 | 350 | LXM2-PH01-0070 |
| 610 | 620 | 60 | 67 | 350 | LXM2-PH01-0060 | |
| 610 | 620 | 50 | 90 | 350 | LXM5-PH01 | |
PC Amber |
594 | 604 | 80 | 110 | 350 | LXM2-PL01-0000 |
Amber |
585 | 595 | 50 | 99 | 350 | LXM5-PL01 |
Lime |
566 | 569 | 140 | 184 | 350 | LXML-PX02-0000 |
Green |
520 | 540 | 100 | 102 | 350 | LXML-PM01-0100 |
| 520 | 540 | 90 | 95 | 350 | LXML-PM01-0090 | |
| 520 | 540 | 80 | 88 | 350 | LXML-PM01-0080 | |
| 520 | 540 | 70 | 79 | 350 | LXML-PM01-0070 | |
Cyan |
490 | 515 | 80 | 83 | 350 | LXML-PE01-0080 |
| 490 | 515 | 70 | 76 | 350 | LXML-PE01-0070 | |
| 490 | 515 | 60 | 67 | 350 | LXML-PE01-0060 | |
Blue |
460 | 485 | 40 | 41 | 350 | LXML-PB01-0040 |
| 460 | 485 | 30 | 35 | 350 | LXML-PB01-0030 | |
Royal Blue |
440 | 460 | 500 | 520 | 350 | LXML-PR01-0500 |
| 440 | 460 | 1100 | 1120 | 700 | LXML-PR02-1100 | |
| 440 | 460 | 1050 | 1070 | 700 | LXML-PR02-1050 | |
| 440 | 460 | 1000 | 1030 | 700 | LXML-PR02-1000 | |
| 440 | 460 | 950 | 970 | 700 | LXML-PR02-0950 | |
| 440 | 460 | 900 | 940 | 700 | LXML-PR02-0900 | |
| 440 | 460 | 800 | 890 | 700 | LXML-PR02-0800 | |
| 440 | 460 | 900 | 1030 | 700 | LXML-PR02-A900 | |
