Description

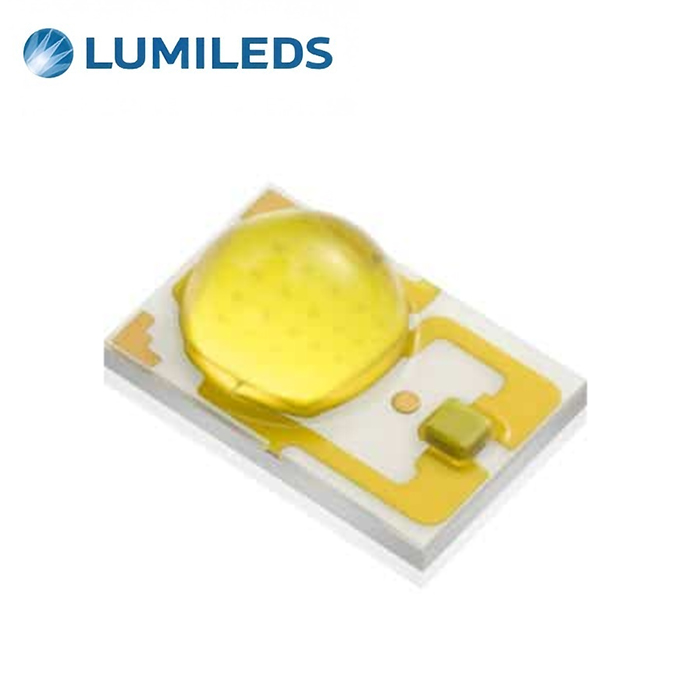

LUXEON Rebel
LUXEON Rebel LEDs deliver optimized combinations of light quality and light output needed for a variety of lighting applications. In addition to delivering specified correlated color temperature and color rendering combinations, these emitters deliver the efficacy, lifetime and reliability that all LUXEON LEDs are renowned for.
Features & Benefits
- Specified CCT & CRI combinations
- ANSI-compliant Quarter binning
- Exceeds ENERGY STAR® lumen maintenance requirements
- High efficacy for sustainable design
- More light delivered at operating temperature
- Recognized under the Component Recognition Program of Underwriters Laboratories Inc. UL listing E327436
Applications
- Outdoor
- Specialty
| Color | Part Number | Performance at Test Current | Typical Performance at Indicated Current | ||
|---|---|---|---|---|---|
| Minimum Luminous Flux (lm) | Test Current (mA) | Typical Luminous Flux (lm) | Drive Current (mA) | ||
| Cool White | LXML-PWC1-0090 | 90 | 350 | 160 | 700 |
| LXML-PWC1-0100 | 100 | 350 | 180 | 700 | |
| LXML-PWC1-0110 | 110 | 350 | 200 | 700 | |
| LXML-PWC1-0120 | 120 | 350 | 220 | 700 | |
| Neutral-White | LXML-PWN1-0090 | 90 | 350 | 160 | 700 |
| LXML-PWN1-0100 | 100 | 350 | 180 | 700 | |
| LXML-PWN1-0110 | 110 | 350 | 200 | 700 | |
| LXML-PWN1-0120 | 120 | 350 | 220 | 700 | |
