Description

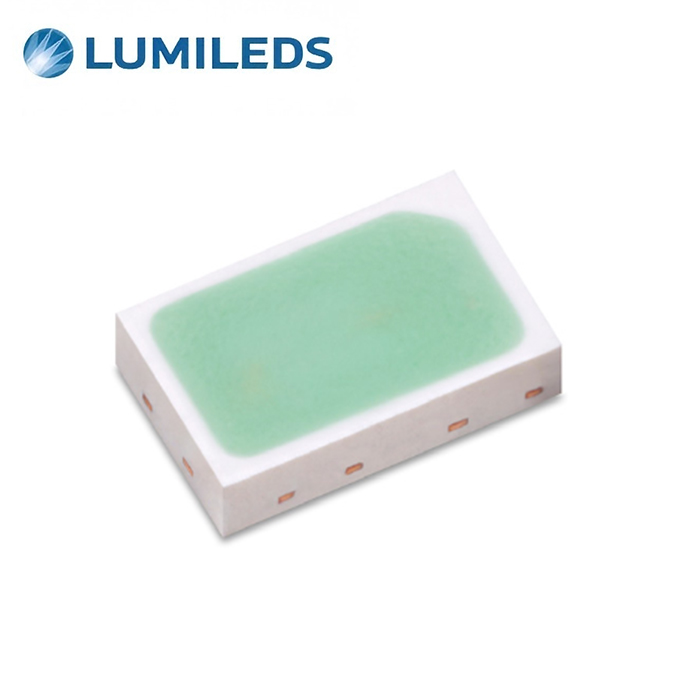

The LUXEON IR ONYX emitter features a continuous broadband infrared (IR) emission from 650 to 1100nm with superior light output characteristics. The product comes in an industry standard 2720 package and footprint for easy integration in existing designs. The LUXEON IR ONYX allows for new possibilities for miniaturization of spectroscopy and hyperspectral imaging applications in hand-held devices for mobile, industrial, and medical applications.
Features & Benefits
- Radiant Power over 40mW IR (600–1050nm) to reduce exposure time
- More than 80μW/nm over a broad range (750-1000nm)
- 2.75mm x 2.00mm package with a 2 pad configuration that is compatible with the industry common footprint
- Lumileds phosphor expertise resulting in robust, long lifetime phosphors
- Flat spectrum allows for ease of calibration
Applications
- Healthcare
- Hyperspectral Imaging
- Machine Vision
- Spectroscopy
Product performance and optical characteristics of LUXEON IR ONYX at 350mA, Tj=25°C.
| Wavelength (nm) | Typical FWHM
Beam Angle (°) |
Radiometric Power 600-1050nm (mW) |
Spectral Flux 750-1000nm (μW/nm) | Part Number | ||
|---|---|---|---|---|---|---|
| Minimum | Typical | Minimum | Typical | |||
| 600-1050 | 120 | 40 | 50 | 80 | 150 | L1IG-0750100000000 |
| Product Attribute | Attribute Value |
|---|---|
| Manufacturer: | Lumileds |
| Product Category: | Infrared Emitters |
| RoHS: | |
| Mounting Style: | SMD/SMT |
| Wavelength: | 850 nm |
| Beam Angle: | 120 deg |
| If – Forward Current: | 350 mA |
| Vf – Forward Voltage: | 3.2 V |
| Power Rating: | 50 mW |
| Minimum Operating Temperature: | – 40 C |
| Maximum Operating Temperature: | + 105 C |
| Package / Case: | 1108 (2720 metric) |
| Packaging: | Reel |
| Packaging: | Cut Tape |
| Packaging: | MouseReel |
| Brand: | Lumileds |
| Illumination Color: | Infrared |
| Product Type: | IR Emitters (IR LEDs) |
| Series: | LUXEON IR ONYX |
| 1000 | |
| Subcategory: | Infrared Data Communications |
| Unit Weight: | 0.102240 oz |
