Description

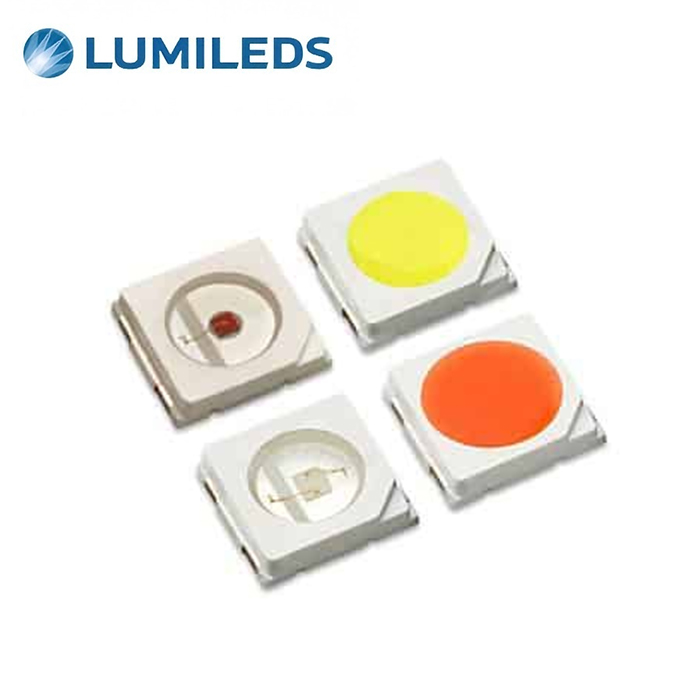

LUXEON SunPlus 35 Line
The ideal solution for lighting placed a short distance from the plant canopy, the LUXEON SunPlus 35 Line radiates low heat and satisfies diverse plant lighting requirements. Offering a lower photon output per emitter, these innovative LEDs enable excellent uniformity for consistent plant growth. Plus, the LUXEON SunPlus 35, Purple combines deep red and blue spectra-the two key wavelengths that are effective for photosynthesis-on a single chip.
Features & Benefits
- 3.5mm x 3.5mm package footprint
Applications
- Horticulture
Product performance of LUXEON SunPlus 35 Line at 100mA, Tj=25°C.
| Part | Color | Peak Wavelength (nm) |
PPF (μmol/s) in PAR (400 to 700nm) | PPF/W Typical (µmol/J) | Part Numbers | ||
|---|---|---|---|---|---|---|---|
| Minimum | Maximum | Minimum | Typical | ||||
| SunPlus 35 Line | Purple (2.5% Blue) | – | – | 0.45 | 0.51 | 1.80 | L1SP-PRP0003500000 |
| Purple (12.5% Blue) | – | – | 0.50 | 0.58 | 2.02 | L1SP-PRP1003500000 | |
| Purple (25% Blue) | – | – | 0.55 | 0.63 | 2.24 | L1SP-PRP2003500000 | |
| Lime | – | – | 0.60 | 0.65 | 2.13 | L1SP-LME0003500000 | |
