Description

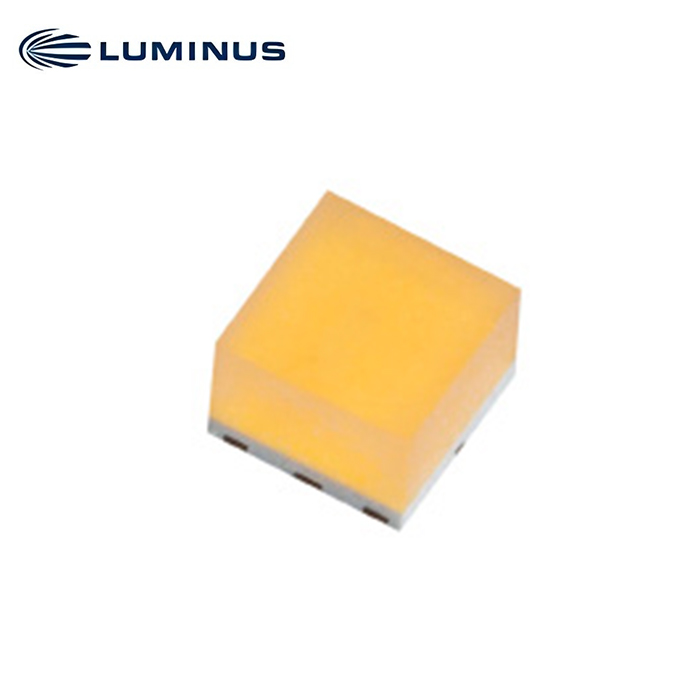

MP-1616-2103 SMD LED

Luminus Luminus Cube™ LEDs are lighting class solutions designed for high performance general lighting applications These state-of- the-art LEDs allow illumination engineers and designers to develop lighting solutions with maximum efficacy, brightness and overall quality The Luminus Cube™ is a unique LED that provides the benefits of a wide emission angle within a compact footprint The 1 6mm x 1 6mm package emits into a 135 degree viewing angle, enabling designers with new degrees of freedom to solve many of today’s most challenging lighting problems The very wide viewing angle promotes Energy Star compliance for replacement lamps, and results in increased mixing and uniformity for linear and area lighting The miniature package size with high lumen density creates a “point source” of light that provides flexibility to develop innovative optical solutions Additionally, the Luminus Cube advances the hallmark characteristics of the Luminus family, including high efficacy and color fidelity Luminus LEDs – the right choice for color quality, efficacy and reliability

Features
• Wide viewing angle: 135 degrees
• Hot lumen color targeted
• 1.63W maximum operating input power
• Compact: 1.6mm x 1.6mm
• High efficacy: up to 143 lumens per watt
• Wide color selection: 1800K-6500K
• 6V input
• Compatible with automatic placement equipment
• Compatible with infrared reflow solder process
• RoHs and REACH compliant

Applications
• Replacement lamps
• Panel lighting
• Down lights
• Cove lighting
• Architectural lighting
• Channel lighting



Product Selection Table

Test condition = 150 mA, 25C



1616 Mid Power Operating Characteristics

Optical and Electrical Characteristics(Ta=250C)



Absolute Maximum Ratings (Ta=250C)



Luminus Flux Bins (Ta= 25°C)
