Description

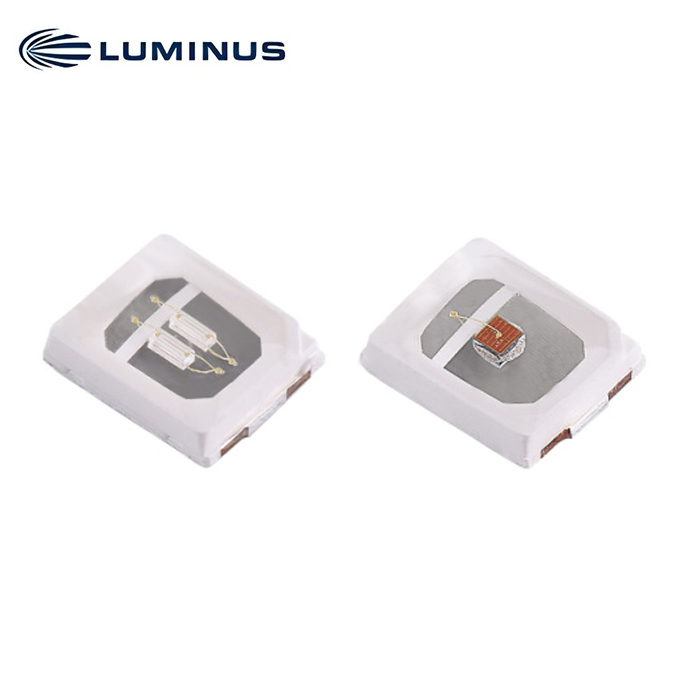

MP-2835 Series Color Series Package
Features
• Thermally Enhanced Package Design
• High flux output
• High current capability
• Compact Package Size
• Pb-free Reflow Soldering Application
• RoHS compliant
Applications
• Horticulture
• Architectural
• Decorative
• Billboard Light
• Industrial
Test condition = 60 mA(Tc=25 ºC)
| Color | Part Number | Radiant Flux (mW) | |
| Typ. | Min. | ||
| Deep Red | MP-2835-1100-DR | 62 | 50 |
| Far Red | MP-2835-1100-FR | 62 | 50 |
| Green | MP-2835-1100-PG | 100 | 90 |
| Blue | MP-2835-1200-B | 115 | 90 |
Test condition = 120 mA(T =25 ºC)
| Color | Part Number | Radiant Flux (lm) | |
| Typ. | Min. | ||
| Meat Red | MP-2835-1100-MR | 34 | 30 |
BINNING STRUCTURE
All MP-2835 Series monochromatic LEDs are tested for luminous flux/dominant wavelength and placed into one of the following
flux/wave length bins. The binning structure is universally applied across each monochromatic color of the MP-2835 Series product line.
Flux Bins
| Bin Code | Minimum | Maximum | Unit |
| D8 | 30 | 32 | lm |
| D9 | 32 | 34 | lm |
| E1 | 34 | 36 | lm |
| Bin Code | Minimum | Maximum | Unit |
| 6D | 34 | 42 | mw |
| 6E | 42 | 50 | mw |
| 6F | 50 | 58 | mw |
| 6G | 58 | 66 | mw |
| 6H | 66 | 74 | mw |
| 6L | 90 | 98 | mw |
| 6M | 98 | 110 | mw |
| 6N | 110 | 122 | mw |
Forward Voltage Bin
| Bin Code | Minimum | Maximum | Unit |
| A | 2.7 | 2.8 | V |
| B | 2.8 | 2.9 | V |
| C | 2.9 | 3.0 | V |
| B3 | 1.6 | 1.8 | V |
| C3 | 1.8 | 2.0 | V |
| D3 | 2.0 | 2.2 | V |
| E3 | 2.2 | 2.4 | V |
| G3 | 2.6 | 2.8 | V |
| H3 | 2.8 | 3.2 | V |
| J3 | 3.0 | 3.2 | V |
BINNING STRUCTURE
All MP-2835 Series monochromatic LEDs are tested for luminous flux/dominant wavelength and placed into one of the following flux/wavelength bins. The binning structure is universally applied across each monochromatic color of the MP-2835 Series product line.
Wavelength Bin
| Bin Code | Minimum (nm) | Maximum (nm) |
| B2 | 450 | 455 |
| B3 | 455 | 460 |
| B4 | 460 | 465 |
| GK | 510 | 515 |
| GE | 515 | 520 |
| GF | 520 | 525 |
| R5 | 635 | 640 |
| R6 | 640 | 645 |
| R7 | 645 | 650 |
| R8 | 650 | 655 |
| R9 | 655 | 660 |
| RA | 660 | 665 |
| RP | 725 | 730 |
| RQ | 730 | 735 |
| RR | 735 | 740 |
MP-2835 MID POWER OPERATING CHARACTERISTICS-MEAT RED
Optical and Electrical Characteristics(Tc = 25°C)
| Parameter | Symbol | Minimum | Typical | Maximum | Unit | Condition |
| Forward Voltage | Vf | 2.6 | 2.8 | 3.2 | V | If |
| Reverse Current | Ir | 10 | uA | VR=5V | ||
| View Angle | 2θ1/2 | 120 | ° | If=120mA | ||
| Thermal Resistance | Rthj-sp | 21 | °C/W | If=120mA | ||
| Electrostatic Discharge | ESD | 1000 | V | HBM | ||
| Peak Wavelength | λ | 635 | 640 | 645 | nm | If=120mA |
Absolute Maximum Ratings(Tc = 25°C)
| Parameter | Symbol | Rating | Unit |
| DC Forward Current | IFD | 300 | mA |
| Peak Pulse Current
(tp ≤ 10ms,Duty cycle = 1/10) |
IFP | 420 | mA |
| Reverse Voltage | VR | 5 | V |
| Power Dissipation | PD | 960 | mW |
| LED Junction Temperature | Tj | 120 | °C |
| Operation Temperature | T
opr |
-40 to +105 | °C |
| Storage Temperature | T
stg |
-40 to +105 | °C |
| Soldering Temperature | Tsol | 260°C for 10sec | |
MP-2835 MID POWER OPERATING CHARACTERISTICS-DEEP RED
Optical and Electrical Characteristics(Tc = 25°C)
| Parameter | Symbol | Minimum | Typical | Maximum | Unit | Condition |
| Forward Voltage | Vf | 1.8 | 2.0 | 2.4 | V | If |
| Reverse Current | Ir | 10 | uA | VR=5V | ||
| View Angle | 2θ1/2 | 120 | ° | If=60mA | ||
| Thermal Resistance | Rthj-sp | 20 | °C/W | If=60mA | ||
| Electrostatic Discharge | ESD | 1000 | V | HBM | ||
| Radiant Flux | Φe | 50 | 63 | mW | If=60mA | |
| Dominant Wavelength | λ | 650 | 660 | 665 | nm | If=60mA |
Absolute Maximum Ratings(Tc = 25°C)
| Parameter | Symbol | Rating | Unit |
| DC Forward Current | IFD | 200 | mA |
| Peak Pulse Current
(tp ≤ 10ms,Duty cycle = 1/10) |
IFP | 280 | mA |
| Reverse Voltage | VR | 5 | V |
| Power Dissipation | PD | 480 | mW |
| LED Junction Temperature | Tj | 115 | °C |
| Operation Temperature | T
opr |
-40 to +105 | °C |
| Storage Temperature | T
stg |
-40 to +105 | °C |
| Soldering Temperature | Tsol | 260°C for 10sec | |
MP-2835 MID POWER OPERATING CHARACTERISTICS-FAR RED
Optical and Electrical Characteristics(Tc = 25°C)
| Parameter | Symbol | Minimum | Typical | Maximum | Unit | Condition |
| Forward Voltage | Vf | 1.6 | 1.9 | 2.2 | V | If |
| Reverse Current | Ir | 10 | uA | VR=5V | ||
| View Angle | 2θ1/2 | 120 | ° | If=60mA | ||
| Thermal Resistance | Rthj-sp | 20 | °C/W | If=60mA | ||
| Electrostatic Discharge | ESD | 1000 | V | |||
| Radiant Flux | Φe | 50 | 62 | mW | If=60mA | |
| Peak Wavelength | λ | 725 | 730 | 740 | nm | If=60mA |
Absolute Maximum Ratings(Tc = 25°C)
| Parameter | Symbol | Rating | Unit |
| DC Forward Current | IFD | 250 | mA |
| Peak Pulse Current
(tp ≤ 10ms,Duty cycle = 1/10) |
IFP | 350 | mA |
| Reverse Voltage | VR | 5 | V |
| Power Dissipation | PD | 550 | mW |
| LED Junction Temperature | Tj | 115 | °C |
| Operation Temperature | T
opr |
-40~+105 | °C |
| Storage Temperature | T
stg |
-40~+105 | °C |
| Soldering Temperature | Tsol | 260°C for 10sec | |
MP-2835 MID POWER OPERATING CHARACTERISTICS-BLUE
Optical and Electrical Characteristics(Tc = 25°C)
| Parameter | Symbol | Minimum | Typical | Maximum | Unit | Condition |
| Forward Voltage | Vf | 2.6 | 2.8 | 3.2 | V | If |
| Reverse Current | Ir | 10 | uA | VR=5V | ||
| View Angle | 2θ1/2 | 120 | ° | If=60mA | ||
| Thermal Resistance | Rthj-sp | 22 | °C/W | If=60mA | ||
| Electrostatic Discharge | ESD | 1000 | V | |||
| Radiant Flux | Φe | 90 | 115 | 130 | mW | If=60mA |
| Dominant Wavelength | λ | 450 | 460 | 465 | nm | If=60mA |
