Description

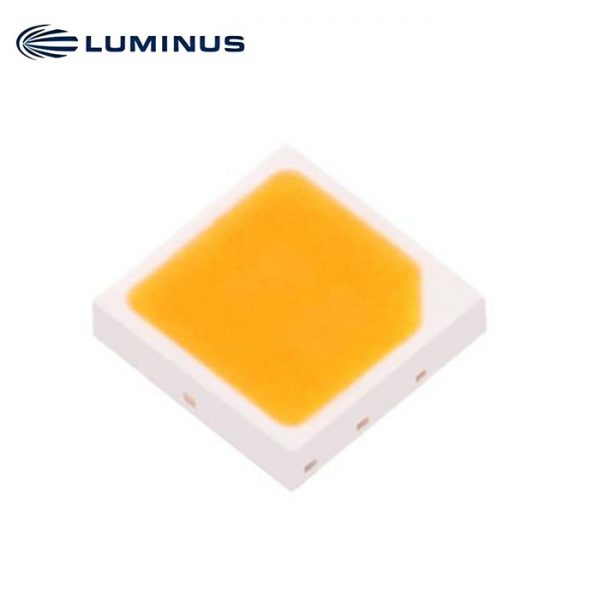

High-Performance 3030 Mid Power LED (65mA, 3V)
Luminus mid power LEDs are lighting class solutions designed for high performance general lighting applications These state-of-the-art LEDs allow illumination engineers and designers to develop lighting solutions with maximum efficacy, brightness and overall quality
Features
• High efficacy
• CRI Options: Minimum 80, 90, 95
• Low thermal resistance
• Compatible with automatic placement equipment
• Compatible with infrared reflow solder process
• RoHs and REACH compliant
Applications
• Replacement lamps
• Panel lighting
• Down lights
• Architectural lighting
Product Selection Table
Test condition = 65 mA, Tc=25 ºC
| Nominal CCT | Minimum CRI | Ordering Part Number | Minimum Flux @ 65mA
(Lumens) |
Typical Flux @65mA
(Lumens) |
| 2200K | 80 | MP-3030-110H-22-80 | 22 | 25 |
| 90 | MP-3030-110H-22-90 | 20 | 22 | |
| 2700K | 80 | MP-3030-110H-27-80 | 28 | 32 |
| 90 | MP-3030-110H-27-90 | 24 | 27 | |
| 95 | MP-3030-110H-27-95 | 20 | 24 | |
| 3000K | 80 | MP-3030-110H-30-80 | 28 | 33 |
| 90 | MP-3030-110H-30-90 | 24 | 28 | |
| 95 | MP-3030-110H-30-95 | 22 | 25 | |
| 3500K | 80 | MP-3030-110H-35-80 | 30 | 34 |
| 90 | MP-3030-110H-35-90 | 26 | 29 | |
| 95 | MP-3030-110H-35-95 | 22 | 25 | |
| 4000K | 80 | MP-3030-110H-40-80 | 30 | 35 |
| 90 | MP-3030-110H-40-90 | 26 | 29 | |
| 95 | MP-3030-110H-40-95 | 24 | 26 | |
| 5000K | 80 | MP-3030-110H-50-80 | 30 | 35 |
| 90 | MP-3030-110H-50-90 | 26 | 29 | |
| 5700K | 80 | MP-3030-110H-57-80 | 30 | 35 |
| 90 | MP-3030-110H-57-90 | 26 | 29 | |
| 95 | MP-3030-110H-57-95 | 24 | 26 | |
| 6500K | 80 | MP-3030-110H-65-80 | 30 | 35 |
| 90 | MP-3030-110H-65-90 | 26 | 29 |
MP-3030 Mid Power Operating Characteristics
Optical and Electrical Characteristics(Tc=250C)
| Parameter | Symbol | Minimum | Typical | Maximum | Unit | Condition |
| Forward Voltage | Vf | 2.6 | 2.8 | 3.0 | V | If=65mA |
| Reverse Current | Ir | 10 | uA | V =5V r | ||
| View Angle | 2θ1/2 | 120 | º | If=65mA | ||
| Thermal Resistance | Rthj-sp | 16 | ºC/W | If=65mA | ||
| Electrostatic Discharge | ESD | 1000 | V |
Absolute Maximum Ratings (Tc=250C)
| Parameter | Symbol | Rating | Unit |
| Forward Current | If | 200 | mA |
| Pulse Forward Current | Ifp | 300 | mA |
| Power Dissipation | Pd | 600 | mW |
| Reverse Voltage | V r | 5 | V |
| Operating Temperature | T
opr |
-40~+85 | °C |
| Storage Temperature | T
stg |
-40~+85 | °C |
| Junction Temperature | Tj | 125 | °C |
| Soldering Temperature | Tsld | 230 °C or 260 °C for 10 sec | |
Color Bins target chromaticity @ Tc=25 °C
| Color Code | Center | Radius | Angle(deg) | ||
| x | y | a | b | ||
| 22M5 | 0.5065 | 0.4171 | 0.012500 | 0.007000 | 53.00 |
| 27M5 | 0.4582 | 0.4099 | 0.013500 | 0.007000 | 53.42 |
| 30M5 | 0.4342 | 0.4028 | 0.013900 | 0.006800 | 53.13 |
| 35M5 | 0.4080 | 0.3916 | 0.015450 | 0.006900 | 54.00 |
| 40M5 | 0.3825 | 0.3798 | 0.015650 | 0.006700 | 53.43 |
| 50M5 | 0.3451 | 0.3554 | 0.013700 | 0.005900 | 59.37 |
| 57M5 | 0.3290 | 0.3417 | 0.011175 | 0.005500 | 58.35 |
| 65M5 | 0.3130 | 0.3290 | 0.011150 | 0.004750 | 58.34 |
| Luminus Flux Bins | ||
| Bin Code | Minimum Flux (Lumens) | Maximum Flux (Lumens) |
| D3 | 20 | 22 |
| D4 | 22 | 24 |
| D5 | 24 | 26 |
| D6 | 26 | 28 |
| D7 | 28 | 30 |
| D8 | 30 | 32 |
| D9 | 32 | 34 |
| E1 | 34 | 36 |
Forward Voltage Bins (Tc=25°C)
| Bin Code | Minimum Voltage (Volts) | Maximum Voltage ( Volts) |
| Z1 | 2.6 | 2.7 |
| A1 | 2.7 | 2.8 |
| B1 | 2.8 | 2.9 |
