Description

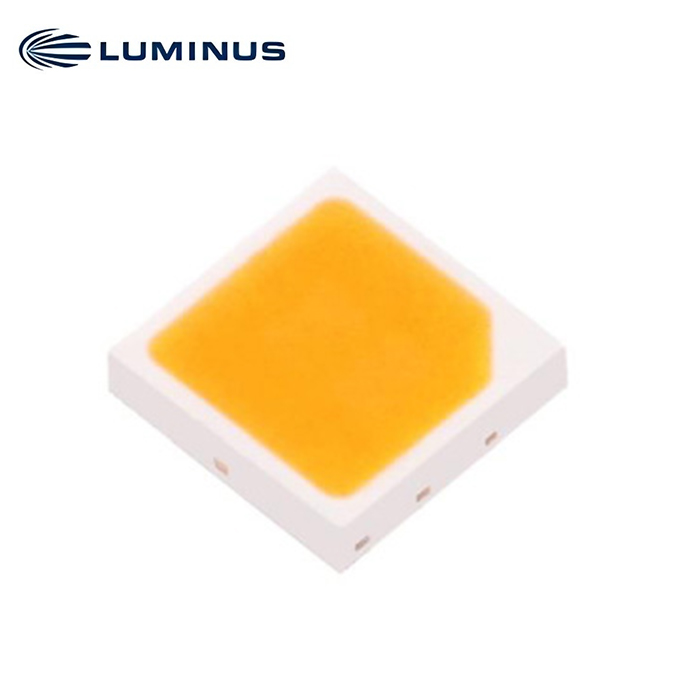

MP-3030-120K Mid Power LED
Features
• High efficacy
• CRI Options: Minimum 90
• Low thermal resistance
• Compatible with automatic placement equipment
• Compatible with infrared reflow solder process
Applications
• Replacement lamps
• Panel lighting
• Down lights
• Architectural lighting
Ordering Part Numbers
| Minimum CRI | Nominal CCT | Luminous Flux | Ordering Part Number | |
| Minimum Flux (lm) | Maximum Flux (lm) | |||
| 90 | 2700K | 30 | 33 | MP-3030-120K-27-90 |
| 3000K | 30 | 34 | MP-3030-120K-30-90 | |
| 3500K | 32 | 35 | MP-3030-120K-35-90 | |
| 4000K | 32 | 36 | MP-3030-120K-40-90 | |
| 5000K | 32 | 35.5 | MP-3030-120K-50-90 | |
| 5700K | 32 | 35.5 | MP-3030-120K-57-90 | |
| 6500K | 32 | 35.5 | MP-3030-120K-65-80 | |
Binning Structure
Each mid power product shipped will be labeled with its specific flux and voltage bins. Not all bins listed are available in all CCTs and CRIs.
Flux Bins
| Bin Code | Binning @ 65 mA, Tc= 25°C | |
| Minimum Flux (lm) | Maximum Flux (lm) | |
| D8 | 30 | 32 |
| D9 | 32 | 34 |
| E1 | 34 | 36 |
| E2 | 36 | 38 |
| E3 | 38 | 42 |
Forward Voltage Bins1
| Voltage Bin | Binning @ 65 mA, Tc= 25°C | |
| Minimum Voltage (V) | Maximum Voltage (V) | |
| Y1 | 2.5 | 2.6 |
| Z1 | 2.6 | 2.7 |
| A1 | 2.7 | 2.8 |
Binning Structure
Color Bins1
| Color Code | Center | Radius | Angle(°) | ||
| x | y | a | b | . | |
| 27M3 | 0.4582 | 0.4099 | 0.008100 | 0.004200 | 53.42 |
| 27M5 | 0.4582 | 0.4099 | 0.013500 | 0.007000 | 53.42 |
| 30M3 | 0.4342 | 0.4028 | 0.008340 | 0.004080 | 53.13 |
| 30M5 | 0.4342 | 0.4028 | 0.013900 | 0.006800 | 53.13 |
| 35M3 | 0.4080 | 0.3916 | 0.009270 | 0.004140 | 54.00 |
| 35M5 | 0.4080 | 0.3916 | 0.015450 | 0.006900 | 54.00 |
| 40M3 | 0.3825 | 0.3798 | 0.009390 | 0.004020 | 53.43 |
| 40M5 | 0.3825 | 0.3798 | 0.015650 | 0.006700 | 53.43 |
| 50M3 | 0.3451 | 0.3554 | 0.008220 | 0.003540 | 59.37 |
| 50M5 | 0.3451 | 0.3554 | 0.013700 | 0.005900 | 59.37 |
| 57M3 | 0.3290 | 0.3417 | 0.006705 | 0.003300 | 58.35 |
| 57M5 | 0.3290 | 0.3417 | 0.011175 | 0.005500 | 58.35 |
| 65M3 | 0.3130 | 0.3290 | 0.006690 | 0.002850 | 58.34 |
| 65M5 | 0.3130 | 0.3290 | 0.011150 | 0.004750 | 58.34 |
Absolute Maximum Ratings1,2
| Parameter | Symbol | Values | Unit |
| Forward Current | If | 400 | mA |
| Pulse Forward Current | Ifp | 600 | mA |
| Power Dissipation | Pd | 1160 | mW |
| Reverse Voltage | V r | 5 | V |
| Operating Temperature Range | T
opr |
-40~+85 | °C |
| Storage Temperature Range | T
stg |
-40~+85 | °C |
| Junction Temperature | T
j |
120 | °C |
| Soldering Temperature | Tsld | 230 °C or 260 °C for 10 sec | °C |
Characteristics1,2,3
| Parameter (If=65 mA, Tc=25°C) | Symbol | Value | Unit | |
| Forward Voltage | Minimum | Vf min | 2.5 | V |
| Typical | Vf typ | 2 .68 | ||
| Maximum | Vf max | 2.8 | ||
| Reverse Current (Vr=5 V) | I
r |
10 | uA | |
| Viewing Angle | 2θ1/2 | 120 | ° | |
| Thermal Resistance | Rth J-C | 9 | °C/W | |
| Electrostatic Discharge | VESD | 1000 | V | |
