Specialty Illumination SMD LEDs

Categories: ,

Description

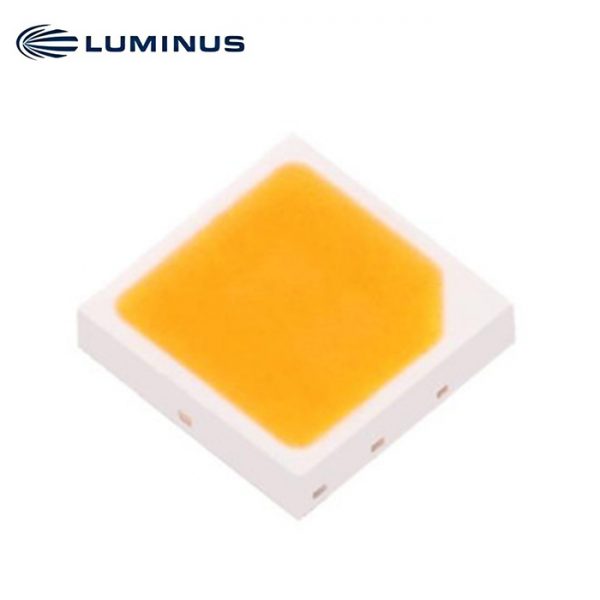

MP-3030-210H High-Performance Mid Power LED

Features
• High efficacy
• CRI Options: Minimum 70, 80, 90, 95
• Low thermal resistance
• Compatible with automatic placement equipment
• Compatible with infrared reflow solder process

Applications
• Replacement lamps
• Panel lighting
• Down lights
• Architectural lighting



Ordering Part Numbers

Minimum CRI Nominal CCT Luminous Flux Ordering Part Number
Minimum Flux

@150 mA (lm)

 Typical Flux

@150 mA (lm)

 Typical Flux

@65 mA (lm)
70 2200K 122 135 65 MP-3030-210H-22-70
80 114 122 58 MP-3030-210H-22-80
90 94 104 50 MP-3030-210H-22-90
70 2700K 139 148 71 MP-3030-210H-27-70
80 130 141 68 MP-3030-210H-27-80
90 107 120 57 MP-3030-210H-27-90
95 94 103 49 MP-3030-210H-27-95
70 3000K 148 156 75 MP-3030-210H-30-70
80 139 148 71 MP-3030-210H-30-80
90 114 126 60 MP-3030-210H-30-90
95 94 108 52 MP-3030-210H-30-95
70 3500K 148 160 77 MP-3030-210H-35-70
80 139 152 73 MP-3030-210H-35-80
90 114 128 62 MP-3030-210H-35-90
95 100 111 53 MP-3030-210H-35-95
70 4000K 156 165 79 MP-3030-210H-40-70
80 148 157 75 MP-3030-210H-40-80
90 122 133 64 MP-3030-210H-40-90
95 100 114 55 MP-3030-210H-40-95
70 5000K 156 165 79 MP-3030-210H-50-70
80 148 157 75 MP-3030-210H-50-80
90 122 133 64 MP-3030-210H-50-90
70 5700K 156 165 79 MP-3030-210H-57-70
80 148 157 75 MP-3030-210H-57-80
90 122 133 64 MP-3030-210H-57-90
95 100 114 55 MP-3030-210H-57-95
70 6500K 156 165 78 MP-3030-210H-65-70
80 148 157 74 MP-3030-210H-65-80
90 122 133 63 MP-3030-210H-65-90



Binning Structure

Each mid power product shipped will be labeled with its specific flux and voltage bins. Not all bins listed are available in all CCTs and CRIs.

Flux Bins

Bin Code Binning @ 150 mA, Tc= 25°C
Minimum Flux (lm) Maximum Flux (lm)
2A 94 100
2B 100 107
2C 107 114
2D 114 122
2E 122 130
2F 130 139
2G 139 148
2H 148 156
2J 156 164
2K 164 172



Forward Voltage Bins1

Voltage Bin Binning @ 150 mA, Tc= 25°C
Minimum Voltage (V) Maximum Voltage (V)
J 5.8 6.0
K 6.0 6.2
T 6.2 6.4



Binning Structure

Color Bins1

Color Code Center Radius Angle(°)
x y a b .
22M3 0.5065 0.4171 0.007500 0.004200 53.00
22M5 0.5065 0.4171 0.012500 0.007000 53.00
27M3 0.4582 0.4099 0.008100 0.004200 53.42
27M5 0.4582 0.4099 0.013500 0.007000 53.42
30M3 0.4342 0.4028 0.008340 0.004080 53.13
30M5 0.4342 0.4028 0.013900 0.006800 53.13
35M3 0.4080 0.3916 0.009270 0.004140 54.00
35M5 0.4080 0.3916 0.015450 0.006900 54.00
40M3 0.3825 0.3798 0.009390 0.004020 53.43
40M5 0.3825 0.3798 0.015650 0.006700 53.43
50M3 0.3451 0.3554 0.008220 0.003540 59.37
50M5 0.3451 0.3554 0.013700 0.005900 59.37
57M3 0.3290 0.3417 0.006705 0.00330 58.35
57M5 0.3290 0.3417 0.011175 0.005500 58.35
65M3 0.3130 0.3290 0.006690 0.002850 58.34
65M5 0.3130 0.3290 0.011150 0.004750 58.34



Absolute Maximum Ratings1,2

Parameter Symbol Values Unit
Forward Current If 240 mA
Pulse Forward Current Ifp 300 mA
Power Dissipation Pd 1536 mW
Reverse Voltage V r 5 V
Operating Temperature Range T

opr

 -40~+85 °C
Storage Temperature Range T

stg

 -40~+85 °C
Junction Temperature T

j

 125 °C
Soldering Temperature Tsld 230 °C or 260 °C for 10 sec °C



Characteristics

Parameter (If=150 mA, Tc=25°C) Symbol Value Unit
Forward Voltage Typical Vf typ 6.0
Maximum Vf max 6.4
Reverse Current (Vr=5 V) I

r

 10 uA
Viewing Angle 2θ1/2 110 °
Thermal Resistance Rth J-C 11 °C/W
Electrostatic Discharge VESD 1000 V
