Description

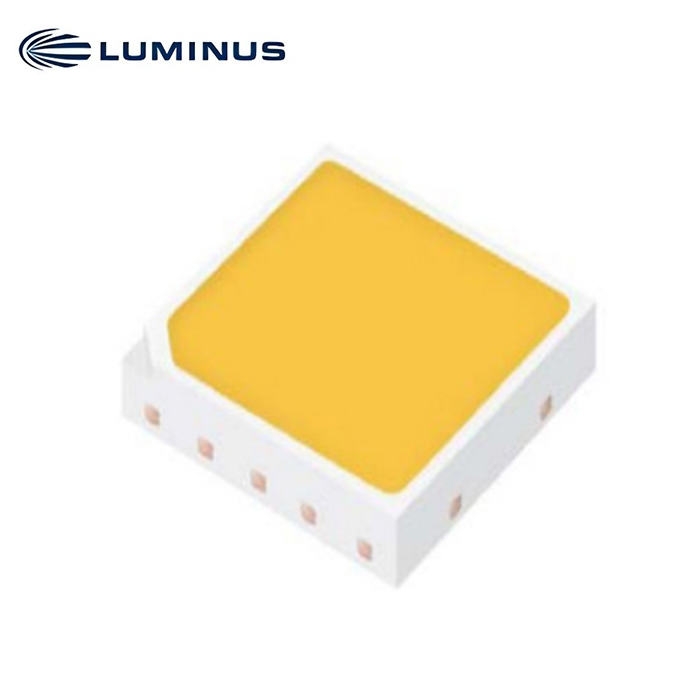

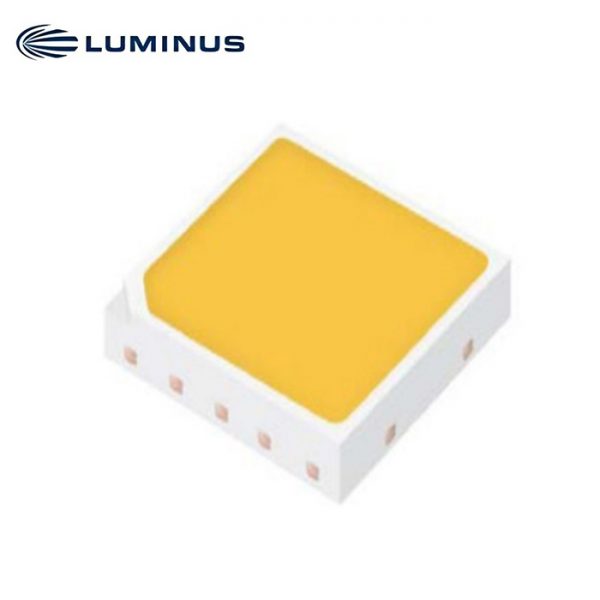

MP-5050-810E Mid Power LED
Features
• High efficacy
• CRI Options: Minimum 70, 80 and 90
• Low thermal resistance
• Compatible with automatic placement equipment
• Compatible with infrared reflow solder process
Applications
• Replacement lamps
• Down lights
• Panel lighting
• Architectural lighting
Ordering Part Numbers1
| Minimum CRI | CCT | Luminous Flux | Ordering Part Number | |
| Minimum Flux (lm) | Typical Flux (lm) | |||
| 70 | 2700K | 182 | 209 | MP-5050-810E -27-70 |
| 80 | 182 | 194 | MP-5050-810E -27-80 | |
| 90 | 156 | 167 | MP-5050-810E -27-90 | |
| 70 | 3000K | 200 | 221 | MP-5050-810E -30-70 |
| 80 | 182 | 205 | MP-5050-810E -30-80 | |
| 90 | 164 | 178 | MP-5050-810E -30-90 | |
| 70 | 4000K | 220 | 233 | MP-5050-810E -40-70 |
| 80 | 200 | 216 | MP-5050-810E -40-80 | |
| 90 | 172 | 186 | MP-5050-810E -40-90 | |
| 70 | 5000K | 220 | 233 | MP-5050-810E -50-70 |
| 80 | 200 | 215 | MP-5050-810E -50-80 | |
| 90 | 172 | 186 | MP-5050-810E -50-90 | |
| 70 | 5700K | 220 | 233 | MP-5050-810E -57-70 |
| 80 | 200 | 215 | MP-5050-810E -57-80 | |
| 90 | 172 | 186 | MP-5050-810E -57-90 | |
| 70 | 6500K | 220 | 230 | MP-5050-810E -65-70 |
| 80 | 200 | 211 | MP-5050-810E -65-80 | |
| 90 | 172 | 183 | MP-5050-810E -65-90 | |
Binning Structure
Each mid power product shipped will be labeled with its specific flux and voltage bins. Not all bins listed are available in all CCTs and CRIs.
Flux Bins
| Flux Bin | Binning @ 45 mA, Tc= 25°C | |
| Minimum Flux (lm) | Maximum Flux (lm) | |
| 2J | 156 | 164 |
| 2K | 164 | 172 |
| 2L | 172 | 182 |
| 2M | 182 | 200 |
| 2N | 200 | 220 |
| 2P | 220 | 240 |
| 2Q | 240 | 260 |
Forward Voltage Bins1
| Voltage Bin | Binning @ 45 mA, Tc= 25°C | |
| Minimum Voltage (V) | Maximum Voltage (V) | |
| 1Q | 20 | 21 |
| 1R | 21 | 22 |
| 1S | 22 | 23 |
Absolute Maximum Ratings
| Parameter | Symbol | Values | Unit |
| Forward Current | If | 240 | mA |
| Pulse Forward Current | Ifp | 300 | mA |
| Power Dissipation | Pd | 5520 | mW |
| Reverse Voltage | V r | 5 | V |
| Junction Temperature | T
j |
125 | °C |
| Operating Temperature Range | T
opr |
-40~+105 | °C |
| Storage Temperature Range | T
stg |
-40~+105 | °C |
| Soldering Temperature | Tsld | 230 °C or 260 °C for 10 sec | °C |
Characteristics1,2
| Parameter (If= 45 mA, Tc= 25°C) | Symbol | Value | Unit | |
| Forward Voltage | Minimum | Vf min | 21 | V |
| Typical | Vf typ | 22 | ||
| Maximum | Vf max | 23 | ||
| Reverse Current (Vr=5 V) | I
r |
10 | uA | |
| Viewing Angle | 2θ1/2 | 115 | ° | |
| Thermal Resistance | Rth J-S | 2 | °C/W | |
| Electrostatic Discharge | VESD | 1000 | V | |
