Description

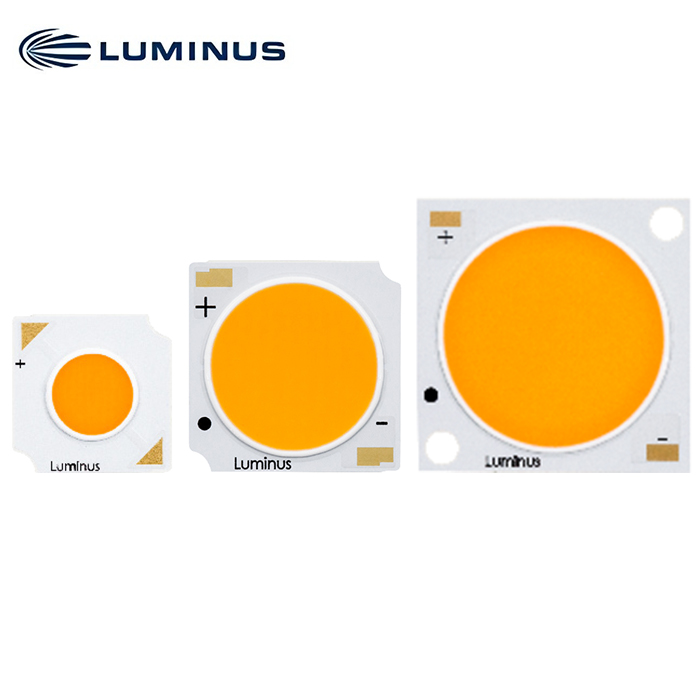

Perfect White COB LED Arrays
Luminus Chip-on-Board (COB) LED series offers a complete lighting class solution designed for high performance illumination applications The Perfect White LED series has been specially design for lighting where require transquility The selection covers a lumen range from less than 500lm to over 3,500lm Enhanced cyan color characterizes these specialty LEDs These breakthroughs allow illumination engineers and designers to develop beautifully lit spaces without sacrificing efficacy, brightness and overall quality.
Features
• Continuous spectrum with enhanced cyan rendering index
• Lumen range from less than 500 lm to over 3,500lm @ Tj = 85ºC
• Typical power range from 5W to 60W
• 3 SDCM color binning accuracy
• Excellent optical emission uniformity and color over angle consistency
• Exceptional long term color stability
• Package thermal conductivity more than the industry average
• Environmentally friendly: RoHS and REACH compliant
• UL Recognized, File # E465703
Applications
• Spotlights/Track Lights
• Architectural and Specialty
• Hospitality Lighting
• Downlights
• Shop Lighting
• Metal Halide Replacement
Perfect White Chromaticity Bins
The following tables describe the chromaticity bin center points, the orientation angle for the ellipse (θ °), and the maximum radii for the ellipses. The ANSI Bin is provided for reference.
| CCT | Center Point | Angle | 3-step Bin | ||
| CIEx | CIEy | θ (°) | a | b | |
| 3000K | 0.4252 | 0.3877 | 53.6 | 0.00834 | 0.00408 |
Perfect White Series Part Numbers
The following tables describe products with typical flux and minimum flux measured at typical currents and specified at 85ºC. The values at 25ºC are calculated and shown for reference only. All product is measured and specified at 85ºCjunction temperature.
| Output Flux (lm) | CRI
(min) |
LES Diameter
(mm) |
Typ. Cur-
rent (mA) |
Ordering Part Number | ||
| Typ. (85ºC) | Min. (85ºC) | Typ.
(calculated) (25ºC) |
3 SDCM | |||
| 450 | 420 | 485 | 90 | 6.3 | 300 | CXM-6-30-90-18-PC32-F4-3 |
| 1,155 | 1,075 | 1,365 | 90 | 9.6 | 360 | CXM-9-30-90-36-PC32-F4-3 |
| 1,445 | 1,330 | 1,680 | 90 | 11.7 | 450 | CXM-11-30-90-36-PC32-F4-3 |
| 2,310 | 2,105 | 2,680 | 90 | 14.3 | 720 | CXM-14-30-90-36-PC32-F4-3 |
| 3,685 | 3,430 | 3,975 | 90 | 22.0 | 1,050 | CLM-22-30-90-36-PC32-F4-3 |
CXM-6 Operating Characteristics1
Optical and Electrical Characteristics
| Parameter | Symbol | Minimum | Typical | Maximum | Unit |
| Forward Current2 | If | 300 | 450 | mA | |
| Forward Voltage3 | Vf | 15.5 | 17 | 18.5 | V |
| Power | 5.2 | 8.1 | W | ||
| Operating Case Temperature | T c | 105 | ºC | ||
| Light Emitting Surface Diameter | LES | 6.3 | mm | ||
| Thermal Resistance (junction-to-case) | Θjc | 0.96 | ºC/W | ||
| Junction Temperature | Tj | 140 | ºC | ||
| Viewing Angle | 120 | Degree |
CXM-9 Operating Characteristics1
Optical and Electrical Characteristics
| Parameter | Symbol | Minimum | Typical | Maximum | Unit |
| Forward Current2 | If | 360 | 540 | mA | |
| Forward Voltage3 | Vf | 31 | 33.8 | 37 | V |
| Power | 12.2 | 19 | W | ||
| Operating Case Temperature | T c | 105 | ºC | ||
| Light Emitting Surface Diameter | LES | 9.6 | mm | ||
| Thermal Resistance (junction-to-case) | Θjc | 0.65 | ºC/W | ||
| Junction Temperature | Tj | 140 | ºC | ||
| Viewing Angle | 120 | Degree |
| CXM-11 Operating Characteristics1 | |||||
| Optical and Electrical Characteristics | |||||
| Parameter | Symbol | Minimum | Typical | Maximum | Unit |
| Forward Current2 | If | 450 | 675 | mA | |
| Forward Voltage3 | Vf | 31 | 33.8 | 37 | V |
| Power | 15.2 | 24 | W | ||
| Operating Case Temperature | T c | 105 | ºC | ||
| Light Emitting Surface Diameter | LES | 11.7 | mm | ||
| Thermal Resistance (junction-to-case) | Θjc | 0.31 | ºC/W | ||
| Junction Temperature | Tj | 140 | ºC | ||
| Viewing Angle | 120 | Degree | |||
CXM-14 Operating Characteristics1
Optical and Electrical Characteristics
| Parameter | Symbol | Minimum | Typical | Maximum | Unit |
| Forward Current2 | If | 720 | 1,080 | mA | |
| Forward Voltage3 | Vf | 31 | 34 | 37 | V |
| Power | 24.5 | 38 | W | ||
| Operating Case Temperature | T c | 105 | ºC | ||
| Light Emitting Surface Diameter | LES | 14.3 | mm | ||
| Thermal Resisitance (junction-to-case) | Θjc | 0.27 | ºC/W | ||
| Junction Temperature | Tj | 140 | ºC | ||
| Viewing Angle | 120 | Degree |
CLM-22 Operating Characteristics1
Optical and Electrical Characteristics
| Parameter | Symbol | Minimum | Typical | Maximum | Unit |
| Forward Current2 | If | 1,050 | 1,575 | mA | |
| Forward Voltage3 | Vf | 31 | 34.5 | 38 | V |
| Power | 36.2 | 56.5 | W | ||
| Operating Case Temperature | T c | 105 | ºC | ||
| Light Emitting Surface Diameter | LES | 22.0 | mm | ||
| Thermal Resisitance (junction-to-case) | Θjc | 0.19 | ºC/W | ||
| Junction Temperature | Tj | 140 | ºC | ||
| Viewing Angle | 120 | Degree |
