Pure White Targeted COB Arrays Below the Black Body Locus (BBL)

Categories: ,

Description

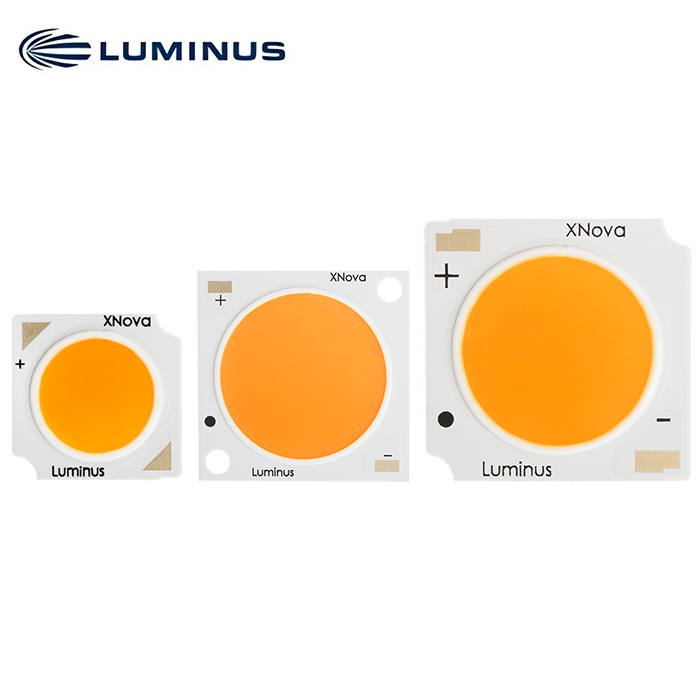

Sensus™ LED Series

Luminus Chip-on-Board (COB) LED series offers a complete lighting class solution designed for high performance illumination applications The Sensus LED series has been specially design for retail shop ligthing where enhanced red coloring is a preferred lighting standard The selection covers a wide lumen range from less than 300lm to over 3,000lm, and is focused on the major market color and CRI of 3000K and 80 CRI These innovative breakthroughs allow illumination engineers and designers to develop lighting solutions with maximum efficacy, brightness and overall quality.

Features
• Matching the human perception of “Pure white” light
• Designed to provide the look and feel of ceramic metal halide lights
• Wide product range from 300lm to over 7,500lm
• 3000K and 3500K, 80 CRI and 90 CRI
• 3 SDCM color binning accuracy
• Excellent optical uniformity and color over angle consistency
• Exceptional long term color stability
• Superior thermal conductivity for uniform heat spreading
• Environmentally friendly: RoHS and REACh compliant
• UL Recognized, File # E465703

Applications
• Retail Shop Lighting
• Spotlights/Track Lights
• CMH replacement LED lamps
• Halogen replacement LED lamps
• Hospitality Lighting
• Architectural and Specialty



Color Temperature, CRI and R9 Values

Color Temperatures XX Value CRI R9
3000K, 3500K 80 >80 >0
90 >90 >50



Sensus™ LED Series Part Numbers (Typical)

The following tables describe products with typical flux and minimum flux measured at typical currents and specified at 85ºC. The values at 25ºC are calculated and shown for reference only. All products are measured and specified at 85ºCjunction temperature.

Output Flux (lm) Ordering Part Number
Typ. (85ºC) Min. (85ºC) Typ.

(calculated)

(25ºC)

 CRI Typ.

Current

(mA)

 3-step MacAdam Ellipse
445 420 495 3000K 80 120 CXM-6-30-80-36-AA02-F2-3
585 555 645 3000K 80 160 CHM-6-30-80-36-AA02-F2-3
615 585 685 3000K 80 160 CXM-7-30-80-36-AA02-F2-3
525 495 580 3000K 90 160 CXM-7-30-90-36-AA02-F2-3
625 590 695 3000K 80 160 CLM-9-30-80-36-AC02-F2-3
CLM-9-30-80-36-AA02-F2-3
930 885 1,025 3000K 80 240 CXM-9-30-80-36-AC02-F2-3
CXM-9-30-80-36-AA02-F2-3
960 910 1,065 3500K CXM-9-35-80-36-AC02-F2-3
CXM-9-35-80-36-AA02-F2-3
780 750 870 3000K

90



240

 CXM-9-30-90-36-AC02-F2-3
CXM-9-30-90-36-AA02-F2-3
825 785 910 3500K CXM-9-35-90-36-AC02-F2-3
CXM-9-35-90-36-AA02-F2-3
1,310 1,245 1,455 3000K 80 360 CHM-9-30-80-36-AC02-F2-3
CHM-9-30-80-36-AA02-F2-3
1,350 1,280 1,501 3500K CHM-9-35-80-36-AC02-F2-3
CHM-9-35-80-36-AA02-F2-3
1,110 1,050 1,230 3000K

90



360

 CHM-9-30-90-36-AC02-F2-3
CHM-9-30-90-36-AA02-F2-3
1,160 1,100 1,285 3500K CHM-9-35-90-36-AC02-F2-3
CHM-9-35-90-36-AA02-F2-3
1,865 1,770 2,050 3000K 80 480 CXM-11-30-80-36-AC02-F2-3
CXM-11-30-80-36-AB02-F2-3
1,580 1,472 1,745 3000K 90 CXM-11-30-90-36-AC02-F2-3
CXM-11-30-90-36-AB02-F2-3



Sensus™ LED Series Part Numbers (Typical)

The following tables describe products with typical flux and minimum flux measured at typical currents and specified at 85ºC. The values at 25ºC are calculated and shown for reference only. All product is measured and specified at 85ºC junction temperature. Luminus may choose to ship a smaller chromatiticy bin in an order for a larger.

Output Flux (lm) Ordering Part Number
Typ. (85ºC) Min. (85ºC) Typ.

(calculated)

(25ºC)

 CCT CRI Typ.

Current

(mA)

 3-step MacAdam Ellipse
1,930 1,830 2,135 3000K 80 480 CXM-14-30-80-36-AC02-F2-3
CXM-14-30-80-36-AA02-F2-3
1,985 1,885 1,105 3500K CXM-14-35-80-36-AC02-F2-3
CXM-14-35-80-36-AA02-F2-3
1,635 1,550 1,810 3000K

90



480

 CXM-14-30-90-36-AC02-F2-3
CXM-14-30-90-36-AA02-F2-3
1,710 1,625 1,900 3500K CXM-14-35-90-36-AC02-F2-3
CXM-14-35-90-36-AA02-F2-3
2,660 2,525 2,925 3000K

80



720

 CHM-14-30-80-36-AC02-F2-3
CHM-14-30-80-36-AA02-F2-3
2,755 2,615 3,030 3500K CHM-14-35-80-36-AC02-F2-3
CHM-14-35-80-36-AA02-F2-3
2,265 2,150 2,495 3000K 90 720 CHM-14-30-90-36-AC02-F2-3
CHM-14-30-90-36-AA02-F2-3
2,345 2,225 2,580 3500K CHM-14-35-90-36-AC02-F2-3
CHM-14-35-90-36-AA02-F2-3
3,210 3,050 3,565

3000K

 80

800

 CXM-18-30-80-36-AA02-F2-3
2,735 2,600 3,030 90 CXM-18-30-90-36-AA02-F2-3
5,130 4,870 5,700

3000K

 80 1,280 CXM-22-30-80-36-AC02-F2-3
4,360 4,140 4,800 90 CXM-22-30-90-36-AC02-F2-3
7,090 6,735 7,800 3000K 80 1,920 CHM-22-30-80-36-AC02-F2-3
6,050 5,745 6,650 90 CHM-22-30-90-36-AC02-F2-3



CXM-6 Operating Characteristics1

Optical and Electrical Characteristics

Parameter Symbol Minimum Typical Maximum Unit
Forward Current (36V)2 If 120 355 mA
Forward Voltage3 Vf 33.5 35 37.5 V
Power 4.3 13 W
Operating Case Temperature4 Tc 105 ºC
Light Emitting Surface Diameter LES 6.3 mm
Thermal Resisitance (junction-to-case) Θjc 2.33 ºC/W
Junction Temperature Tj 140 ºC
Viewing Angle 120 Degree



CXM-7 Operating Characteristics1

Optical and Electrical Characteristics

Parameter Symbol Minimum Typical Maximum Unit
Forward Current (36V)2 If 160 360 mA
Forward Voltage3 Vf 33.5 35 37.5 V
Power 5.6 13.5 W
Operating Case Temperature4 Tc 105 ºC
Light Emitting Surface Diameter LES 7.5 mm
Thermal Resisitance (junction-to-case) Θjc 1.9 ºC/W
Junction Temperature Tj 140 ºC
Viewing Angle 120 Degree



CHM-6 Operating Characteristics1

Optical and Electrical Characteristics

Parameter Symbol Minimum Typical Maximum Unit
Forward Current (36V)2 If 160 360 mA
Forward Voltage3 Vf 33.5 35 37.5 V
Power 5.6 13.5 W
Operating Case Temperature4 Tc 105 ºC
Light Emitting Surface Diameter LES 6.3 mm
Thermal Resisitance (junction-to-case) Θjc 1.55 ºC/W
Junction Temperature Tj 140 ºC
Viewing Angle 120 Degree



CLM-9 Operating Characteristics1

Optical and Electrical Characteristics

Parameter Symbol Minimum Typical Maximum Unit
Forward Current2 If 160 360 mA
Forward Voltage3 Vf 33.5 35 37.5 V
Power 5.6 13.5 W
Operating Case Temperature4 Tc 105 ºC
Light Emitting Surface Diameter LES 9.0 mm
Thermal Resisitance (junction-to-case) Θjc 1.55 ºC/W
Junction Temperature Tj 140 ºC
Viewing Angle 120 Degree



CXM-9 Operating Characteristics1

Optical and Electrical Characteristics

Parameter Symbol Minimum Typical Maximum Unit
Forward Current2 If 240 550 mA
Forward Voltage3 Vf 33.5 35 37.5 V
Power 8.6 21 W
Operating Case Temperature4 Tc 100 ºC
Light Emitting Surface Diameter LES 9 mm
Thermal Resisitance (junction-to-case) Θjc 1.51 ºC/W
Junction Temperature Tj 140 ºC
Viewing Angle 120 Degree



CHM-9 Operating Characteristics1

Optical and Electrical Characteristics

Parameter Symbol Minimum Typical Maximum Unit
Forward Current2 If 360 550 mA
Forward Voltage3 Vf 32 35 37.5 V
Power 12.6 21 W
Operating Case Temperature4 Tc 105 ºC
Light Emitting Surface Diameter LES 9 mm
Thermal Resisitance (junction-to-case) Θjc 0.85 ºC/W
Junction Temperature Tj 140 ºC
Viewing Angle 120 Degree
CXM-11 Operating Characteristics1
Optical and Electrical Characteristics
Parameter Symbol Minimum Typical Maximum Unit
Forward Current2 If 480 960 mA
Forward Voltage3 Vf 33.5 35 37.5 V
Power 16.8 34 W
Operating Case Temperature4 T c 105 ºC
Light Emitting Surface Diameter LES 11 mm
Thermal Resisitance (junction-to-case) Θjc N/A ºC/W
Junction Temperature Tj 140 ºC
Viewing Angle 120 Degree



CXM-14 Operating Characteristics1

Optical and Electrical Characteristics

Parameter Symbol Minimum Typical Maximum Unit
Forward Current2 If 480 1,090 mA
Forward Voltage3 Vf 33.5 35 37.5 V
Power 17.3 41 W
Operating Case Temperature T c 105 ºC
Light Emitting Surface Diameter LES 13.5 mm
Thermal Resisitance (junction-to-case) Θjc 0.87 ºC/W
Junction Temperature Tj 140 ºC
Viewing Angle 120 Degree



CHM-14 Operating Characteristics1

Optical and Electrical Characteristics

Parameter Symbol Minimum Typical Maximum Unit
Forward Current2 If 720 1,090 mA
Forward Voltage3 Vf 32 35 37.5 V
Power 25.2 41 W
Operating Case Temperature T c 105 ºC
Light Emitting Surface Diameter LES 13.5 mm
Thermal Resisitance (junction-to-case) Θjc 0.46 ºC/W
Junction Temperature Tj 140 ºC
Viewing Angle 120 Degree



CXM-18 Operating Characteristics1

Optical and Electrical Characteristics

Parameter Symbol Minimum Typical Maximum Unit
Forward Current2 If 800 1,800 mA
Forward Voltage3 Vf 33.5 35 37.5 V
Power 29 67.5 W
Operating Case Temperature T c 105 ºC
Light Emitting Surface Diameter LES 17.5 mm
Thermal Resisitance (junction-to-case) Θjc 0.56 ºC/W
Junction Temperature Tj 140 ºC
Viewing Angle 120 Degree



CXM-22 Operating Characteristics1

Optical and Electrical Characteristics

Parameter Symbol Minimum Typical Maximum Unit
Forward Current2 If 1,280 2,900 mA
Forward Voltage3 Vf 33.5 35 37.5 V
Power 45 109 W
Operating Case Temperature4 T c 105 ºC
Light Emitting Surface Diameter LES 22 mm
Thermal Resisitance (junction-to-case) Θjc 0.37 ºC/W
Junction Temperature Tj 140 ºC
Viewing Angle 120 Degree



CHM-22 Operating Characteristics1

Optical and Electrical Characteristics

Parameter Symbol Minimum Typical Maximum Unit
Forward Current2 If 1,920 2,900 mA
Forward Voltage3 Vf 32 35 37.5 V
Power 67 109 W
Operating Case Temperature4 T c 105 ºC
Light Emitting Surface Diameter LES 22 mm
Thermal Resisitance (junction-to-case) Θjc 0.2 ºC/W
Junction Temperature Tj 140 ºC
Viewing Angle 120 Degree
