Description
APPLICATIONS
- Human Centric Lighting
- Natural Daylight Lighting
- Full Spectrum Lighting
FEATURES
- Uniform spectral response (no cyan dip) across the blue, green and into the red color spectrum
- No harmful UV or violet emissions
- Beautiful pure white light with enhanced cyan color rendering
Highlights
- Power ranges from MR16 form factor (5 W) to over 75 W fixture powers
- A single CCT and CRI value making color choice easier
- True whites and extremely high contrast without the “pink” artifacts typical of below the black body locus products

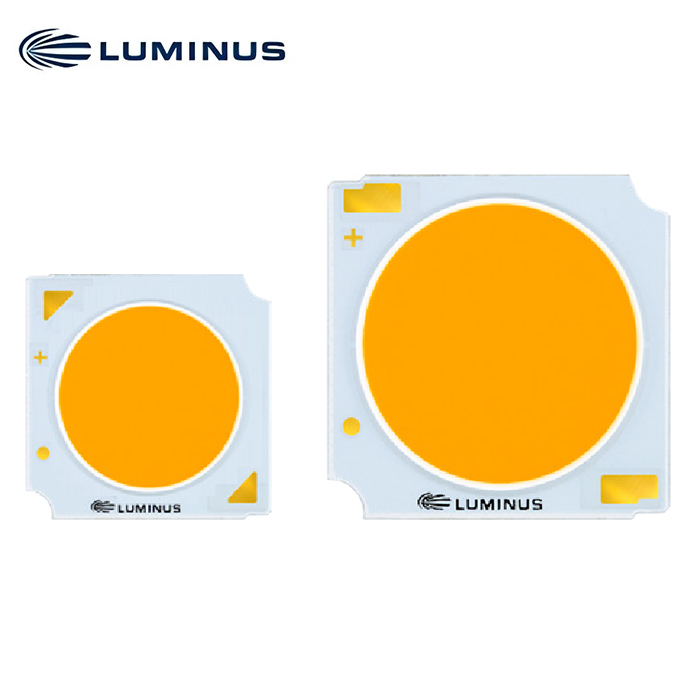

| Product Image | Product Family | LES (mm) | Substrate Size (mm) | Typical Power (W) | Perfect White Flux @ 3000K 90CRI @ 85oC (lm) | Smooth White Flux @ 3000K @ 85C (lm) | Salud Flux @ 3000K @ 85C (lm) |
|---|---|---|---|---|---|---|---|
 |
CXM-6 | 6.3 | 13.5 * 13.5 | 5.2 | 420 | 530 | 530 |
 |
CXM-9 | 9.6 | 13.5 * 13.5 | 12.2 | 1,075 | 1285 | 1310 |
 |
CXM-11 | 11.7 | 19 * 19 | 15.2 | 1,330 | 1680 | 1630 |
 |
CXM-14 | 14.3 | 19 * 19 | 24.5 | 2,105 | 2665 | 2590 |
|
CLM-22 | 22 | 28 * 28 | 36.2 | 3,430 | 4020 | 4235 |
