Description

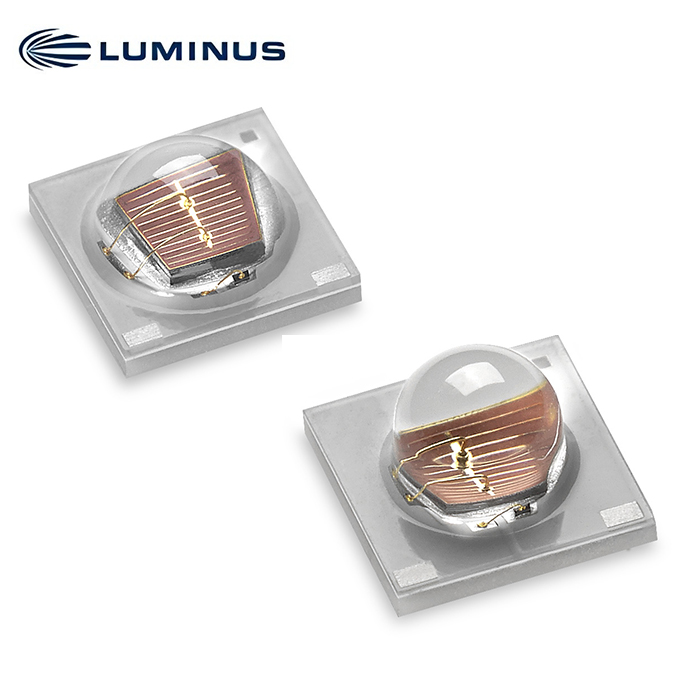

SST-10-FR Far Red LED
Features
• High Power Far Red LED with Peak Wavelength of 730nm
• Wall-Plug Efficiency: typ. 42% @350mA
• 90 or 130° viewing angle at 50% Iv
• Low Thermal Resistance
• Built-in ESD Protection
• RoHS and REACh compliant
Applications
• Horticulture / Growlights
• Machine Vision
• Surveillance Systems / CCTV
SST-10 Binning Structure
SST-10 Far Red LEDs are tested for luminous flux and chromaticity at a drive current of 350mA – 20ms single pulse and placed into one of the following luminous flux (FF) and chromaticity (WW) bins:
Flux Bins – Test condition=350mA, 250C, 20ms pulse
| Flux Bin (FF) | Minimum Flux (mW) | Maximum Flux (mW) |
| G | 270 | 310 |
| H | 310 | 350 |
| J | 350 | 390 |
Wavelength Bins – Test condition=350mA, 250C, 20ms pulse
| Chromaticity Bin (WW) | Minimum Wavelength (nm) | Maximum Wavelength (nm) |
| F1 | 720 | 725 |
| F2 | 725 | 730 |
| F3 | 730 | 735 |
| F4 | 735 | 740 |
| F5 | 740 | 745 |
| F6 | 745 | 750 |
Ordering Information
| Products | Ordering Part Number | Description |
| SST-10-FR-B90 | SST-10-FR-B90-xx123 | High Power 1-mm2 Far Red LED in a 3535 surface mount package and a 90-degree lens |
| SST-10-FR-B130 | SST-10-FR-B130-xx123 | High Power 1-mm2 Far Red LED in a 3535 surface mount package and a 130-degree lens |
SST-10 Far Red Bin Kit Order Codes
| Color | Luminous Flux | Chromaticity Bins | Kit Number | |
| Bin Kit Flux
Code |
Min. Flux | |||
| Far Red | G | 270 | F1,F2,F3,F4,F5,F6 | G730 |
Optical and Electrical Characteristics at 350mA1
| Parameter | Symbol | Minimum | Typical | Maximum | Unit |
| Forward Current2 | If | 350 | 1,500 | mA | |
| Output Power | Φ
r |
310 | mW | ||
| Forward Voltage | Vf | 1.8 | 2.1 | 2.6 | V |
| Wall-Plug Efficiency | WPE | 42 | % | ||
| Viewing Angle | 2 Ø1/2 | 90 or 130 | degrees | ||
| Peak Wavelength | λP | 720 | 730 | 750 | nm |
| FWHM | Dλ1/2 | 29 | 31 | 33 | nm |
| Thermal Resistance (Electrical) | RTH | 5.3 | °C/W |
Absolute Maximum Ratings2
| Parameter | Symbol | Rating | Unit |
| Forward Current3,4 | I | 1.5 | A |
| Power Dissipation | Pd | 3.0 | W |
| Reverse Voltage | Vr | 5 | V |
| Storage Temperature | TsTG | -40~100 | °C |
| Junction Temperature | TJ | 115 ºC | °C |
| Soldering Temperature | Tsld | JEDEC 020, 260 ºC | |
| ESD Sensitivity (HBM) | Vb | 6000 | V |
