Description

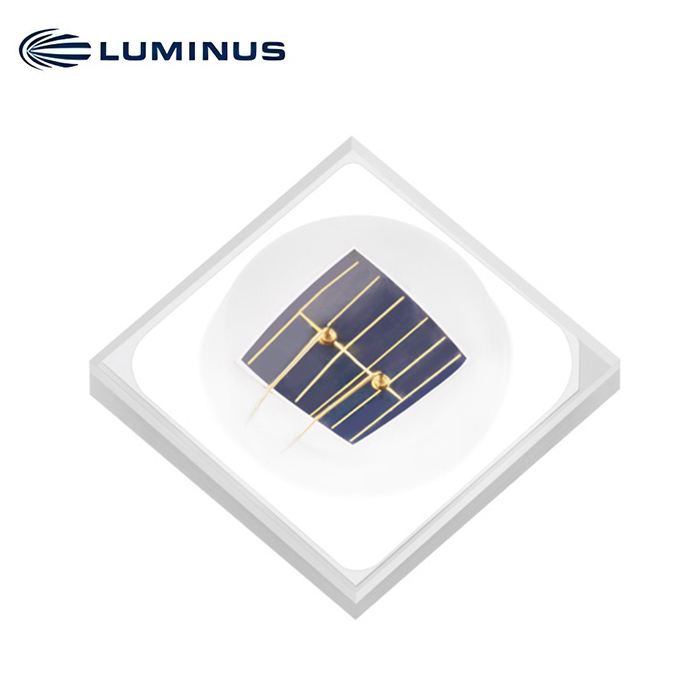

SST-10-IR Surface Mount Infrared LED
Features
• High power infrared LED
• Built-in ESD protection.
• Low thermal resistance.
• Suitable for all SMT assembly methods.
Applications
• Surveillance Systems / CCTV
• License Plate Scanning
• Automotive Sensing
• Machine Vision
• Night Vision
Ordering Part Numbers
| Peak
Wavelength |
Radiometric Flux | Lens Angle | Ordering Part Number | |
| Minimum Flux Bin1 | Minimum Flux² | |||
| 850 nm | K | 265 mW | 90 ° | SST-10-IR-B90-K850-00 |
| 130 ° | SST-10-IR-B130-K850-00 | |||
| L | 295 mW | 90 ° | SST-10-IR-B90-L850-00 | |
| 130 ° | SST-10-IR-B130-L850-00 | |||
| 940 nm | K | 265 mW | 90 ° | SST-10-IR-B90-K940-00 |
| 130 ° | SST-10-IR-B130-K940-00 | |||
Radiometric Flux Bins1,2
| Flux Bin | Binning @ 350 mA, Tj = 25°C | |
| Minimum Flux (mW) | Maximum Flux (mW) | |
| K | 265 | 295 |
| L | 295 | 325 |
| M | 325 | 355 |
| N | 355 | 385 |
| P | 385 | 415 |
Wavelength Bins2,3
| Wavelength Bin | Binning @ 350 mA, Tj = 25°C | |
| Minimum Peak Wavelength (nm) | Maximum Peak Wavelength (nm) | |
| 850 | 840 | 870 |
| 940 | 925 | 955 |
Forward Voltage Bins2,3
| Voltage Bin | Binning @ 350 mA, Tj = 25°C | |
| Minimum Voltage (V) | Maximum Voltage (V) | |
| V1 | 1.2 | 1.4 |
| V2 | 1.4 | 1.6 |
| V3 | 1.6 | 1.8 |
| V4 | 1.8 | 2.0 |
Characteristics1
| Parameter (If=350 mA, Tj=25°C) | Symbol | Value | Unit | ||
| 850nm | 940nm | ||||
| Forward Current | If | 350 | mA | ||
| Forward Voltage | Minimum | Vf min | 1.2 | 1.2 | V |
| Typical | Vf typ | 1.5 | 1.4 | ||
| Maximum | Vf max | 2.0 | 2.0 | ||
| Viewing Angle | B90 | 2 Ø1/2 | 90 | ° | |
| B130 | 130 | ||||
| Typical Output Power | B90 | φv | 360 | mW | |
| B130 | 370 | ||||
| Radiant Intensity at 350 mA, t = 20ms | B90 | fe typ | 200 | mW/Str | |
| B130 | 125 | ||||
| Typical Peak Wavelength | λp | 850 | 940 | nm | |
| FWHM | Δλ1/2 | 30 | |||
| Electrical Thermal Resistance (junction to case)2 | Rth JC elec | 3.5 | °C/W | ||
